SPEC® CINT2006 Result

NTT System S. A.

NTT Tytan 2206I (Intel Xeon E5410)

Hardware
CPU Name:	Intel Xeon E5410
CPU Characteristics:	2.33 GHz, 2x6 MB P2 shared, 1333 MHz System Bus
CPU MHz:	2333
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4 x 4GB DDR2-667 FBDIMM)
Disk Subsystem:	147 GB SAS, 1000RPM
Other Hardware:	None

Software
Operating System:	SuSe Linux Enterprise Server 10 SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

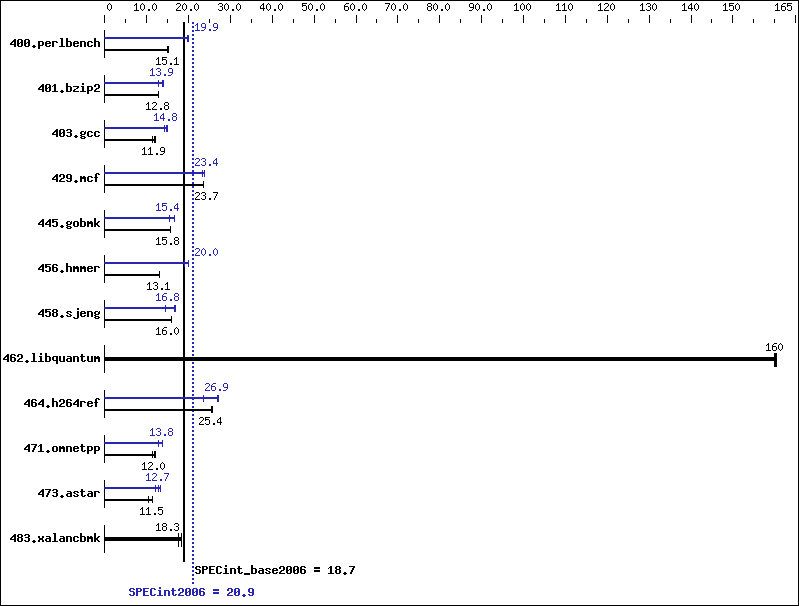

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	647	15.1	646	15.1	646	15.1	492	19.9	491	19.9	491	19.9
401.bzip2	752	12.8	753	12.8	754	12.8	696	13.9	756	12.8	693	13.9
403.gcc	668	12.0	677	11.9	702	11.5	543	14.8	540	14.9	567	14.2
429.mcf	385	23.7	386	23.6	385	23.7	390	23.4	391	23.3	384	23.7
445.gobmk	665	15.8	665	15.8	665	15.8	680	15.4	631	16.6	681	15.4
456.hmmer	712	13.1	712	13.1	712	13.1	466	20.0	489	19.1	467	20.0
458.sjeng	758	16.0	757	16.0	761	15.9	829	14.6	721	16.8	721	16.8
462.libquantum	130	160	129	160	129	160	130	160	129	160	129	160
464.h264ref	863	25.6	870	25.4	870	25.4	821	26.9	813	27.2	935	23.7
471.omnetpp	550	11.4	521	12.0	520	12.0	453	13.8	483	13.0	453	13.8
473.astar	610	11.5	673	10.4	610	11.5	551	12.7	531	13.2	581	12.1
483.xalancbmk	377	18.3	377	18.3	394	17.5	377	18.3	377	18.3	394	17.5

 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 200M

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/066/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/066/bin/intel64/icc

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4
462.libquantum:	basepeak = yes
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
