SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/B140a-T
(Intel Xeon E7220)

CPU2006 license: 9006 Test date: Apr-2009
Test sponsor: NEC Corporation Hardware Availability: Feb-2009
Tested by: NEC Corporation Software Availability: Nov-2008

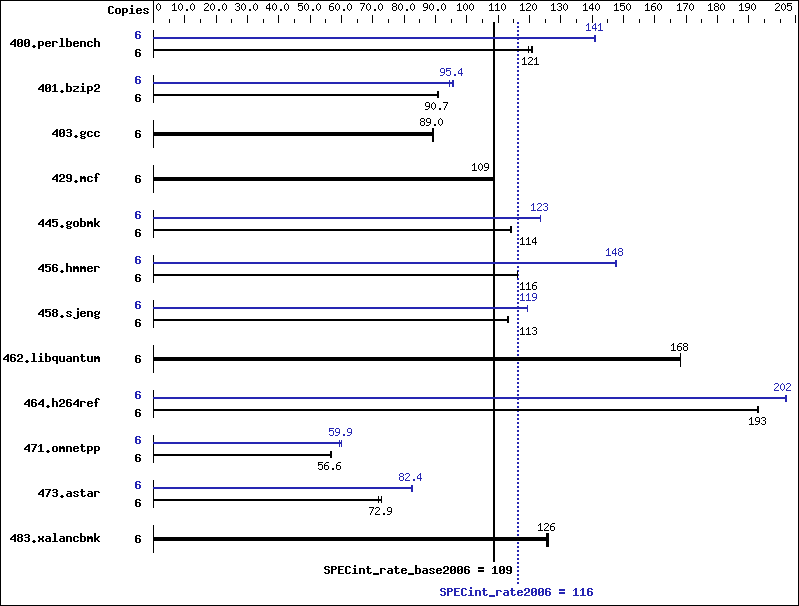

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7220
CPU Characteristics: 1066 MHz system bus
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 6 cores, 3 chips, 2 cores/chip
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x146.5 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ Compiler 11.0 for Linux
Build 20081105 Package ID: l_cproc_p_11.0.074
Auto Parallel: No
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 6 490 120   485 121   485 121   6 416 141   416 141   415 141
401.bzip2 6 639 90.6 636 91.1 638 90.7 6 607 95.4 604 95.9 613 94.4
403.gcc 6 543 89.0 541 89.3 543 88.9 6 543 89.0 541 89.3 543 88.9
429.mcf 6 505 108   504 109   504 109   6 505 108   504 109   504 109
445.gobmk 6 552 114   551 114   552 114   6 510 123   510 123   510 123
456.hmmer 6 482 116   482 116   482 116   6 380 148   379 148   380 147
458.sjeng 6 641 113   642 113   643 113   6 608 119   609 119   608 119
462.libquantum 6 740 168   739 168   739 168   6 740 168   739 168   739 168
464.h264ref 6 688 193   688 193   689 193   6 658 202   658 202   657 202
471.omnetpp 6 661 56.8 663 56.6 664 56.5 6 626 59.9 626 59.9 630 59.5
473.astar 6 578 72.9 587 71.7 578 72.9 6 511 82.4 509 82.8 511 82.4
483.xalancbmk 6 330 125   329 126   329 126   6 330 125   329 126   329 126

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

Bios settings:
Hardware Prefetcher:              Enabled
Adjacent Cache Line Prefetch:    Disabled
FSB High Bandwidth Optimization: Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSSE3   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -opt-prefetch

C++ benchmarks:

 -xSSSE3   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/074/bin/intel64/icc   -L/opt/intel/Compiler/11.0/074/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/074/ipp/em64t/include
456.hmmer:  /opt/intel/Compiler/11.0/074/bin/intel64/icc   -L/opt/intel/Compiler/11.0/074/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/074/ipp/em64t/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSSE3   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -opt-prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSSE3   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -ansi-alias
403.gcc:  basepeak = yes
429.mcf:  basepeak = yes
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSSE3   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSSE3   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSSE3   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSSE3   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSSE3   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSSE3   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revE.html,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revE.xml,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 00:50:27 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 5 May 2009.
