SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade X6275 (Intel Xeon X5570 2.93GHz)

SPECfp®2006 = 50.2

CPU2006 license: 6 Test date: Mar-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

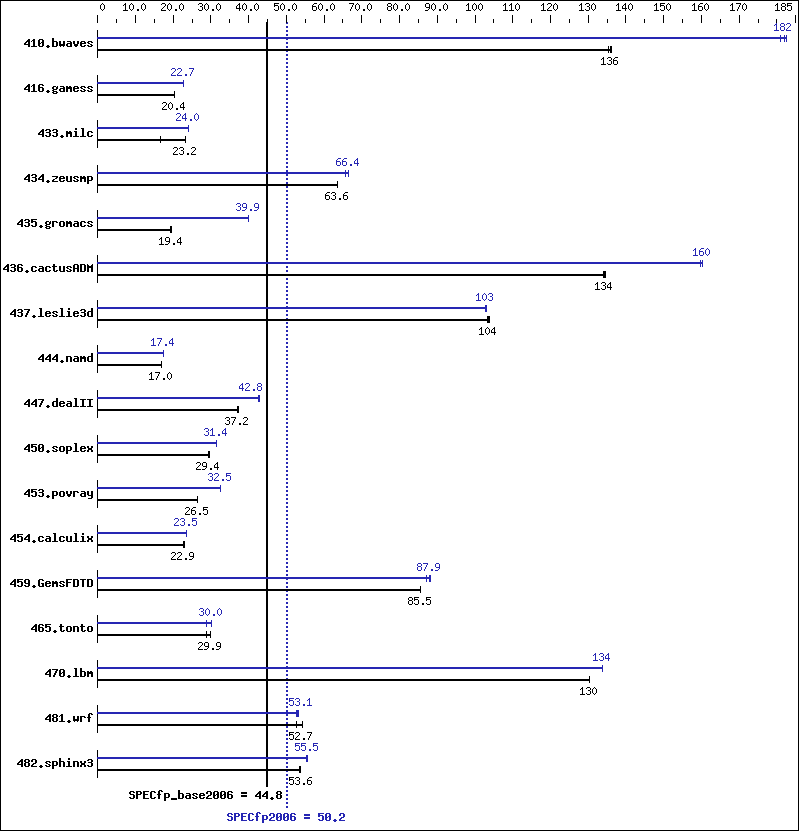

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB DDR3-1333)
Disk Subsystem: 1 x 24 GB, SAS, Sun FlashDisk
Other Hardware: None
Software
Operating System: OpenSolaris 2008.11
Compiler: Sun Studio 12 Update 1
(backend build 20090309)
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64
Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 100   135   99.9 136   100   136   74.7 182   74.4 183   75.0 181
416.gamess 959   20.4 959   20.4 958   20.4 863   22.7 863   22.7 861   22.7
433.milc 396   23.2 396   23.2 553   16.6 382   24.0 380   24.1 382   24.0
434.zeusmp 143   63.6 143   63.6 143   63.4 137   66.4 137   66.5 138   65.8
435.gromacs 368   19.4 367   19.4 368   19.4 179   40.0 179   39.9 179   39.9
436.cactusADM 89.1 134   88.9 134   88.8 135   74.8 160   74.5 160   74.5 160
437.leslie3d 90.6 104   90.8 104   91.0 103   91.4 103   91.3 103   91.4 103
444.namd 471   17.0 471   17.0 471   17.0 461   17.4 460   17.4 461   17.4
447.dealII 308   37.2 307   37.2 308   37.2 268   42.7 267   42.8 267   42.8
450.soplex 284   29.3 283   29.5 284   29.4 266   31.4 266   31.4 266   31.4
453.povray 201   26.5 201   26.5 201   26.5 164   32.4 163   32.5 164   32.5
454.calculix 361   22.9 361   22.9 361   22.8 350   23.5 351   23.5 351   23.5
459.GemsFDTD 124   85.5 124   85.5 124   85.5 122   87.1 121   87.9 120   88.1
465.tonto 329   29.9 342   28.8 329   29.9 327   30.1 340   28.9 328   30.0
470.lbm 105   130   105   130   105   130   103   134   103   134   103   134
481.wrf 212   52.7 206   54.2 212   52.7 212   52.6 210   53.1 210   53.1
482.sphinx3 364   53.6 364   53.6 363   53.7 352   55.4 351   55.5 351   55.5

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s 131072  (shell): increases stack
 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1
    set zfs:zfs_arc_max = 0x10000000

Platform Notes

   Default BIOS settings used except:
   Hyper-Threading Technology set to Enabled,
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "8"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"
447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xvector=simd   -xautopar   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M
470.lbm:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -lmvec
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xautopar   -xreduction

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=8   -library=stlport4
447.dealII:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -xdepend   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -fast   -xipo=2   -xpagesize=2M   -xrestrict   -xalias_level=simple   -xdepend   -xprefetch=no%auto   -library=stlport4
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch=no%auto   -xautopar   -xreduction
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -qoption iropt -Ainline:cp=19   -qoption iropt -Ainline:rs=50   -qoption iropt -Ainline:irs=30
434.zeusmp:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -lumem
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xautopar   -xreduction
465.tonto:  -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -stackvar   -xreduction   -xprefetch=no%auto   -xvector=lib   -xalias   -xdepend

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -fsimple=2   -Qoption ube -fsimple=3   -xprefetch=no%auto   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xvector=simd   -xautopar   -W2,-Aparallel:nthreads=16   -Qoption iropt -Aparallel:nthreads=16
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=lib,simd   -xprefetch=no%auto   -xautopar   -xreduction

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 01:55:02 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 28 April 2009.
