SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4170 (Intel Xeon X5570 2.93GHz)

SPECfp®2006 = 48.9

CPU2006 license: 6 Test date: Apr-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

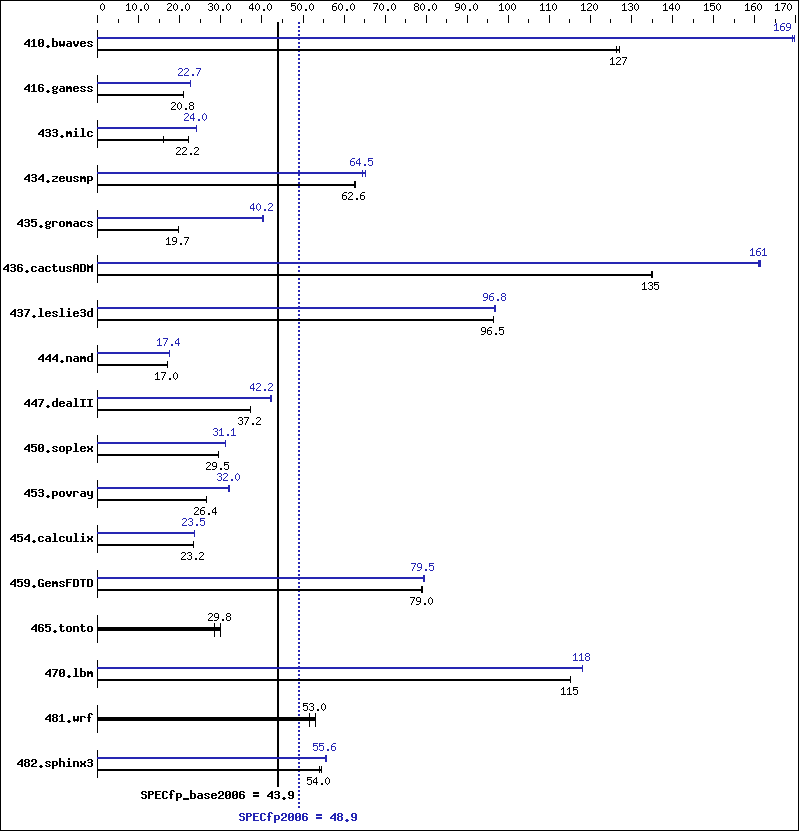

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB DDR3-1333)
Disk Subsystem: 1 x 146 GB, SAS, 10 K RPM
Other Hardware: None
Software
Operating System: OpenSolaris 2008.11
Compiler: Sun Studio 12 Update 1
(internal build 39.0)
Auto Parallel: Yes
File System: zfs with gzip compression
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64
Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 108   126   107   127   107   127   80.3 169   80.1 170   80.3 169
416.gamess 943   20.8 943   20.8 943   20.8 863   22.7 863   22.7 863   22.7
433.milc 414   22.2 570   16.1 414   22.2 382   24.0 383   24.0 384   23.9
434.zeusmp 146   62.5 145   62.7 145   62.6 141   64.5 141   64.5 140   65.1
435.gromacs 363   19.7 363   19.7 363   19.7 178   40.2 178   40.1 177   40.3
436.cactusADM 88.6 135   88.6 135   88.5 135   74.2 161   74.1 161   74.1 161
437.leslie3d 97.6 96.3 97.4 96.5 97.5 96.5 97.1 96.8 97.2 96.7 97.1 96.8
444.namd 471   17.0 471   17.0 471   17.0 460   17.4 460   17.4 460   17.4
447.dealII 308   37.2 308   37.2 308   37.2 271   42.2 271   42.2 271   42.2
450.soplex 283   29.4 283   29.5 283   29.5 268   31.1 268   31.1 268   31.1
453.povray 201   26.4 201   26.5 201   26.4 167   31.9 166   32.0 166   32.0
454.calculix 355   23.3 355   23.2 355   23.2 351   23.5 351   23.5 351   23.5
459.GemsFDTD 134   79.0 134   79.0 134   79.0 134   79.5 134   79.3 133   79.6
465.tonto 330   29.8 330   29.9 345   28.6 330   29.8 330   29.9 345   28.6
470.lbm 119   115   119   115   119   115   116   118   116   118   116   118
481.wrf 217   51.5 211   53.1 211   53.0 217   51.5 211   53.1 211   53.0
482.sphinx3 361   54.0 361   54.0 358   54.4 351   55.6 349   55.8 352   55.4

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s 131072  (shell): increases stack

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1
    set zfs:zfs_arc_max = 0x10000000

Platform Notes


   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "8"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Fortran benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/f90

Benchmarks using both Fortran and C:

 /data1/SUNWspro.b39/SUNWspro/bin/cc   /data1/SUNWspro.b39/SUNWspro/bin/f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xvector=simd   -xautopar   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

Peak Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Fortran benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/f90

Benchmarks using both Fortran and C:

 /data1/SUNWspro.b39/SUNWspro/bin/cc   /data1/SUNWspro.b39/SUNWspro/bin/f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M
470.lbm:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -lmvec
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xautopar   -xreduction

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=8   -library=stlport4
447.dealII:  -fast   -xipo=1   -m64   -xpagesize=2M   -xalias_level=compatible   -xdepend   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -fast   -xipo=2   -xpagesize=2M   -xrestrict   -xalias_level=simple   -xprefetch=no%auto   -xdepend   -library=stlport4
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch=no%auto   -xautopar   -xreduction
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -qoption iropt -Ainline:cp=19   -qoption iropt -Ainline:rs=50   -qoption iropt -Ainline:irs=30
434.zeusmp:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -lumem
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xautopar   -xreduction
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -fsimple=2   -Qoption ube -fsimple=3   -xprefetch=no%auto   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xvector=simd   -xautopar   -W2,-Aparallel:nthreads=16   -Qoption iropt -Aparallel:nthreads=16
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 01:57:53 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 28 April 2009.
