| CPU2006 license: | 6 | Test date: | Apr-2009 |
|---|---|---|---|
| Test sponsor: | Sun Microsystems | Hardware Availability: | Apr-2009 |
| Tested by: | Sun Microsystems | Software Availability: | Jun-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 or 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB DDR3-1333) |
| Disk Subsystem: | 1 x 146 GB, SAS, 10 K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | OpenSolaris 2008.11 |
| Compiler: | Sun Studio 12 Update 1 (internal build 39.0) |
| Auto Parallel: | Yes |
| File System: | zfs with gzip compression |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 9.01 for x64 |

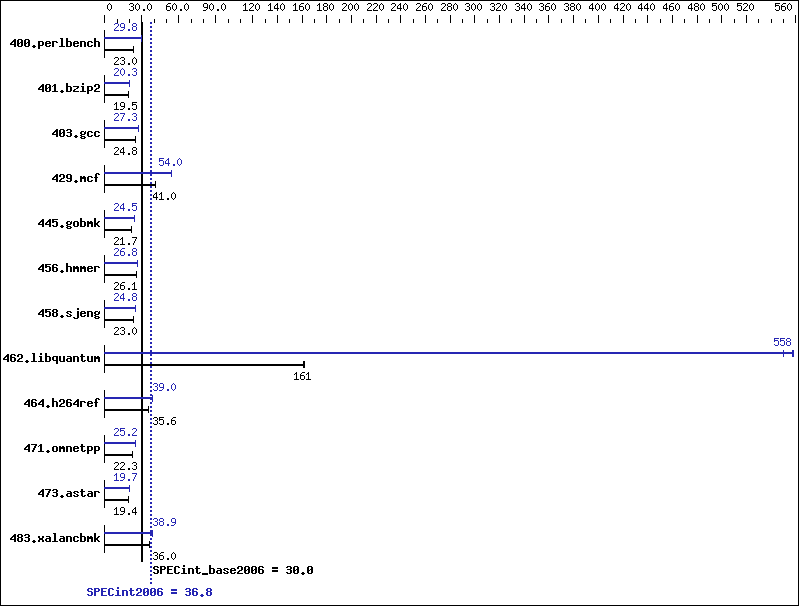

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 425 | 23.0 | 425 | 23.0 | 425 | 23.0 | 328 | 29.8 | 328 | 29.8 | 327 | 29.8 |
| 401.bzip2 | 496 | 19.4 | 496 | 19.5 | 496 | 19.5 | 475 | 20.3 | 475 | 20.3 | 475 | 20.3 |
| 403.gcc | 325 | 24.8 | 325 | 24.8 | 325 | 24.8 | 295 | 27.3 | 295 | 27.3 | 295 | 27.3 |
| 429.mcf | 223 | 40.9 | 223 | 41.0 | 223 | 41.0 | 169 | 54.0 | 169 | 54.0 | 169 | 54.0 |
| 445.gobmk | 483 | 21.7 | 483 | 21.7 | 482 | 21.7 | 429 | 24.5 | 429 | 24.4 | 428 | 24.5 |
| 456.hmmer | 357 | 26.1 | 357 | 26.1 | 357 | 26.1 | 348 | 26.8 | 348 | 26.8 | 348 | 26.8 |
| 458.sjeng | 525 | 23.0 | 525 | 23.0 | 525 | 23.0 | 488 | 24.8 | 488 | 24.8 | 488 | 24.8 |
| 462.libquantum | 128 | 162 | 128 | 161 | 129 | 161 | 37.2 | 558 | 37.1 | 558 | 37.7 | 550 |
| 464.h264ref | 621 | 35.6 | 621 | 35.7 | 621 | 35.6 | 567 | 39.0 | 567 | 39.0 | 567 | 39.0 |
| 471.omnetpp | 280 | 22.3 | 280 | 22.3 | 280 | 22.3 | 248 | 25.2 | 248 | 25.2 | 248 | 25.2 |
| 473.astar | 361 | 19.4 | 361 | 19.4 | 361 | 19.4 | 356 | 19.7 | 356 | 19.7 | 356 | 19.7 |
| 483.xalancbmk | 192 | 36.0 | 191 | 36.1 | 192 | 36.0 | 178 | 38.9 | 177 | 38.9 | 177 | 38.9 |
Operating System Notes
ulimit -s 131072 (shell): increases stack
/etc/system parameters
tune_t_fsflushr=10
autoup=900
set lpg_alloc_prefer=1
set zfs:zfs_arc_max = 0x10000000
Platform Notes
Default BIOS settings used except: Intel VT-d: Disabled. VT-d, if enabled, supports remapping of I/O DMA transfers for virtualization.
General Notes
Environment variables set by runspec before the start of the run: OMP_NUM_THREADS = "8" SUNW_MP_PROCBIND = "true" SUNW_MP_THR_IDLE = "SPIN"
Base Compiler Invocation
C benchmarks:
| /data1/SUNWspro.b39/SUNWspro/bin/cc |
C++ benchmarks:
| /data1/SUNWspro.b39/SUNWspro/bin/CC |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS |
Base Optimization Flags
C benchmarks:
| -fast -xipo=2 -m64 -xpagesize=2M -xprefetch -xalias_level=std |
C++ benchmarks:
| -fast -xipo=2 -m64 -xpagesize=2M -xvector=simd -xprefetch=no%auto -xalias_level=compatible -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64 -library=stlport4 |
Peak Compiler Invocation
C benchmarks:
| /data1/SUNWspro.b39/SUNWspro/bin/cc |
C++ benchmarks:
| /data1/SUNWspro.b39/SUNWspro/bin/CC |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_IA32 |
| 403.gcc: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
