SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Ultra 27 (Intel Xeon W3570 3.2GHz)

SPECfp®2006 = 45.4

CPU2006 license: 6 Test date: Apr-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

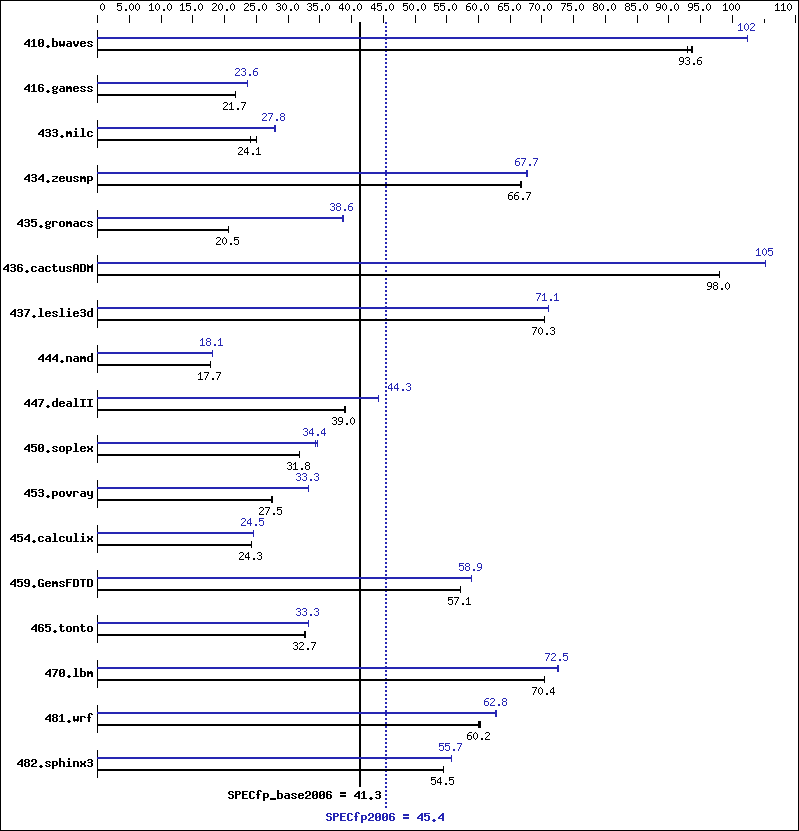

Benchmark results graph
Hardware
CPU Name: Intel Xeon W3570
CPU Characteristics: Intel Turbo Boost Technology up to 3.46 GHz
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 6 GB (3 x 2 GB DDR3-1333)
Disk Subsystem: 500 GB, SATA, 7200 RPM
Other Hardware: None
Software
Operating System: OpenSolaris 2008.11
Compiler: Sun Studio 12 Update 1
(internal build 39.0)
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64
Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 146 92.9 145 93.6 145 93.7 133 102   133 102   133 102
416.gamess 903 21.7 903 21.7 902 21.7 831 23.6 830 23.6 830 23.6
433.milc 366 25.1 380 24.1 380 24.1 330 27.8 330 27.8 328 28.0
434.zeusmp 136 66.7 137 66.6 136 66.7 134 67.7 135 67.6 134 67.7
435.gromacs 348 20.5 348 20.5 348 20.5 185 38.7 185 38.6 185 38.6
436.cactusADM 122 98.0 122 98.0 122 98.0 113 105   113 105   114 105
437.leslie3d 134 70.4 134 70.3 134 70.3 132 71.1 132 71.1 132 71.0
444.namd 453 17.7 453 17.7 453 17.7 443 18.1 442 18.1 442 18.2
447.dealII 293 39.1 294 38.9 294 39.0 258 44.3 259 44.2 258 44.3
450.soplex 262 31.8 262 31.8 262 31.8 241 34.6 243 34.4 243 34.3
453.povray 193 27.5 194 27.5 194 27.4 160 33.2 160 33.3 160 33.3
454.calculix 340 24.3 340 24.3 340 24.3 337 24.5 337 24.5 337 24.5
459.GemsFDTD 186 57.1 186 57.1 186 57.1 180 58.9 180 58.9 180 58.9
465.tonto 302 32.6 301 32.7 301 32.7 296 33.3 296 33.3 296 33.2
470.lbm 195 70.4 195 70.4 195 70.4 190 72.5 189 72.5 189 72.5
481.wrf 185 60.2 185 60.2 186 60.0 178 62.9 178 62.7 178 62.8
482.sphinx3 358 54.5 357 54.5 357 54.6 350 55.7 350 55.7 350 55.7

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s 131072  (shell): increases stack
 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1

Platform Notes

   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "4"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"
447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.
447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Fortran benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/f90

Benchmarks using both Fortran and C:

 /data1/SUNWspro.b39/SUNWspro/bin/cc   /data1/SUNWspro.b39/SUNWspro/bin/f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xvector=simd   -xautopar   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

Peak Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Fortran benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/f90

Benchmarks using both Fortran and C:

 /data1/SUNWspro.b39/SUNWspro/bin/cc   /data1/SUNWspro.b39/SUNWspro/bin/f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M
470.lbm:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -lmvec
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xautopar   -xreduction

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=8   -library=stlport4
447.dealII:  -fast   -xipo=1   -m64   -xpagesize=2M   -xalias_level=compatible   -xdepend   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -fast   -xipo=2   -xpagesize=2M   -xrestrict   -xalias_level=simple   -xprefetch=no%auto   -xdepend   -library=stlport4
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch=no%auto   -xautopar   -xreduction
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -qoption iropt -Ainline:cp=19   -qoption iropt -Ainline:rs=50   -qoption iropt -Ainline:irs=30
434.zeusmp:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -lumem
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xautopar   -xreduction
465.tonto:  -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -stackvar   -xreduction   -xprefetch=no%auto   -xvector=lib   -xalias   -xdepend

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -fsimple=2   -Qoption ube -fsimple=3   -xprefetch=no%auto   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xvector=simd   -xautopar   -W2,-Aparallel:nthreads=16   -Qoption iropt -Aparallel:nthreads=16
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=lib,simd   -xprefetch=no%auto   -xautopar   -xreduction

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 02:02:06 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 28 April 2009.
