SPEC® CINT2006 Result

Dell Inc.

PowerEdge M710 (Intel Xeon E5520, 2.27 GHz)

Hardware
CPU Name:	Intel Xeon E5520
CPU Characteristics:	Intel Turbo Boost Technology up to 2.53 GHz
CPU MHz:	2267
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB (6 x 4 GB DDR3-1066 DR RDIMM)
Disk Subsystem:	1 x 73 GB 10000 RPM SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

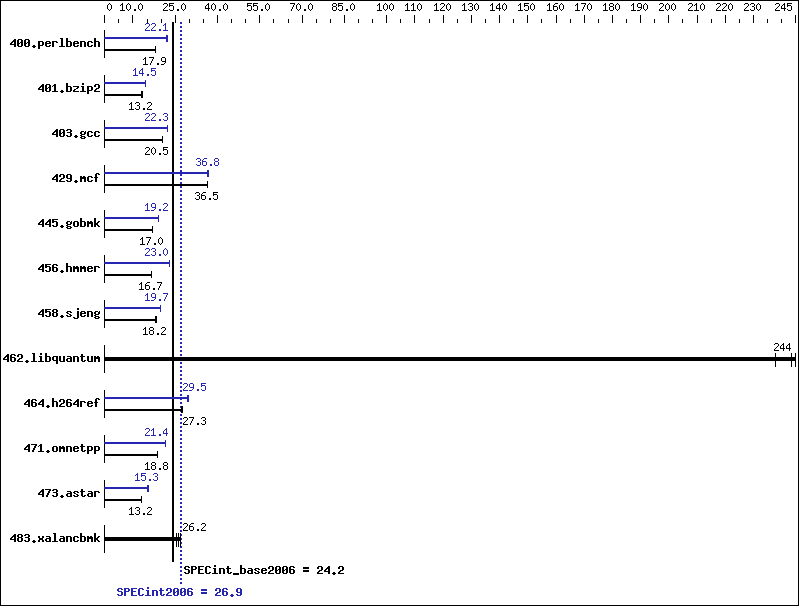

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	544	17.9	544	17.9	544	18.0	441	22.2	443	22.0	441	22.1
401.bzip2	731	13.2	731	13.2	729	13.2	664	14.5	664	14.5	664	14.5
403.gcc	393	20.5	393	20.5	393	20.5	361	22.3	361	22.3	361	22.3
429.mcf	251	36.3	250	36.5	250	36.5	250	36.4	247	36.9	248	36.8
445.gobmk	617	17.0	617	17.0	617	17.0	547	19.2	547	19.2	547	19.2
456.hmmer	558	16.7	558	16.7	558	16.7	405	23.0	405	23.1	405	23.0
458.sjeng	666	18.2	665	18.2	667	18.1	613	19.7	613	19.7	613	19.7
462.libquantum	87.1	238	85.1	244	84.7	245	87.1	238	85.1	244	84.7	245
464.h264ref	806	27.5	810	27.3	812	27.2	750	29.5	750	29.5	751	29.5
471.omnetpp	332	18.8	332	18.8	332	18.8	292	21.4	292	21.4	292	21.4
473.astar	533	13.2	534	13.2	534	13.1	458	15.3	460	15.3	458	15.3
483.xalancbmk	263	26.2	258	26.8	270	25.6	263	26.2	258	26.8	270	25.6

 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to granularity=fine,scatter

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
458.sjeng:	/opt/intel/Compiler/11.0/080/bin/intel64/icc

	icpc
473.astar:	/opt/intel/Compiler/11.0/080/bin/intel64/icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:
