SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade X6270 (Intel Xeon X5570 2.93GHz)

SPECint®2006 = 36.8

CPU2006 license: 6 Test date: Apr-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

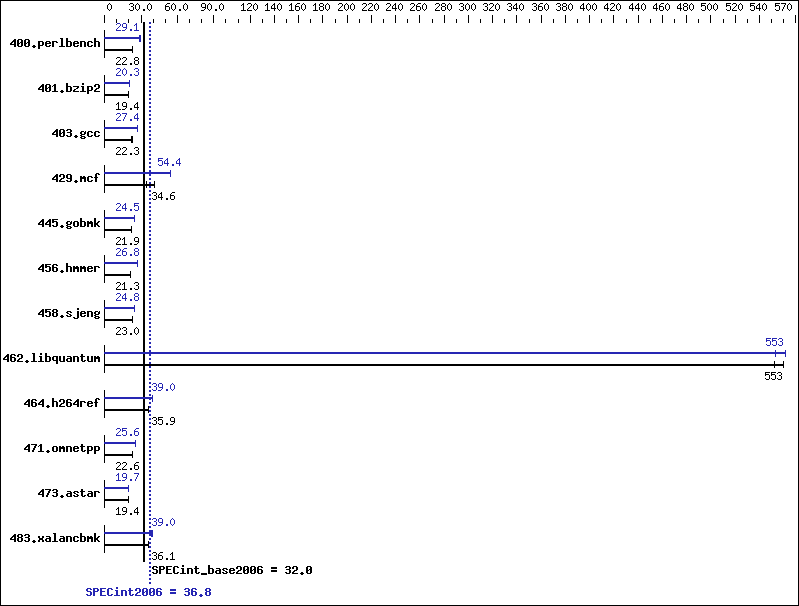

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB DDR3-1333)
Disk Subsystem: 134 GB using 1x ST914602SSUN146GSAS
SAS 10 K RPM
Other Hardware: None
Software
Operating System: OpenSolaris 2008.11
Compiler: Sun Studio 12 Update 1
(internal build 39.0)
Auto Parallel: Yes
File System: zfs with gzip compression
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 430   22.7 425   23.0 428   22.8 337   29.0 336   29.1 336   29.1
401.bzip2 498   19.4 497   19.4 497   19.4 476   20.3 476   20.3 475   20.3
403.gcc 352   22.8 361   22.3 361   22.3 294   27.4 294   27.4 294   27.4
429.mcf 264   34.6 221   41.2 263   34.6 168   54.4 168   54.4 168   54.4
445.gobmk 479   21.9 479   21.9 478   21.9 428   24.5 428   24.5 428   24.5
456.hmmer 438   21.3 439   21.3 438   21.3 348   26.8 348   26.8 348   26.8
458.sjeng 526   23.0 526   23.0 526   23.0 487   24.8 487   24.8 487   24.8
462.libquantum 37.5 553   37.5 552   37.0 560   37.4 553   36.9 562   37.4 553
464.h264ref 616   35.9 615   36.0 616   35.9 567   39.0 567   39.0 566   39.1
471.omnetpp 277   22.5 277   22.6 277   22.6 245   25.5 244   25.6 244   25.6
473.astar 361   19.4 361   19.5 361   19.4 356   19.7 356   19.7 356   19.7
483.xalancbmk 191   36.0 191   36.1 191   36.1 177   39.0 177   39.0 177   39.0

Operating System Notes

 ulimit -s 131072  (shell): increases stack

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1
    set zfs:zfs_arc_max = 0x10000000

Platform Notes


 AMIBIOS Build Date 1/26/09 ID 07.01.36.00
   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "8"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"

Base Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch   -xalias_level=std   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xalias_level=compatible   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64   -library=stlport4

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Peak Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_IA32
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xvector=simd   -xalias_level=std   -xprefetch=no%auto   -lbsdmalloc   -lumem
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong   -xprefetch=no%auto   -lumem
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=std   -m64   -xprefetch=no%auto
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xalias_level=strict   -xprefetch=no%auto   -lbsdmalloc
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong   -xdepend   -xautopar   -lmvec
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xrestrict   -xalias_level=std   -xprefetch=no%auto
462.libquantum:  -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong   -xautopar

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -xalias_level=compatible   -library=stlport4   -xautopar
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=12   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64   -library=stlport4

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 01:54:03 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 28 April 2009.
