| CPU2006 license: | 001176 | Test date: | Feb-2009 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2008 |
| Tested by: | Supermicro | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | Quad Core, 2.83 GHz, 1333 MHz System Bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-667 ECC Reg CL5, FBDIMM) |
| Disk Subsystem: | 80 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

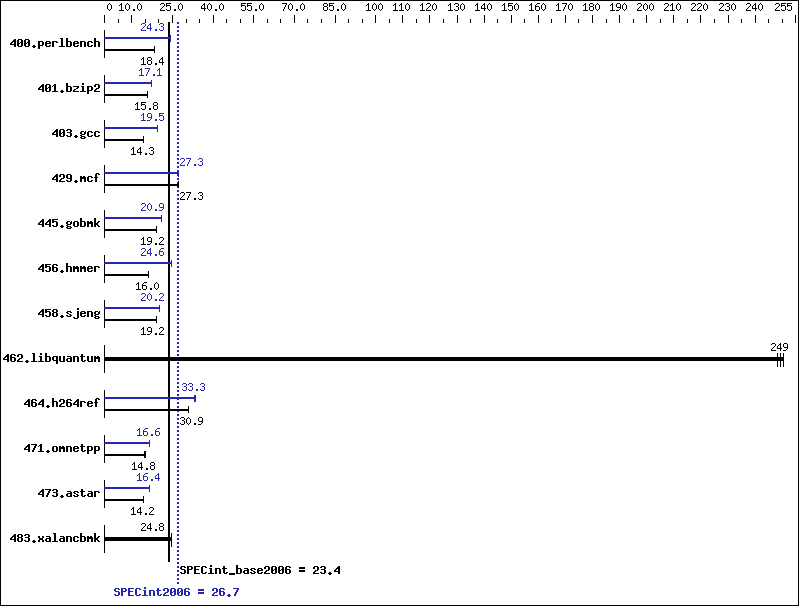

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 533 | 18.3 | 532 | 18.4 | 532 | 18.4 | 402 | 24.3 | 402 | 24.3 | 401 | 24.4 |
| 401.bzip2 | 610 | 15.8 | 611 | 15.8 | 612 | 15.8 | 563 | 17.1 | 563 | 17.1 | 565 | 17.1 |
| 403.gcc | 565 | 14.3 | 561 | 14.4 | 562 | 14.3 | 412 | 19.6 | 412 | 19.5 | 412 | 19.5 |
| 429.mcf | 335 | 27.2 | 334 | 27.3 | 334 | 27.3 | 335 | 27.3 | 335 | 27.2 | 335 | 27.3 |
| 445.gobmk | 548 | 19.2 | 548 | 19.2 | 548 | 19.2 | 503 | 20.9 | 503 | 20.9 | 503 | 20.9 |
| 456.hmmer | 582 | 16.0 | 582 | 16.0 | 581 | 16.0 | 379 | 24.6 | 379 | 24.6 | 379 | 24.6 |
| 458.sjeng | 633 | 19.1 | 631 | 19.2 | 629 | 19.2 | 599 | 20.2 | 597 | 20.3 | 598 | 20.2 |
| 462.libquantum | 82.7 | 251 | 83.5 | 248 | 83.1 | 249 | 82.7 | 251 | 83.5 | 248 | 83.1 | 249 |
| 464.h264ref | 717 | 30.9 | 714 | 31.0 | 715 | 30.9 | 663 | 33.4 | 665 | 33.3 | 665 | 33.3 |
| 471.omnetpp | 420 | 14.9 | 423 | 14.8 | 421 | 14.8 | 377 | 16.6 | 377 | 16.6 | 377 | 16.6 |
| 473.astar | 493 | 14.2 | 494 | 14.2 | 494 | 14.2 | 428 | 16.4 | 428 | 16.4 | 427 | 16.4 |
| 483.xalancbmk | 278 | 24.8 | 279 | 24.8 | 279 | 24.7 | 278 | 24.8 | 279 | 24.8 | 279 | 24.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to Adjacent Cache Line Prefetch = enabled (Default = disabled) Tested system can be used with CSE-161M-320B. To ensure system stability, SBE-710E-D28 - Enclosure chassis with two 1400W power supplies are required. Products description can be obtained at http://www.supermicro.com/servers/blade/module/SBI-7125B-T1.cfm http://www.supermicro.com/servers/blade/enclosure/
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
