| CPU2006 license: | 001176 | Test date: | Feb-2009 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2008 |
| Tested by: | Supermicro | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | Quad Core, 2.83 GHz, 1333 MHz System Bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-667 ECC Reg CL5, FBDIMM) |
| Disk Subsystem: | 80 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

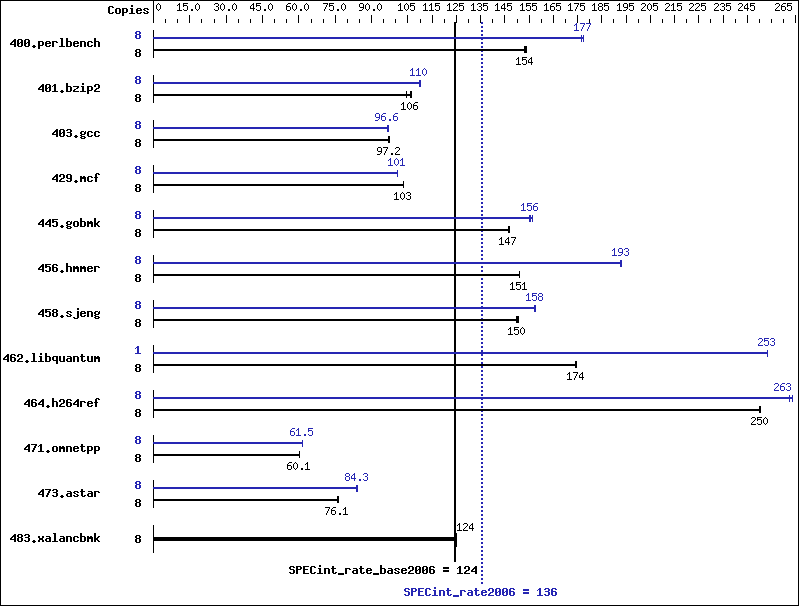

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 511 | 153 | 509 | 154 | 508 | 154 | 8 | 441 | 177 | 443 | 176 | 440 | 178 |
| 401.bzip2 | 8 | 740 | 104 | 727 | 106 | 727 | 106 | 8 | 702 | 110 | 702 | 110 | 704 | 110 |
| 403.gcc | 8 | 663 | 97.2 | 664 | 97.0 | 660 | 97.5 | 8 | 668 | 96.5 | 664 | 97.0 | 667 | 96.6 |
| 429.mcf | 8 | 707 | 103 | 708 | 103 | 707 | 103 | 8 | 726 | 101 | 726 | 100 | 725 | 101 |
| 445.gobmk | 8 | 571 | 147 | 572 | 147 | 573 | 147 | 8 | 539 | 156 | 537 | 156 | 541 | 155 |
| 456.hmmer | 8 | 495 | 151 | 494 | 151 | 494 | 151 | 8 | 387 | 193 | 387 | 193 | 387 | 193 |
| 458.sjeng | 8 | 644 | 150 | 646 | 150 | 644 | 150 | 8 | 614 | 158 | 615 | 157 | 614 | 158 |
| 462.libquantum | 8 | 950 | 174 | 949 | 175 | 951 | 174 | 1 | 81.7 | 253 | 81.8 | 253 | 81.8 | 253 |
| 464.h264ref | 8 | 707 | 250 | 708 | 250 | 707 | 250 | 8 | 674 | 263 | 674 | 263 | 672 | 263 |
| 471.omnetpp | 8 | 831 | 60.1 | 831 | 60.2 | 832 | 60.1 | 8 | 813 | 61.5 | 814 | 61.5 | 813 | 61.5 |
| 473.astar | 8 | 738 | 76.1 | 738 | 76.1 | 741 | 75.8 | 8 | 666 | 84.3 | 666 | 84.4 | 671 | 83.7 |
| 483.xalancbmk | 8 | 444 | 124 | 443 | 124 | 442 | 125 | 8 | 444 | 124 | 443 | 124 | 442 | 125 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind processes to cores except for 462.libquantum peak
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M Tested system can be used with CSE-161M-320B. To ensure system stability, SBE-710E-D28 - Enclosure chassis with two 1400W power supplies are required. Products description can be obtained at http://www.supermicro.com/servers/blade/module/SBI-7125B-T1.cfm http://www.supermicro.com/servers/blade/enclosure/
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
