| CPU2006 license: | 20 | Test date: | Apr-2009 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Apr-2009 |
| Tested by: | NEC Corporation | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 X 4 GB PC3-8500R, 2 rank, CL7, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

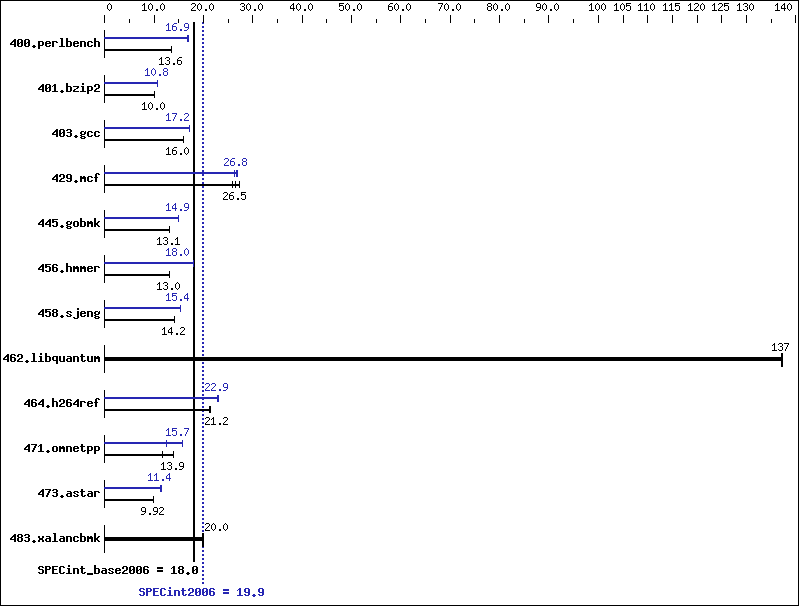

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 719 | 13.6 | 719 | 13.6 | 718 | 13.6 | 579 | 16.9 | 579 | 16.9 | 582 | 16.8 |
| 401.bzip2 | 965 | 10.0 | 959 | 10.1 | 961 | 10.0 | 895 | 10.8 | 896 | 10.8 | 900 | 10.7 |
| 403.gcc | 503 | 16.0 | 504 | 16.0 | 504 | 16.0 | 469 | 17.2 | 469 | 17.2 | 469 | 17.2 |
| 429.mcf | 352 | 25.9 | 344 | 26.5 | 335 | 27.2 | 346 | 26.3 | 341 | 26.8 | 339 | 26.9 |
| 445.gobmk | 798 | 13.1 | 798 | 13.1 | 798 | 13.1 | 705 | 14.9 | 705 | 14.9 | 705 | 14.9 |
| 456.hmmer | 716 | 13.0 | 714 | 13.1 | 716 | 13.0 | 520 | 18.0 | 521 | 17.9 | 519 | 18.0 |
| 458.sjeng | 853 | 14.2 | 854 | 14.2 | 854 | 14.2 | 787 | 15.4 | 787 | 15.4 | 788 | 15.4 |
| 462.libquantum | 151 | 137 | 151 | 137 | 151 | 137 | 151 | 137 | 151 | 137 | 151 | 137 |
| 464.h264ref | 1045 | 21.2 | 1043 | 21.2 | 1034 | 21.4 | 964 | 23.0 | 965 | 22.9 | 965 | 22.9 |
| 471.omnetpp | 533 | 11.7 | 450 | 13.9 | 450 | 13.9 | 397 | 15.8 | 500 | 12.5 | 397 | 15.7 |
| 473.astar | 707 | 9.93 | 708 | 9.91 | 708 | 9.92 | 616 | 11.4 | 616 | 11.4 | 616 | 11.4 |
| 483.xalancbmk | 346 | 20.0 | 346 | 20.0 | 350 | 19.7 | 346 | 20.0 | 346 | 20.0 | 350 | 19.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
BIOS setting: NUMA configuration : Enabled
General Notes
The NEC Express5800/T120a-M(Intel Xeon E5502) and the Bull NovaScale T860 E2 (Intel Xeon E5502, 1.86 GHz) models are electronically equivalent. The results have been measured on a NEC Express5800/T120a-M(Intel Xeon E5502) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/081/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib64 -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
