| CPU2006 license: | 3 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Mar-2009 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB PC3-10600R CL9) |
| Disk Subsystem: | 2x146 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.3 Kernel 2.6.18-128.el5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

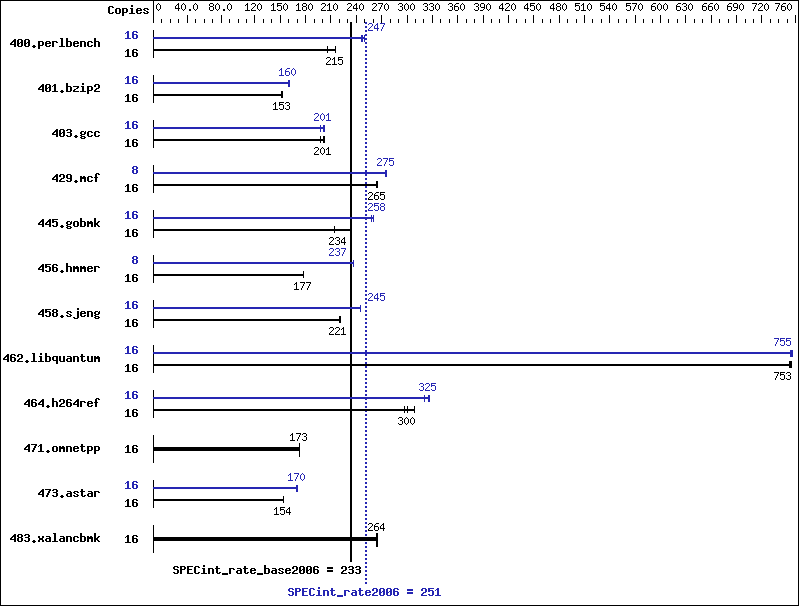

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 761 | 205 | 727 | 215 | 726 | 215 | 16 | 635 | 246 | 625 | 250 | 634 | 247 |
| 401.bzip2 | 16 | 1017 | 152 | 1010 | 153 | 1011 | 153 | 16 | 965 | 160 | 965 | 160 | 959 | 161 |
| 403.gcc | 16 | 638 | 202 | 652 | 197 | 641 | 201 | 16 | 640 | 201 | 638 | 202 | 651 | 198 |
| 429.mcf | 16 | 550 | 265 | 553 | 264 | 550 | 265 | 8 | 265 | 275 | 264 | 276 | 265 | 275 |
| 445.gobmk | 16 | 785 | 214 | 716 | 235 | 717 | 234 | 16 | 650 | 258 | 644 | 261 | 652 | 257 |
| 456.hmmer | 16 | 842 | 177 | 842 | 177 | 839 | 178 | 8 | 315 | 237 | 315 | 237 | 315 | 237 |
| 458.sjeng | 16 | 877 | 221 | 875 | 221 | 879 | 220 | 16 | 791 | 245 | 791 | 245 | 792 | 244 |
| 462.libquantum | 16 | 439 | 755 | 440 | 753 | 440 | 753 | 16 | 440 | 753 | 439 | 756 | 439 | 755 |
| 464.h264ref | 16 | 1148 | 308 | 1179 | 300 | 1193 | 297 | 16 | 1089 | 325 | 1083 | 327 | 1103 | 321 |
| 471.omnetpp | 16 | 578 | 173 | 577 | 173 | 577 | 173 | 16 | 578 | 173 | 577 | 173 | 577 | 173 |
| 473.astar | 16 | 728 | 154 | 728 | 154 | 728 | 154 | 16 | 661 | 170 | 661 | 170 | 662 | 170 |
| 483.xalancbmk | 16 | 418 | 264 | 417 | 265 | 417 | 264 | 16 | 418 | 264 | 417 | 265 | 417 | 264 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS configuration: HP Power Profile set to Maximum Performance HP Power Regulator set to HP Static High Performance Mode Thermal Configuration set to Increased Cooling
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
