SPEC® CINT2006 Result

IBM Corporation

IBM System x iDataPlex dx360 (Intel Xeon E5440)

Hardware
CPU Name:	Intel Xeon E5440
CPU Characteristics:	1333MHz system bus
CPU MHz:	2833
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8 x 2 GB DDR2-5300F ECC)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10(x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

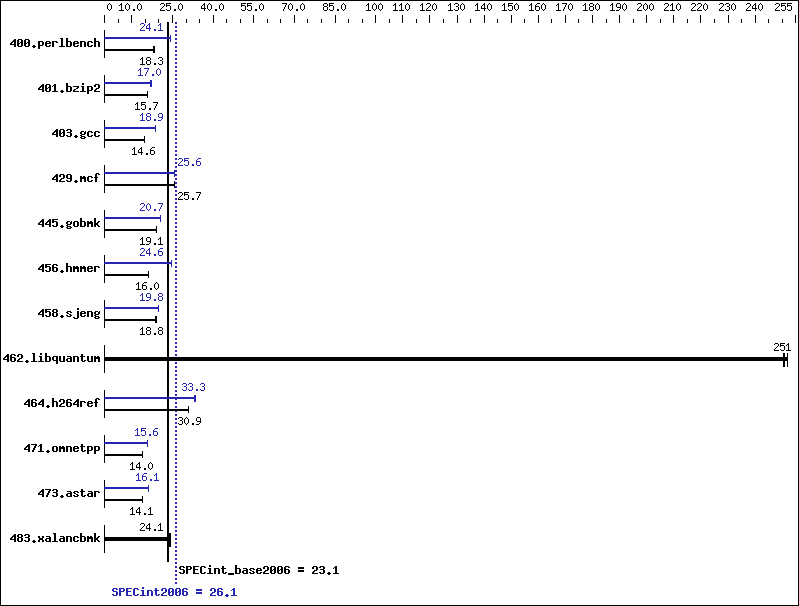

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	534	18.3	538	18.1	535	18.3	405	24.1	404	24.2	405	24.1
401.bzip2	617	15.6	614	15.7	615	15.7	567	17.0	565	17.1	566	17.0
403.gcc	549	14.7	551	14.6	552	14.6	426	18.9	426	18.9	427	18.9
429.mcf	356	25.6	354	25.7	354	25.7	356	25.6	356	25.6	356	25.6
445.gobmk	548	19.2	548	19.1	548	19.1	507	20.7	507	20.7	507	20.7
456.hmmer	583	16.0	583	16.0	583	16.0	380	24.6	379	24.6	380	24.6
458.sjeng	642	18.8	644	18.8	638	19.0	611	19.8	610	19.8	611	19.8
462.libquantum	82.2	252	82.6	251	82.7	250	82.2	252	82.6	251	82.7	250
464.h264ref	715	31.0	720	30.7	716	30.9	664	33.3	666	33.2	664	33.3
471.omnetpp	446	14.0	444	14.1	445	14.0	400	15.6	400	15.6	400	15.6
473.astar	499	14.1	498	14.1	499	14.1	435	16.1	432	16.2	436	16.1
483.xalancbmk	286	24.1	287	24.1	287	24.1	286	24.1	287	24.1	287	24.1

 Hardware Sector Prefetch Enable and Adjacent Sector Prefetch Enable
 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/066/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/066/bin/intel64/icc

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4
462.libquantum:	basepeak = yes
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
