| CPU2006 license: | 13 | Test date: | Mar-2009 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2009 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Duo T9900 |
| CPU Characteristics: | |
| CPU MHz: | 3066 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (2x1GB Micron DDR3-1066 CL7) |
| Disk Subsystem: | Hitachi HTS722020K9SA00 200GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional w/ SP2 (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Microsoft Visual Studio 2008 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

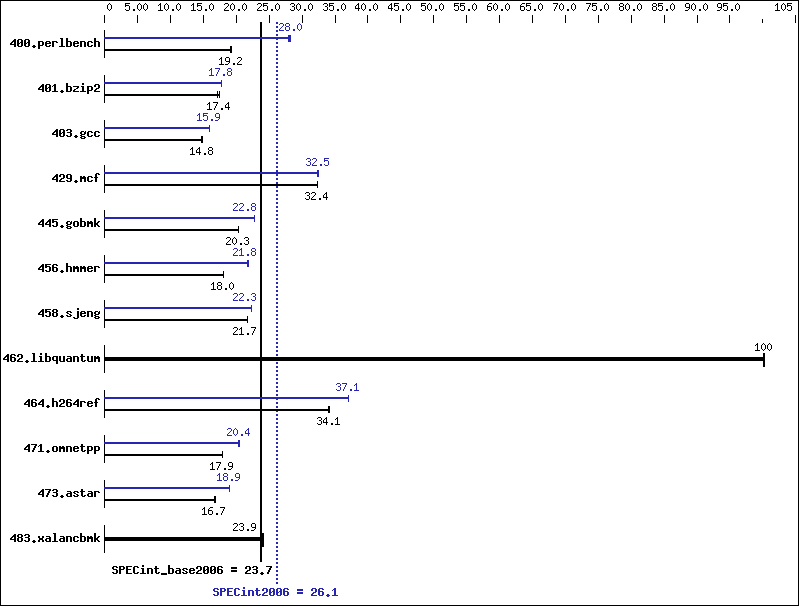

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 512 | 19.1 | 510 | 19.2 | 510 | 19.2 | 346 | 28.2 | 349 | 28.0 | 351 | 27.9 |
| 401.bzip2 | 560 | 17.2 | 555 | 17.4 | 552 | 17.5 | 543 | 17.8 | 544 | 17.7 | 543 | 17.8 |
| 403.gcc | 546 | 14.7 | 545 | 14.8 | 546 | 14.8 | 505 | 15.9 | 505 | 15.9 | 505 | 15.9 |
| 429.mcf | 282 | 32.4 | 281 | 32.4 | 281 | 32.4 | 282 | 32.4 | 281 | 32.5 | 281 | 32.5 |
| 445.gobmk | 516 | 20.3 | 516 | 20.3 | 516 | 20.3 | 461 | 22.8 | 461 | 22.8 | 461 | 22.7 |
| 456.hmmer | 517 | 18.0 | 518 | 18.0 | 517 | 18.0 | 428 | 21.8 | 428 | 21.8 | 430 | 21.7 |
| 458.sjeng | 558 | 21.7 | 558 | 21.7 | 558 | 21.7 | 542 | 22.3 | 542 | 22.3 | 542 | 22.3 |
| 462.libquantum | 207 | 100 | 207 | 100 | 207 | 100 | 207 | 100 | 207 | 100 | 207 | 100 |
| 464.h264ref | 650 | 34.0 | 649 | 34.1 | 649 | 34.1 | 597 | 37.1 | 597 | 37.1 | 597 | 37.1 |
| 471.omnetpp | 350 | 17.9 | 349 | 17.9 | 349 | 17.9 | 307 | 20.4 | 307 | 20.4 | 307 | 20.3 |
| 473.astar | 421 | 16.7 | 419 | 16.7 | 419 | 16.8 | 369 | 19.0 | 371 | 18.9 | 372 | 18.9 |
| 483.xalancbmk | 287 | 24.1 | 289 | 23.8 | 289 | 23.9 | 287 | 24.1 | 289 | 23.8 | 289 | 23.9 |
General Notes
The system bus runs at 1066 MHz Binaries were built on Windows Vista Ultimate (32-bit) OMP_NUM_THREADS set to number of logical processors as seen by the OS KMP_AFFINITY set to physical,0
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
C++ benchmarks:
| -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F512000000 |
| 429.mcf: | -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
