SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Intel Corporation)

Gigabyte MA78GM-S2H Motherboard (AMD Phenom II X4
925)

CPU2006 license: 13 Test date: May-2009
Test sponsor: Intel Corporation Hardware Availability: Apr-2009
Tested by: Intel Corporation Software Availability: Nov-2008

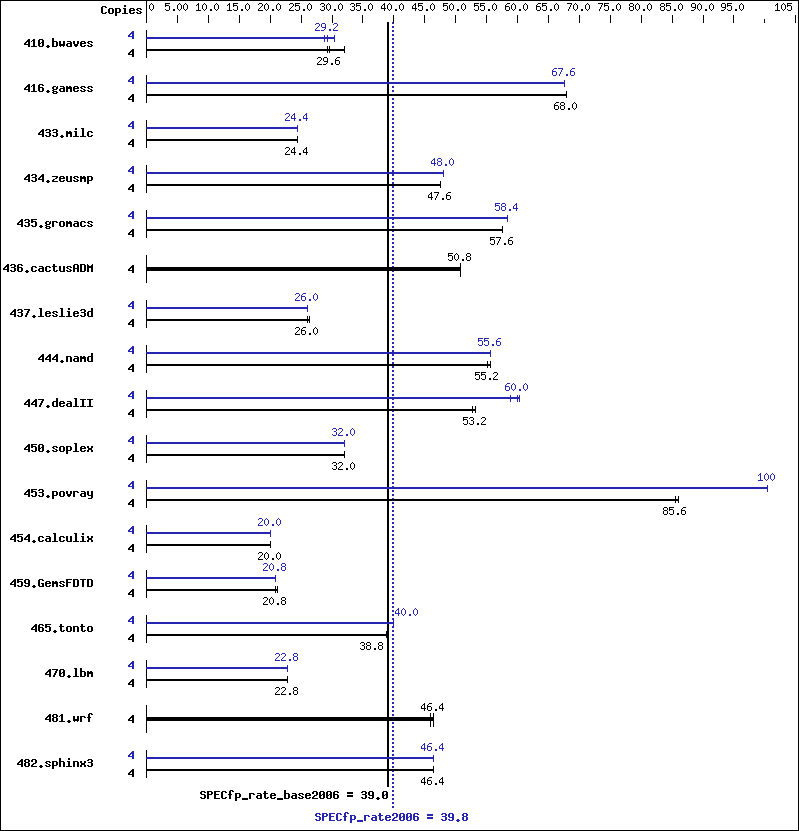

Benchmark results graph
Hardware
CPU Name: AMD Phenom II X4 925
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem: Seagate 320 GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler Professional 11.0 for IA32
Build 20080930 Package ID: w_cproc_p_11.0.054
Intel Visual Fortran Compiler Professional 11.0
for IA32
Build 20080930 Package ID: w_cprof_p_11.0.054
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1837 29.6 1707 32.0 1849 29.2 4 1868 29.2 1885 28.8 1798 30.4
416.gamess 4 1154 68.0 1153 68.0 1154 68.0 4 1155 67.6 1157 67.6 1155 67.6
433.milc 4 1496 24.4 1497 24.4 1498 24.4 4 1498 24.4 1497 24.4 1498 24.4
434.zeusmp 4 765 47.6 765 47.6 764 47.6 4 761 48.0 761 48.0 760 48.0
435.gromacs 4 496 57.6 495 57.6 496 57.6 4 489 58.4 488 58.4 489 58.4
436.cactusADM 4 944 50.8 944 50.8 944 50.8 4 944 50.8 944 50.8 944 50.8
437.leslie3d 4 1436 26.0 1436 26.0 1435 26.4 4 1437 26.0 1436 26.0 1436 26.0
444.namd 4 580 55.2 580 55.2 579 55.6 4 576 55.6 576 55.6 576 55.6
447.dealII 4 862 53.2 858 53.2 866 52.8 4 760 60.4 762 60.0 776 58.8
450.soplex 4 1039 32.0 1044 32.0 1039 32.0 4 1040 32.0 1041 32.0 1045 32.0
453.povray 4 249 85.6 249 85.6 248 86.0 4 212 100   212 100   212 100
454.calculix 4 1646 20.0 1647 20.0 1648 20.0 4 1646 20.0 1647 20.0 1646 20.0
459.GemsFDTD 4 2018 21.2 2022 20.8 2027 20.8 4 2024 20.8 2023 20.8 2034 20.8
465.tonto 4 1019 38.8 1017 38.8 1017 38.8 4 986 40.0 988 40.0 988 40.0
470.lbm 4 2397 22.8 2396 22.8 2397 22.8 4 2397 22.8 2397 22.8 2397 22.8
481.wrf 4 965 46.4 966 46.4 971 46.0 4 965 46.4 966 46.4 971 46.0
482.sphinx3 4 1682 46.4 1687 46.4 1680 46.4 4 1685 46.4 1683 46.4 1680 46.4

Submit Notes

The config file option 'submit' was used.

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Binaries were built on Windows Vista Ultimate (32-bit)

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000
470.lbm:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
482.sphinx3:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
459.GemsFDTD:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   /F1000000000
465.tonto:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 01:27:08 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 23 June 2009.
