| CPU2006 license: | 13 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Feb-2009 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | AMD Phenom II X4 805 |
| CPU Characteristics: | |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB DDR2-800 CL5) |
| Disk Subsystem: | Seagate 320 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate w/ SP1 (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Microsoft Visual Studio 2008 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

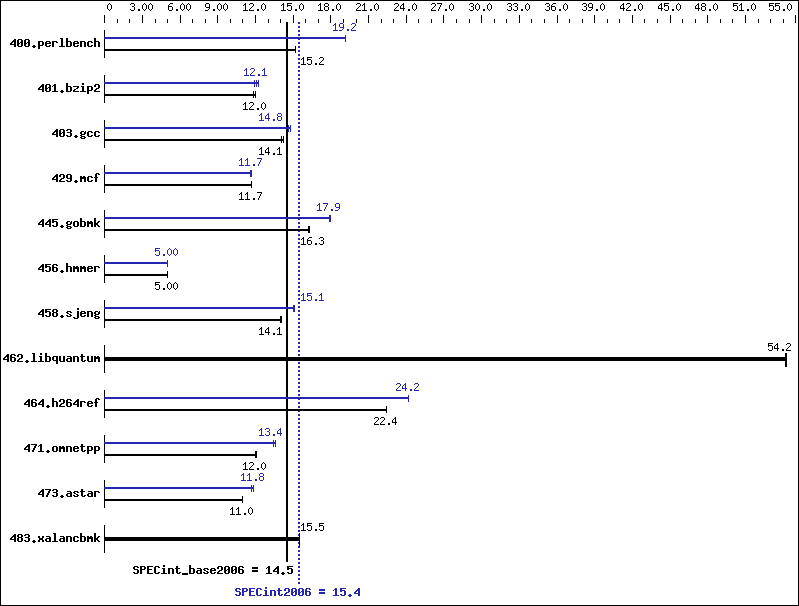

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 643 | 15.2 | 642 | 15.2 | 642 | 15.2 | 509 | 19.2 | 509 | 19.2 | 510 | 19.2 |
| 401.bzip2 | 818 | 11.8 | 804 | 12.0 | 802 | 12.0 | 793 | 12.2 | 808 | 11.9 | 796 | 12.1 |
| 403.gcc | 568 | 14.2 | 570 | 14.1 | 571 | 14.1 | 545 | 14.8 | 545 | 14.8 | 550 | 14.6 |
| 429.mcf | 780 | 11.7 | 778 | 11.7 | 778 | 11.7 | 785 | 11.6 | 779 | 11.7 | 780 | 11.7 |
| 445.gobmk | 645 | 16.3 | 646 | 16.3 | 646 | 16.2 | 585 | 17.9 | 582 | 18.0 | 585 | 17.9 |
| 456.hmmer | 1879 | 5.00 | 1883 | 5.00 | 1873 | 5.00 | 1864 | 5.00 | 1871 | 5.00 | 1868 | 5.00 |
| 458.sjeng | 861 | 14.1 | 862 | 14.0 | 861 | 14.1 | 805 | 15.0 | 804 | 15.1 | 804 | 15.1 |
| 462.libquantum | 382 | 54.2 | 382 | 54.2 | 382 | 54.3 | 382 | 54.2 | 382 | 54.2 | 382 | 54.3 |
| 464.h264ref | 989 | 22.4 | 989 | 22.4 | 986 | 22.4 | 915 | 24.2 | 916 | 24.2 | 913 | 24.2 |
| 471.omnetpp | 523 | 12.0 | 518 | 12.1 | 521 | 12.0 | 465 | 13.4 | 465 | 13.4 | 459 | 13.6 |
| 473.astar | 638 | 11.0 | 639 | 11.0 | 638 | 11.0 | 596 | 11.8 | 602 | 11.7 | 597 | 11.8 |
| 483.xalancbmk | 444 | 15.5 | 444 | 15.5 | 445 | 15.5 | 444 | 15.5 | 444 | 15.5 | 445 | 15.5 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Binaries were built on Windows Vista Ultimate (32-bit) OMP_NUM_THREADS set to number of logical processors as seen by the OS KMP_AFFINITY set to physical,0
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
C++ benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F512000000 |
| 429.mcf: | /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
