SPEC® CFP2006 Result

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Intel Corporation)

Gigabyte MA78GM-S2H Motherboard (AMD Phenom II X3
720)

SPECfp®2006 = 17.0

SPECfp_base2006 = 16.7

CPU2006 license:	13	Test date:	May-2009
Test sponsor:	Intel Corporation	Hardware Availability:	Feb-2009
Tested by:	Intel Corporation	Software Availability:	Nov-2008

Hardware
CPU Name:	AMD Phenom II X3 720
CPU Characteristics:
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	3 cores, 1 chip, 3 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem:	Seagate 320 GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	Windows Vista Ultimate w/ SP1 (64-bit)
Compiler:	Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Intel Visual Fortran Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cprof_p_11.0.054 Microsoft Visual Studio 2008 (for libraries)
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.1 from http://www.microquill.com/

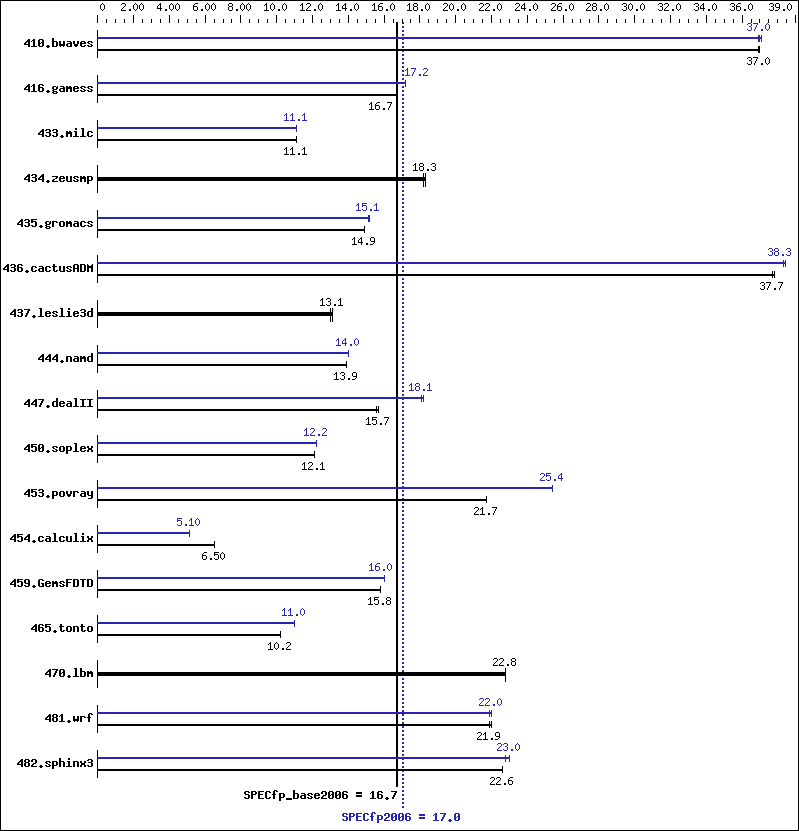

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	368	37.0	368	36.9	367	37.0	367	37.1	368	36.9	367	37.0
416.gamess	1174	16.7	1175	16.7	1175	16.7	1141	17.2	1141	17.2	1141	17.2
433.milc	828	11.1	826	11.1	826	11.1	825	11.1	826	11.1	826	11.1
434.zeusmp	500	18.2	497	18.3	497	18.3	500	18.2	497	18.3	497	18.3
435.gromacs	478	14.9	479	14.9	479	14.9	472	15.1	471	15.2	471	15.1
436.cactusADM	317	37.7	316	37.8	317	37.7	312	38.3	312	38.4	312	38.3
437.leslie3d	718	13.1	721	13.0	720	13.1	718	13.1	721	13.0	720	13.1
444.namd	577	13.9	577	13.9	577	13.9	573	14.0	573	14.0	573	14.0
447.dealII	733	15.6	730	15.7	731	15.7	632	18.1	631	18.1	630	18.2
450.soplex	688	12.1	687	12.1	687	12.1	683	12.2	683	12.2	683	12.2
453.povray	246	21.7	246	21.7	246	21.7	210	25.4	210	25.4	210	25.4
454.calculix	1274	6.50	1274	6.50	1274	6.50	1630	5.10	1630	5.10	1630	5.10
459.GemsFDTD	671	15.8	671	15.8	673	15.8	664	16.0	665	16.0	665	16.0
465.tonto	965	10.2	965	10.2	964	10.2	892	11.0	893	11.0	894	11.0
470.lbm	602	22.8	602	22.8	602	22.8	602	22.8	602	22.8	602	22.8
481.wrf	510	21.9	509	22.0	509	21.9	508	22.0	508	22.0	509	21.9
482.sphinx3	861	22.6	864	22.6	863	22.6	849	23.0	847	23.0	853	22.8

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Binaries were built on Windows Vista Ultimate (32-bit)
 OMP_NUM_THREADS set to number of logical processors as seen by the OS
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000
470.lbm:	basepeak = yes
482.sphinx3:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qunroll2 /F1000000000

C++ benchmarks:

444.namd:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
447.dealII:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qansi-alias -Qscalar-rep- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
450.soplex:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
453.povray:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000
416.gamess:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qopt-prefetch -Qparallel /F1000000000
465.tonto:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F1000000000
436.cactusADM:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qparallel /F1000000000
454.calculix:	/arch:SSE2 -Qipo -O3 -Qprec-div- /F1000000000
481.wrf:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.
