| CPU2006 license: | 13 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Feb-2009 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | AMD Phenom II X3 710 |
| CPU Characteristics: | |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 3 cores, 1 chip, 3 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB DDR2-800 CL5) |
| Disk Subsystem: | Seagate 320 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate w/ SP1 (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Microsoft Visual Studio 2008 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

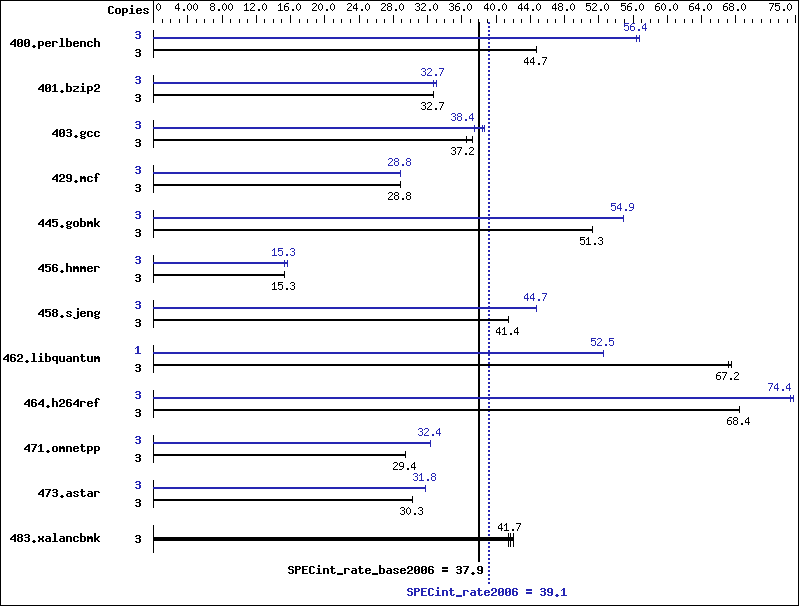

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 3 | 657 | 44.7 | 654 | 44.7 | 655 | 44.7 | 3 | 520 | 56.4 | 520 | 56.4 | 518 | 56.7 |
| 401.bzip2 | 3 | 882 | 32.7 | 887 | 32.7 | 886 | 32.7 | 3 | 882 | 32.7 | 887 | 32.7 | 880 | 33.0 |
| 403.gcc | 3 | 648 | 37.2 | 652 | 37.2 | 660 | 36.6 | 3 | 626 | 38.7 | 644 | 37.5 | 629 | 38.4 |
| 429.mcf | 3 | 947 | 28.8 | 948 | 28.8 | 949 | 28.8 | 3 | 947 | 28.8 | 946 | 28.8 | 947 | 28.8 |
| 445.gobmk | 3 | 614 | 51.3 | 614 | 51.3 | 614 | 51.3 | 3 | 574 | 54.9 | 574 | 54.9 | 574 | 54.9 |
| 456.hmmer | 3 | 1818 | 15.3 | 1812 | 15.3 | 1816 | 15.3 | 3 | 1816 | 15.3 | 1813 | 15.3 | 1809 | 15.6 |
| 458.sjeng | 3 | 877 | 41.4 | 877 | 41.4 | 877 | 41.4 | 3 | 811 | 44.7 | 811 | 44.7 | 811 | 44.7 |
| 462.libquantum | 3 | 923 | 67.5 | 924 | 67.2 | 923 | 67.2 | 1 | 395 | 52.5 | 395 | 52.5 | 395 | 52.5 |
| 464.h264ref | 3 | 970 | 68.4 | 969 | 68.4 | 969 | 68.4 | 3 | 891 | 74.4 | 891 | 74.7 | 891 | 74.4 |
| 471.omnetpp | 3 | 639 | 29.4 | 639 | 29.4 | 639 | 29.4 | 3 | 580 | 32.4 | 581 | 32.4 | 581 | 32.4 |
| 473.astar | 3 | 698 | 30.3 | 698 | 30.3 | 698 | 30.3 | 3 | 665 | 31.8 | 665 | 31.8 | 665 | 31.8 |
| 483.xalancbmk | 3 | 499 | 41.4 | 494 | 42.0 | 497 | 41.7 | 3 | 499 | 41.4 | 494 | 42.0 | 497 | 41.7 |
Submit Notes
The config file option 'submit' was used.
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Binaries were built on Windows Vista Ultimate (32-bit) OMP_NUM_THREADS set to number of logical processors as seen by the OS KMP_AFFINITY set to physical,0 submit disabled for 462.libquantum peak
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | /arch:SSE2 -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | /arch:SSE2 -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
