SPEC® CFP2006 Result

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Intel Corporation)

Gigabyte MA78GM-S2H Motherboard (AMD Phenom II X4
955)

SPECfp®2006 = 18.6

SPECfp_base2006 = 18.4

CPU2006 license:	13	Test date:	May-2009
Test sponsor:	Intel Corporation	Hardware Availability:	Apr-2009
Tested by:	Intel Corporation	Software Availability:	Nov-2008

Hardware
CPU Name:	AMD Phenom II X4 955
CPU Characteristics:
CPU MHz:	3200
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem:	Seagate 320 GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	Windows Vista Ultimate w/ SP1 (64-bit)
Compiler:	Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Intel Visual Fortran Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cprof_p_11.0.054 Microsoft Visual Studio 2008 (for libraries)
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.1 from http://www.microquill.com/

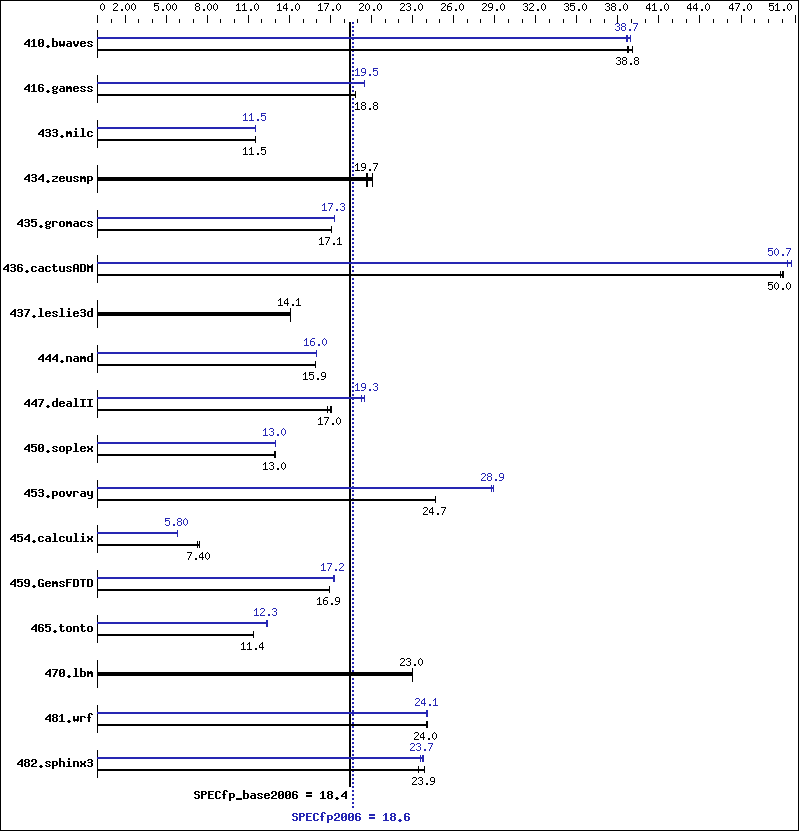

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	350	38.8	348	39.1	351	38.7	351	38.7	352	38.6	349	38.9
416.gamess	1039	18.8	1039	18.8	1040	18.8	1003	19.5	1004	19.5	1003	19.5
433.milc	800	11.5	800	11.5	800	11.5	800	11.5	800	11.5	800	11.5
434.zeusmp	461	19.7	465	19.6	453	20.1	461	19.7	465	19.6	453	20.1
435.gromacs	418	17.1	418	17.1	418	17.1	412	17.3	412	17.3	412	17.3
436.cactusADM	240	49.9	239	50.1	239	50.0	237	50.4	236	50.7	236	50.7
437.leslie3d	666	14.1	667	14.1	665	14.1	666	14.1	667	14.1	665	14.1
444.namd	505	15.9	505	15.9	505	15.9	502	16.0	502	16.0	502	16.0
447.dealII	683	16.8	669	17.1	674	17.0	593	19.3	587	19.5	592	19.3
450.soplex	645	12.9	642	13.0	644	13.0	642	13.0	642	13.0	641	13.0
453.povray	215	24.7	215	24.7	215	24.7	185	28.8	184	28.9	184	28.9
454.calculix	1123	7.30	1120	7.40	1121	7.40	1430	5.80	1430	5.80	1431	5.80
459.GemsFDTD	626	16.9	627	16.9	627	16.9	617	17.2	614	17.3	615	17.2
465.tonto	864	11.4	865	11.4	863	11.4	797	12.3	797	12.4	797	12.3
470.lbm	598	23.0	598	23.0	598	23.0	598	23.0	598	23.0	598	23.0
481.wrf	464	24.1	465	24.0	465	24.0	465	24.0	463	24.1	464	24.1
482.sphinx3	832	23.4	816	23.9	816	23.9	821	23.7	825	23.6	819	23.8

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Binaries were built on Windows Vista Ultimate (32-bit)
 OMP_NUM_THREADS set to number of logical processors as seen by the OS
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000
470.lbm:	basepeak = yes
482.sphinx3:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qunroll2 /F1000000000

C++ benchmarks:

444.namd:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
447.dealII:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qansi-alias -Qscalar-rep- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
450.soplex:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
453.povray:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000
416.gamess:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qopt-prefetch -Qparallel /F1000000000
465.tonto:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F1000000000
436.cactusADM:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qparallel /F1000000000
454.calculix:	/arch:SSE2 -Qipo -O3 -Qprec-div- /F1000000000
481.wrf:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.
