SPEC Seal of Reviewal SPECjAppServer®2004 Result
Copyright © 2004 Standard Performance Evaluation Corporation
Sun Java System Application Server 8.2 Platform Edition on T2000 NON-COMPLIANT (NC) RESULT
Submitter:
Sun Microsystems Inc.
SPEC license # 6 Test date:
Nov-2005
Software Products
Sun Java System Application Server 8.2 Platform Edition
Jakarta Tomcat 4.1.31
Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Oracle JDBC Driver 10.1.0.3 (Thin)
Oracle Database 10g Standard Edition Release 10.1.0.3.0
Software Configurations
J2EE Application Servers
Emulator SW Config
Database SW Config
Driver SW Config
Hardware Systems
J2EE AppServer HW
Database Server HW
Load Driver HW Primary (Emulator)

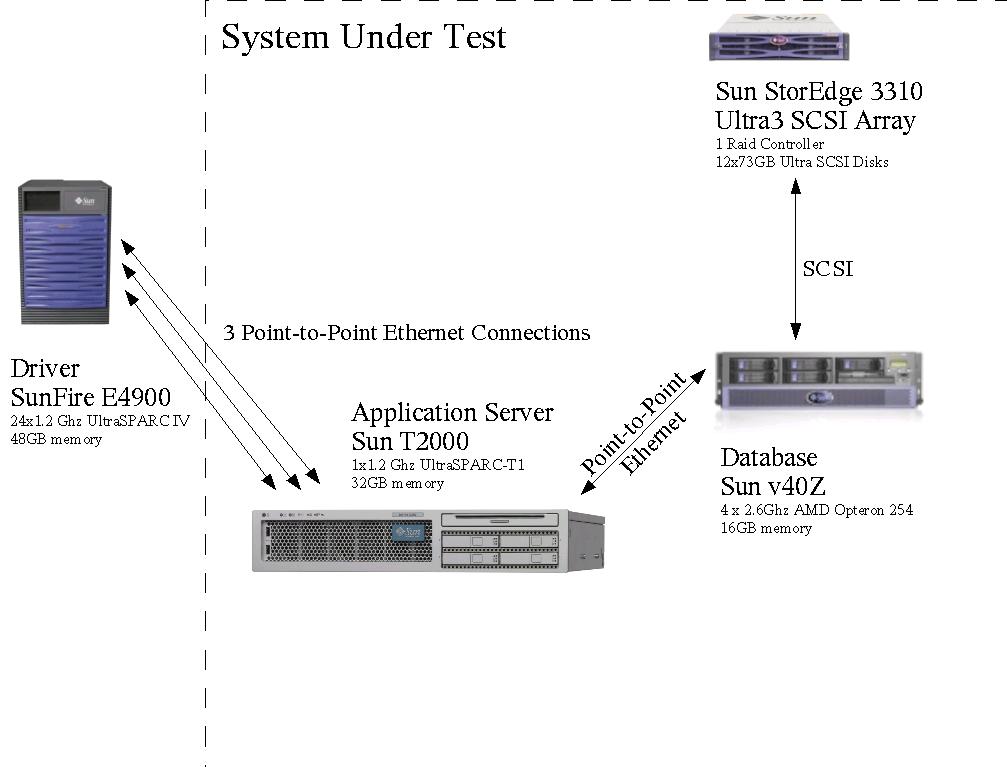

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SPEC has determined that this result was not in compliance with the SPECjAppServer2004 run and reporting rules. Specifically, this result used a configuration which SPEC has determined is not in compliance with section 2.10.1 of the benchmark run rules and hence violates SPECjAppServer2004's atomicity requirements.

SUT Configuration
J2EE Server Nodes: 1   DB Server Nodes: 1
J2EE Server CPUs: 8 cores, 1 chip, 8 cores/chip (4 threads/core)   DB Server CPUs: 4 cores, 4 chips (1 core/chip)
J2EE Instances: 3   DB Instances: 1
Other SUT Components:


Benchmark Settings
Dealer Injection Rate: 268   Ramp Up Time: 900 seconds
# of Dealer Agents: 3   Ramp Down Time: 300 seconds
# of Manufacturing Agents: 5   Steady State Time: 3,600 seconds
DB Load Injection Rate: 300   Trigger Time: 120 seconds

Detailed Results
Dealer Transaction Mix Count Tx. Mix
Purchase 236,714 24.93%
Manage 238,085 25.08%
Browse 474,639 49.99%
Total # Dealer Transactions 949,438
Total # Manufacturing Transactions 622,724
Response Times Average Maximum 90th% Reqd
Purchase 0.76 60.87 0.90 2.00
Manage 0.70 62.97 1.30 2.00
Browse 0.91 62.88 0.90 2.00
Manufacturing 2.12 63.62 4.25 5.00
Reproducibility Run (SPECjAppServer2004 JOPS) 436.71

Sun Java System Application Server 8.2 Platform Edition
Vendor: Sun Microsystems, Inc. Availability: Jan-2006
CTS Version: 1.4 Date Passed CTS: Jan-2006
OS Name: Solaris 10 64-bit
EJB Protocol: RMI/IIOP

Jakarta Tomcat 4.1.31
Vendor: Apache Software Foundation Availability: Oct-2004

Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Vendor: Sun Microsystems, Inc. Availability: Nov-2005
OS Name: Solaris 10 64-bit

Oracle JDBC Driver 10.1.0.3 (Thin)
Vendor: Oracle Corporation Availability: Aug-2004
OS Name: Solaris 10 64-bit

Oracle Database 10g Standard Edition Release 10.1.0.3.0
Vendor: Oracle Corporation Availability: Jan-2005
OS Name: Solaris 10 64-bit

J2EE Application Servers
J2EE Product: Sun Java System Application Server 8.2 Platform Edition
JVM Product: Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
JDBC Product: Oracle JDBC Driver 10.1.0.3 (Thin)
Hardware: J2EE AppServer HW
# of Instances: 3
Interfaces:
Web Interface for the Dealer Domain
Web Interface for the Supplier Domain
EJB Interface for the Dealer Domain
EJB Interface for the Manufacturing Domain
EJB Interface for the Supplier Domain
Notes / Tuning Information
Tunings in domain.xml:
JVM Options: -server -Xms2650m -Xmx2650m -Xss128k
-verbosegc -XX:+DisableExplicitGC -XX:+UseParallelOldGC
-XX:+AggressiveHeap -XX:ParallelGCThreads=8 -XX:LargePageSizeInBytes=256m
-DAllowManagedFieldsInDefaultFetchGroup=true
-Dcom.sun.enterprise.web.connector.grizzly.maxKeepAliveRequests=-1
-Dcom.sun.enterprise.web.connector.grizzly.displayConfiguration=true
-Dcom.sun.enterprise.web.connector.grizzly.useDirectByteBuffer=true
-Dcom.sun.enterprise.web.connector.grizzly.keepAliveTimeoutInSeconds=72000
-Dcom.sun.enterprise.web.connector.grizzly.socketSoTimeout=7200000
-Dcom.sun.enterprise.server.ss.ASQuickStartup=false
-Dcom.sun.enterprise.web.connector.grizzly.maxSelectorReadThread=2
-Dcom.sun.enterprise.transactionlog.url=jdbc:oracle:thin:@ecdata:1521:specdb
-Dcom.sun.enterprise.transactionlog.user=spec
-Dcom.sun.enterprise.transactionlog.password=spec
Disable security manager by remove reference to the server.policy file.
JDBC Pool: max-pool-size=200, steady-pool-size=75
JDBC: MaxStatements=200, ImplicitCachingEnabled=true
HTTP Listener: acceptor-threads=30
HTTP: accessLoggingEnabled=false
ORB: ThreadPool: max-thread-pool-size=50, min-thread-pool-size=50
JMS: ConnectionPool: max-pool-size=250
MDB Container: max-pool-size=8, steady-pool-size=0
Tunings in default-web.xml:
development=false, genStrAsCharArray=true
General Tunings:
All application servers run in FX class via priocntl command

Emulator SW Config
JVM Product: Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Web Product: Jakarta Tomcat 4.1.31
Hardware: Load Driver HW Primary (Emulator)
# of Instances: 1
Notes / Tuning Information
JVM Options: -server -Xmx2048m -Xms2048m -Xss128k
-Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
server.xml: maxProcessors=1000

Database SW Config
DB Product: Oracle Database 10g Standard Edition Release 10.1.0.3.0
Hardware: Database Server HW
# of Instances: 1
Notes / Tuning Information
Oracle tuning in init.ora:
db_name=specdb
control_files		= /data/cntrlspecdb
_undo_autotune		= false
_in_memory_undo=false
_optimizer_cost_based_transformation=off
compatible=10.1.0.2
cursor_space_for_time = TRUE
db_cache_size = 2G
db_block_size = 2048
db_file_multiblock_read_count = 128
db_files = 256
db_block_checksum = false
db_block_checking = false
dml_locks = 600
enqueue_resources = 2000
log_buffer = 8388608
log_checkpoint_interval = 2147483647
log_checkpoints_to_alert=true
log_checkpoint_timeout=1500
processes = 1000
open_cursors = 1000
shared_pool_size = 500M
sessions = 3000
transactions = 3000
transactions_per_rollback_segment = 1
parallel_max_servers = 50
undo_management			= AUTO
undo_retention			= 50
Oracle Patch 4186426 was applied

Driver SW Config
JVM Product: Java (TM) 2 Platform Standard Edition Development Kit 5.0 Update 6 32-bit
Hardware: Load Driver HW Primary (Emulator)
# of Instances: 1
Notes / Tuning Information
JVM Options:  -server -XX:+DisableExplicitGC
-Xmx2048m -Xss128k -Djava.naming.factory.initial=com.sun.appserv.naming.S1ASCtxFactory
-Djava.naming.provider.url=iiop://ecapps:1050
-Djava.naming.provider.url.pkgs=com.sun.enterprise.naming
-Dcom.sun.appserv.iiop.orbconnections=5
-Dcom.sun.appserv.iiop.endpoints=ecapps:1050
-Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0

J2EE AppServer HW (SUT hardware)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Sun Microsystems, Inc.
Model Name: Sun T2000 OS Name: Solaris 10 HW 2 64-bit
Processor: UltraSPARC T1 Filesystem: UFS
MHz: 1200 Disks: 2x73Gb 10K RPM Ultra320 SCSI
# of CPUs: 8 cores, 1 chip, 8 cores/chip (4 threads/core) Network Interface: (4) 1000BaseT Ethernet
Memory (MB): 32768 Other Hardware:
L1 Cache: 16KB(I)+8KB(D) per core # of Systems: 1
L2 Cache: 3MB per chip H/W Available: Dec-2005
Other Cache: OS Available: Dec-2005
Notes / Tuning Information
System Tuning in /etc/system:
set consistent_coloring=2
set lgrp_mem_default_policy=2
set ipge:ipge_taskq_disable=0
set ipge:ipge_tx_ring_size=8192
set ipge:ipge_srv_fifo_depth=16000
set ipge:ipge_bcopy_thresh=512
set ipge:ipge_dvma_thresh=512
set ip:ip_squeue_fanout=1
set ipge:ipge_tx_syncq = 1
set ipge:ipge_reclaim_pending=32
UFS options for /: noatime,nologging,forcedirectio
Solaris patches 118822-20 and 119578-09 were applied

Database Server HW (SUT hardware)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Sun Microsystems, Inc.
Model Name: Sun Fire V40z OS Name: Solaris 10 64-bit
Processor: AMD Opteron 250 Filesystem: UFS
MHz: 2600 Disks: 2x73Gb 10K RPM Ultra320 SCSI
# of CPUs: 4 cores, 4 chips, 1 core/chip Network Interface: (2) Onboard 1000BaseT Ethernet
Memory (MB): 15936 Other Hardware: Sun StorEdge SE3310 Array (12 x 73GB UltraSCSI Disk Array)
L1 Cache: 64KB(I)+64KB(D) # of Systems: 1
L2 Cache: 1MB H/W Available: Mar-2005
Other Cache: OS Available: Mar-2005
Notes / Tuning Information
UFS options for /data: noatime,forcedirectio

Load Driver HW Primary (Emulator) (non-SUT hardware)
Hardware Vendor: Sun Microsystems, Inc. OS Vendor: Sun Microsystems, Inc.
Model Name: Sun Fire E4900 OS Name: Solaris 10 64-bit
Processor: UltraSPARC IV+ Filesystem: UFS
MHz: 1200 Disks: 2 x 36GB
# of CPUs: 24 cores, 24 chips, 1 core/chip Network Interface: (3) Onboard 1000BaseT Ethernet
Memory (MB): 49152 Other Hardware:
L1 Cache: 32KB(I)+64KB(D) # of Systems: 1
L2 Cache: 1MB H/W Available: Aug-2003
Other Cache: OS Available: Mar-2005
Notes / Tuning Information


Benchmark Modifications
Schema Modifications:
  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Table and index initrans were modified
  Automatic segment space management was used for all tablespaces.
  System managed undo was used.
Load Program Modifications:
  The load program was not modified

Benchmark Configuration Information
Isolation Requirement Info:
  BEAN				SPEC_REQUIREMENT	Deployment
  Corp.CustomerEnt		Repeatable Read		Sel-4-Upd
  Corp.CustomerInventoryEnt	Repeatable Read		Sel-4-Upd
  Mfg.InventoryEnt		Repeatable Read		Sel-4-Upd
  Mfg.WorkOrderEnt		Repeatable Read		Sel-4-Upd
  Orders.OrderEnt		Repeatable Read		Sel-4-Upd
  Orders.OrderLineEnt		Repeatable Read		Sel-4-Upd
  Supplier.POEnt		Repeatable Read		Sel-4-Upd
  Supplier.POLineEnt		Repeatable Read		Sel-4-Upd
  Supplier.SComponentEnt	Repeatable Read		Sel-4-Upd
  Util.SequenceEnt		Repeatable Read		Sel-4-Upd
  Mfg.AssemblyEnt		Read Committed		RC
  Mfg.BomEnt			Read Committed		RC
  Mfg.ComponentEnt		Read Committed		RC
  Mfg.LargeOrderEnt		Read Committed		RC
  Mfg.PartEnt			Read Committed		RC
  Orders.ItemEnt		Read Committed		RC
  Supplier.SupplierCompEnt	Read Committed		RC
  Supplier.SupplierEnt		Read Committed		RC

  The ItemEnt bean was cached for 20 minute intervals by setting
  is-read-only-bean=true and refresh-period-in-seconds=1200 in the
  sun-orders.xml deployment descriptor.
  Only the data inside the bean was cached.
Durability Requirement Info:
  To ensure database durability, RAID 1 (mirror disks)
  was used for the database and XA transaction logs maintained on the
  Sun StorEdge 3310 Array.

  Each application server has a pair of mirrored disks
  (using Solaris Volume Manager) to provide
  durability for the message queues.
Storage Requirement Info:
  An 80 minute run at an injection rate of 268 increased storage by 350 MB
  This extrapolates to 8.5 GB of storage for a 24 hour run.
  The database is configured with 400 GB of mirrored data storage.
Argument Passing Semantics:
  Sun Java System Application Server 8.1 uses pass-by-value semantics by default.

Bill of Materials


Supplier  Description                                Product #            Qty
--------  ----------------------------------------   ------------------   ---
Sun	  Sun Fire T2000, 1x1.2 GHz, 32 GB mem	     T20-108B-032GA2C      1
Sun 	  73 GB Ultra320 SCSI Disk		     9256A		   2
Sun	  Solaris 10 Media KIT			     SOLZ9-100C9A7M	   1
Sun 	  SunSpectrum Upgrade: 3YGOLD, 24x7	     W9D-E5000-8-24-3G	   1

Sun	  Sun Fire V40z, 4x2.6 GHz, 16 GB mem	     A57-MGB416GRB7A	   1
Sun	  Ultra320 SCSI Dual Channel Adapter	     X9265A		   1
Sun 	  SunSpectrum Upgrade: 3YGOLD, 24x7	     W9D-A57-24-3G	   1

Sun	  Sun StorEdge 3310, 12 x 73 GB, 1 RAID	     XTA3310R01A1V876	   1
Sun	  SunSpectum Upgrade: 3Y GOLD, 24x7	     W9D-SE3310-24-3G	   1
Sun	  17" Entry Color Monitor		     X7147A		   1
Sun	  PS/2 Keyboard & Mouse			     #320-1261	           1

Sun	  Sun Java System Application Server 8.2     ASSI9-810-R929	   1
	    Platform Edition
	    License per CPU
Sun	  Sun Java System Application Server 8.1     PSSEO-IAL-U99X-3PR	   1
	    2005Q1 Platform  Edition
	    Premium Support per CPU for 3 years

Oracle	  Oracle Database 10g Standard Edition 			           4
	    Per Processor, Unlimited Users for 3 years
Oracle	  Oracle Database Server Support Package			   1
	    for 3 years




Other Benchmark Information
  The submission used round-robin DNS for load-balance of
  all HTTP network requests. The DNS server was hosted
  on one of the application servers.

  This submission used the xerces implementation 2.6.2 provided
  with the Sun Java System Application Server 8.1. The emulator
  used xerces implementation 2.5.0 provided with the Jakarta
  Tomcat 4.1.31.


General Notes
The only errors in the driver log files were those that are normally generated by this benchmark.

XA 2-phase transactions were used to coordinate the interaction between
the database server and JMS server.

Database checkpoints during the Measurement Interval were done by
using the Oracle SQLPlus command: alter system checkpoint


For questions about this result, please contact the submitter: Sun Microsystems Inc.
For other inquiries, please contact webmaster@spec.org

Copyright © 2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 06-Dec-2005
