SPEC Seal of Reviewal SPECjEnterprise®2010 Result
Copyright © 2009-2011 Standard Performance Evaluation Corporation
Oracle Weblogic Server Standard Edition Release 10.3.5 on Cisco UCS B440 M2 Blade Server
26,118.67 SPECjEnterprise2010 EjOPS
Submitter:
Cisco Systems, Inc.
SPEC license # 9019 Test date:
Sep-2011
Software Products
Oracle WebLogic Server Standard Edition Release 10.3.5
Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
Oracle JDBC Driver 11.2.0.2(Thin)
Oracle Database 11g Enterprise Edition Release 11.2.0.2
Software Configurations
JEE Application Server
Emulator Software Config 1
Emulator Software Config 2
Database Software Config
Driver Software Config Primary and Satellites 1-4
Driver Software Config Satellite 5
Driver Software Config Satellites 6-7
Hardware Systems
JEE AppServer HW
Database Server HW
Primary Driver, Satellite Drivers 1-4 and Emulator 1 HW
Satellite Driver 5 and Emulator 2 HW
Satellite Drivers 6-7 HW

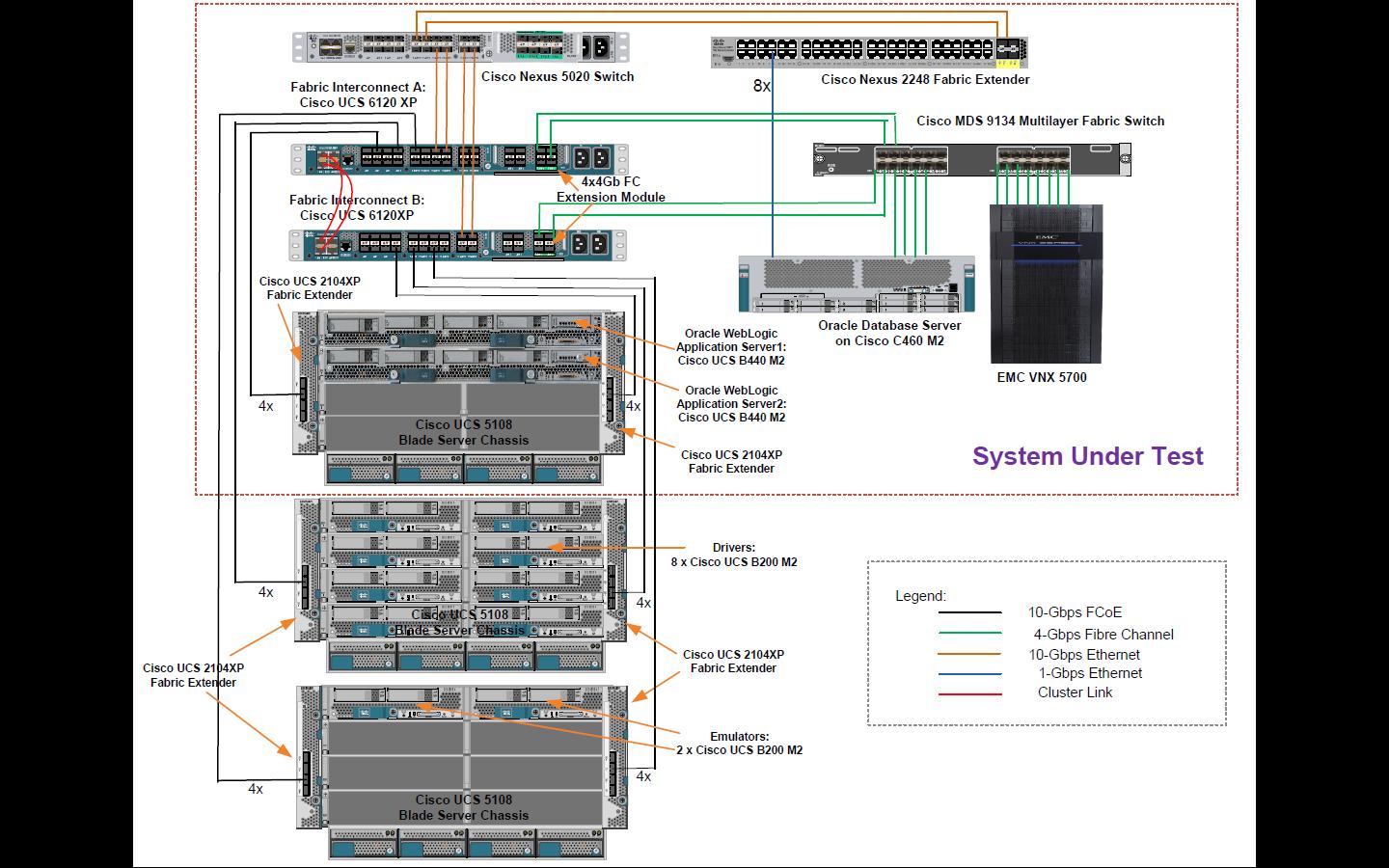

System Configuration Diagram

Benchmark
Modifications
Configuration
Bill of Materials
Other Info
General Notes
Full Disclosure Archive

SUT Configuration
JEE Server Nodes: 2   DB Server Nodes: 1
JEE Server CPUs: 80 cores, 8 chips   DB Server CPUs: 40 cores, 4 chips
JEE Instances: 16   DB Instances: 1
Other SUT Components:
   1x Cisco Nexus 5020 Switch
   1x Cisco Nexus 2248 Fabric Extender
   1x Cisco MDS 9134 Multilayer Fabric Switch
   2x Cisco UCS 6120XP Fabric Interconnects

Benchmark Settings
Dealer Injection Rate: 16,400   Ramp Up Time: 600 seconds
DB Load Injection Rate: 20,000   Steady State Time: 3,600 seconds
# of Dealer Agents: 164,000   Ramp Down Time: 300 seconds
# of Manufacturing Agents: 49,200

Detailed Results
Dealer Transaction Mix Count Tx. Mix Failure Count
Purchase 14,812,902 25.00% 2
Manage 14,811,018 25.00% 0
Browse 29,623,904 50.00% 0
Total # Dealer Transactions 59,247,824
Manufacturing Transaction Mix Count Tx. Mix Failure Count
CreateVehicleEJB 17,390,859 50.00% 3,123
CreateVehicleWS 17,388,545 50.00% 3,071
Total # Manufacturing Transactions 34,779,404
Response Times Average Standard Deviation Maximum 90th% Reqd
Purchase 0.328 0.80 13.789 1.010 2.000
Manage 0.154 0.34 11.006 0.450 2.000
Browse 0.407 0.90 13.714 1.520 2.000
CreateVehicleEJB 0.134 0.36 19.031 0.200 5.000
CreateVehicleWS 0.133 0.30 14.494 0.225 5.000
Reproducibility Run (SPECjEnterprise2010 EjOPS) 26,119.06

Oracle WebLogic Server Standard Edition Release 10.3.5
Vendor: Oracle Corporation Availability: May-2011
CTS Version: 5.0 Date Passed CTS: Feb-2007
OS Name: Oracle Linux 5 Update 6 x86_64
EJB Protocol: RMI/T3

Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
Vendor: Oracle Corporation Availability: Jul-2011
OS Name: Oracle Linux 5 Update 6 x86_64

Oracle JDBC Driver 11.2.0.2(Thin)
Vendor: Oracle Corporation Availability: Sep-2010
OS Name: Oracle Linux 5 Update 6 x86_64

Oracle Database 11g Enterprise Edition Release 11.2.0.2
Vendor: Oracle Corporation Availability: Sep-2010
OS Name: Oracle Linux 5 Update 6 x86_64

JEE Application Server
JEE Product: Oracle WebLogic Server Standard Edition Release 10.3.5
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
JDBC Product: Oracle JDBC Driver 11.2.0.2(Thin)
Hardware: JEE AppServer HW
# of Instances: 2
Interfaces:
Web Interface for the Order Domain
Web Services Interface for the Supplier Domain
EJB Interface for the Manufacturing Domain
Web Services Interface for the Manufacturing Domain
Notes / Tuning Information

-showversion -d64 -server -XX:+AggressiveOpts -XX:+UseLargePages
-XX:+HeapDumpOnOutOfMemoryError -XX:-UseBiasedLocking -Xms6400m -Xmx6400m -Xss128k -XX:NewRatio=2
-XX:+DisableExplicitGC -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCTimeStamps
-XX:+PrintGCDetails -XX:PermSize=384m -XX:MaxPermSize=384m -Dweblogic.ProductionModeEnabled=true
-Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer -Dweblogic.SocketReaders=3
-Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true
-Doracle.jdbc.defaultRowPrefetch=200
-Djavax.xml.parsers.DocumentBuilderFactory=weblogic.xml.jaxp.RegistryDocumentBuilderFactory
-Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -Djaxws.transport.streaming=true

Oracle patches for WebLogic Server Standard Edition 10.3.5 11785246, 9956275
Added Eclipselink 2.1.3 Runtime Library to classpath

Emulator Software Config 1
JEE Product: Oracle WebLogic Server Standard Edition Release 10.3.5
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
Hardware: Primary Driver, Satellite Drivers 1-4 and Emulator 1 HW
# of Instances: 1
Notes / Tuning Information

-Xmx15g -Xms15g -Xmn7g -Xss272k -XX:PermSize=95m -XX:MaxPermSize=512M -XX:+UseLargePages
-XX:+AggressiveOpts -XX:+DisableExplicitGC -verbosegc -Xloggc:emugc.log -XX:+PrintGCDetails
-XX:+PrintGCTimeStamps -XX:+PrintCommandLineFlags -Dweblogic.ProductionModeEnabled=true
-Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer -Dweblogic.SocketReaders=1
-Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true
-Dhttp.keepAlive=false -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl

Emulator Software Config 2
JEE Product: Oracle WebLogic Server Standard Edition Release 10.3.5
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
Hardware: Satellite Driver 5 and Emulator 2 HW
# of Instances: 1
Notes / Tuning Information

-Xmx15g -Xms15g -Xmn7g -Xss272k -XX:PermSize=95m -XX:MaxPermSize=512M -XX:+UseLargePages
-XX:+AggressiveOpts -XX:+DisableExplicitGC -verbosegc -Xloggc:emugc.log -XX:+PrintGCDetails
-XX:+PrintGCTimeStamps -XX:+PrintCommandLineFlags -Dweblogic.ProductionModeEnabled=true
-Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer -Dweblogic.SocketReaders=1
-Dweblogic.management.discover=false -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true
-Dhttp.keepAlive=false -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
-Djavax.xml.parsers.DocumentBuilderFactory=com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderFactoryImpl

Database Software Config
DB Product: Oracle Database 11g Enterprise Edition Release 11.2.0.2
Hardware: Database Server HW
# of Instances: 1
Character Set: US7ASCII
Notes / Tuning Information
db_name                 = specdb
compatible              = 11.2.0.1.0
control_files           = ?/dbs/cntrlspecdb
aq_tm_processes         = 0
db_4k_cache_size        = 60000M
db_8k_cache_size        = 80000M
db_block_checking       = FALSE
db_block_checksum       = FALSE
db_block_size           = 2048
db_cache_advice         = OFF
db_cache_size           = 180000M
db_file_multiblock_read_count = 128
db_files                = 256
db_keep_cache_size      = 20000M
db_writer_processes     = 8
deferred_segment_creation = FALSE
dml_locks               = 2200
filesystemio_options    = DirectIO
log_buffer              = 67108864
log_checkpoint_interval = 0
log_checkpoints_to_alert= TRUE
open_cursors            = 4000
parallel_max_servers    = 100
pga_aggregate_target    = 0
processes               = 4000
query_rewrite_enabled   = FALSE
replication_dependency_tracking = FALSE
session_cached_cursors  = 4000
sessions                = 6080
shared_pool_size        = 24000M
statistics_level        = BASIC
timed_statistics        = FALSE
trace_enabled           = FALSE
transactions            = 15000
transactions_per_rollback_segment = 1
undo_management         = AUTO
undo_retention          = 10
undo_tablespace         = undo_ts


Driver Software Config Primary and Satellites 1-4
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
Hardware: Primary Driver, Satellite Drivers 1-4 and Emulator 1 HW
# of Instances: 5
Notes / Tuning Information

-server -Xms6400M -Xmx6400M -Xss256k -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
-Dhttp.keepAliveCache.lifeTime=600000 -Djava.net.preferIPv4Stack=true
-Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer

Driver Software Config Satellite 5
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
Hardware: Satellite Driver 5 and Emulator 2 HW
# of Instances: 1
Notes / Tuning Information

-server -Xms6400M -Xmx6400M -Xss256k -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
-Dhttp.keepAliveCache.lifeTime=600000 -Djava.net.preferIPv4Stack=true
-Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer

Driver Software Config Satellites 6-7
JVM Product: Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_26
Hardware: Satellite Drivers 6-7 HW
# of Instances: 2
Notes / Tuning Information

-server -Xms6400M -Xmx6400M -Xss256k -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0
-Dhttp.keepAliveCache.lifeTime=600000 -Djava.net.preferIPv4Stack=true
-Dweblogic.MuxerClass=weblogic.socket.NIOSocketMuxer

JEE AppServer HW (SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B440 M2 Blade Server OS Name: Oracle Linux 5 Update 6 x86_64
Processor: Intel(R) Xeon(R) E7-4870 (Intel Turbo Boost Technology up to 2.80GHz) Filesystem: ext3
MHz: 2400 Disks: 4x 73GB 6Gb/s SAS 15K RPM
# of CPUs: 40 cores, 4 chips, 10 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 10 Gigabit Ethernet; 2x 4Gbps Fiber Channel
Memory (MB): 131072 Other Hardware: none
DIMM[0] Count: 32 DIMM[0] Size: 4196
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 2
L2 Cache: 256KB on chip per core H/W Available: Apr-2011
Other Cache: 30MB(I+D) L3 on chip per chip OS Available: Sep-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 10737418240
kernel.shmmax = 4398046511104
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 240000
enable tso and gso
Bind interrupt to a core corresponding to the server instance

Server instances were started using numactl binding 1 instance per chip.
Stop iptables.
Stop irqbalance.
Configure 50000 hugepages.

EMC storage was shared with the Database system. 8 disks were configured as RAID1/0
for jms and server logs.

Database Server HW (SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS C460 M2 Blade Server OS Name: Oracle Linux 5 Update 6 x86_64
Processor: Intel(R) Xeon(R) E7-4870 (Intel Turbo Boost Technology up to 2.80GHz) Filesystem: ext3
MHz: 2400 Disks: 4x 73GB 6Gb/s SAS 15K RPM and 1x EMC VNX 5700
# of CPUs: 40 cores, 4 chips, 10 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 1GBit Quad Port NICs, 2x 4Gb Dual Port Fibre Channel
Memory (MB): 1034071 Other Hardware: none
DIMM[0] Count: 64 DIMM[0] Size: 16384
L1 Cache: 32KB I + 32KB D on chip per core # of Systems: 1
L2 Cache: 256KB(I+D) on chip, per core H/W Available: Apr-2011
Other Cache: 30MB (I+D) on chip per chip OS Available: Sep-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 262144
kernel.sem = 250 32000 100 142
kernel.shmall = 10737418240
kernel.shmmax = 4398046511104
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 60000
enable tso and gso
bind interrupts to all cores in a round-robin mode.

4 listener instances were started using numactl, binding 1 instance per chip.
Stop iptables.
Stop irqbalance.
Configure 250000 hugepages.

External storage configuration:
64x EMC 300 GB 15K 4G FC HDD drives in 4x (8+8) RAID1/0 for data files;
32x EMC 300 GB 15K 4G FC HDD drives in 2x (8+8) RAID1/0 for redo logs.

Primary Driver, Satellite Drivers 1-4 and Emulator 1 HW (non-SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B200 M2 Blade Server OS Name: Oracle Linux 5 Update 6 x86_64
Processor: Quad Core Intel(R) Xeon(R) X5570 Filesystem: ext3
MHz: 2933 Disks: 2x 300GB SAS 10K RPM
# of CPUs: 8 cores, 2 chips, 4 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 10Gb NIC
Memory (MB): 96806 Other Hardware: none
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 6
L2 Cache: 256KB on chip per core H/W Available: Apr-2010
Other Cache: 8MB L3 on chip per chip OS Available: Sep-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 1073741824
kernel.shmmax = 51539607552
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1
kernel.pid_max = 4194303

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 240000
enable tso and gso

Stop iptables.
Stop irqbalance.

Emulator instances were started using numactl, binding 1 instance per chip.
Bind interrupt to a core corresponding to the server instance
Configure 45000 hugepages.

Satellite Driver 5 and Emulator 2 HW (non-SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B200 M2 Blade Server OS Name: Oracle Linux 5 Update 6 x86_64
Processor: Quad Core Intel(R) Xeon(R) E5540 Filesystem: ext3
MHz: 2530 Disks: 2x 300GB SAS 10K RPM
# of CPUs: 8 cores, 2 chips, 4 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 10Gb NIC
Memory (MB): 96806 Other Hardware: none
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 1
L2 Cache: 256KB on chip per core H/W Available: Apr-2010
Other Cache: 8MB L3 on chip per chip OS Available: Sep-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 1073741824
kernel.shmmax = 51539607552
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1
kernel.pid_max = 4194303

For each of the NICs:
set arp_announce = 2
set arp_ignore = 1
set txqueuelen 240000
enable tso and gso

Stop iptables.
Stop irqbalance.

Emulator instances were started using numactl, binding 1 instance per chip.
Bind interrupt to a core corresponding to the server instance
Configure 45000 hugepages.

Satellite Drivers 6-7 HW (non-SUT hardware)
Hardware Vendor: Cisco OS Vendor: Oracle Corporation
Model Name: Cisco UCS B200 M2 Blade Server OS Name: Oracle Linux 5 Update 6 x86_64
Processor: Quad Core Intel(R) Xeon(R) E5520 Filesystem: ext3
MHz: 2260 Disks: 2x 300GB SAS 10K RPM
# of CPUs: 8 cores, 2 chips, 4 cores/chip, 2 threads/core (Hyper-Threading) Network Interface: 2x 10Gb NIC
Memory (MB): 96806 Other Hardware: none
L1 Cache: 32KB(I)+32KB(D) on chip per core # of Systems: 2
L2 Cache: 256KB on chip per core H/W Available: Apr-2010
Other Cache: 8MB L3 on chip per chip OS Available: Sep-2010
Notes / Tuning Information
Added to /etc/sysctl.conf:
fs.file-max = 524288
kernel.sem = 250 32000 100 128
kernel.shmall = 1073741824
kernel.shmmax = 51539607552
net.core.netdev_max_backlog = 400000
net.core.optmem_max = 30000000
net.core.rmem_default = 30000000
net.core.rmem_max = 30000000
net.core.somaxconn = 40000
net.core.wmem_default = 30000000
net.core.wmem_max = 30000000
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_max_syn_backlog = 30000
net.ipv4.tcp_max_tw_buckets = 2000000
net.ipv4.tcp_mem = 30000000 30000000 30000000
net.ipv4.tcp_rmem = 30000000 30000000 30000000
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_wmem = 30000000 30000000 30000000
vm.zone_reclaim_mode=1

Benchmark Modifications
Schema Modifications:
  Tablespace sizes were increased to support the Injection rate.
  Scripts to create the DB are included in the FDA.
  Table and index initrans were modified.
  Table M_WORKORDER, O_ORDERLINE and O_ORDERS were horizontally partitioned.
  Table M_BOM, M_INVENTORY and M_PARTS were hash clustered.
  System managed undo was used.
Load Program Modifications:
  No modifications to the load programs were made.

Benchmark Configuration Information
Isolation Requirement Info:
  The ItemEnt bean was cached for 20 minute intervals by setting:
  eclipselink.query-results-cache.expiry=1200000
  in the ord-orm.xml deployment descriptor.

  The benchmark meets the isolation level requirements by
  version column checking on entities against
  the database.
Durability Requirement Info:
  To ensure database durability, RAID 1 was used for the
  database files and database redo logs
Storage Requirement Info:
  An 75 minute run at an injection rate of 16400 increased storage by 63.0 GB
  This extrapolates to 1209 GB storage for a 24 hour run.
  The database was configured with 28 TB of mirrored storage.


Bill of Materials
Supplier  Description                                   Product #          Qty
--------  -------------------------------------------   ----------------   ---

Application Server
Cisco     Cisco UCS B440 M2 Blade Server                B440-BASE-M2UPG      2
Cisco     Ten Core Intel(R) Xeon(R) Processor E7-4870   UCS-CPU-E74870       8
-         30MB L3 cache, 2.40GHz, 130W, Turbo
Cisco     8GB DDR3-1333MHz RDIMM/PC3-10600/2x4GB Kit    A02-M308GD5-2       32
Cisco     CNA M72KR-Q QLogic Converged Network Adapter  N20-AQ0102           4
Cisco     73GB 6Gb SAS 15K RPM SFF HDD                  A03-D073GC2          8

Database Server
Cisco     Cisco UCS C460 M2 Rack Mount Server           UCSC-BASE-M2-C460    1
Cisco     Ten Core Intel(R) Xeon(R) Processor E7-4870   UCS-CPU-E74870       4
-         30MB L3 cache, 2.40GHz, 130W, Turbo
Cisco     32GB DDR3-1333MHz RDIMM/PC3-10600/2x16GB Kit  A02-M332GB3-2-L     32
Cisco     Memory Riser Board for C460 M2                UCSC-MRB-002-C460    8
Qlogic    QLE2462,4Gb dual port Fibre Channel Host Bus Adapter N2XX-AQPCI03  2
Intel     Intel Quad port GbE Controller(E1G44ETG1P20)  N2XX-AIPCI02         2
Cisco     73GB 6Gb SAS 15K RPM SFF HDD                  A03-D073GC2          4

Storage
EMC       VNX5700 SPE 4X6G SAS BE-EMC RACK              VNX5700SPE           1
EMC       UNISPHERE FOR UNIFIED FOR A VNX 5700          UNIU-V57             1
EMC       VNX 40U RACK WITH CONSOLE                     VNX6GSDAE15P         1
EMC       VNX57/75 15X3.5 IN 6GB SAS PRIMARY DAE-EMC RACK VNXSPS1KW          1
EMC       VNX 15X3.5 IN 6GB SAS EXP DAE -EMC RACK       VNXSPS1KW            8
EMC       EMC 300GB 15K 6GB SAS 3.5                     VX-VS15-300        120
-         64 drives in 4x (8+8) RAID1/0 for data
-         32 drives in 2x (8+8) RAID1/0 for logs
-         8  drives in 1x (8+8) RAID1/0 for jms and server logs
-         4  drives used for EMC Software
-         10 drives configured as spares

Blade Server Enclosure
Cisco     UCS 5108 Blade Server Chassis                 N20-C6508            1
Cisco     UCS 2104XP Fabric Extender/4 external 10Gb ports  N20-I6584        2
Cisco     UCS 6120XP 20-port Fabric Interconnect        N10-S6100            2
Cisco     4-port 10 GE/4-port 4Gb FC/Expansion module   N10-E0440            2

Cisco      Cisco Nexus 5020 Switch Bundle               N5020P-6N2248TP-B    1
Cisco      Cisco Nexus 2248 Fabric Extender             N2K-C2248TF-1GE      1
Cisco      Cisco MDS 9134 Multilayer Fiber Switch       DS-C9134AP-K9        1

Oracle     Oracle Linux Basic Support for 3 years                            3

Oracle     Oracle Database 11g Enterprise Edition, Per Processor
-          Unlimited Users for 3 years                                      20*
Oracle     Partitioning, Per Processor, Unlimited Users for 3 years         20*
Oracle     Oracle Premium Support for 3 years                                2

Oracle     Oracle WebLogic Server Standard Edition Release 10.3.5
-          Per Processor for 3 years                                        40*
Oracle     Oracle Premium Support for 3 years                                2

(* 20 = 0.5 * 40 and 40 = 0.5 * 80)  Explanation:  For the purposes of countingi
the number of processors which require licensing, a multicore chip with 'n' cores
shall be determined by multiplying 'n' cores by a factor of 0.5).



Other Benchmark Information
  DNS round robin load balancing was used with the DNS server running on the Database system.


General Notes
The only errors in the driver log files were those that are
normally generated by this benchmark.

On the database, incremental checkpointing ensured that no buffer will
remain dirty (in the cache) for more than the allowed time.



For questions about this result, please contact the submitter: Cisco Systems, Inc.
For other inquiries, please contact webmaster@spec.org

Copyright © 2009-2011 Standard Performance Evaluation Corporation

First published at SPEC.org on 30-Sep-2011
