SPECjEnterprise®2010 Result Copyright © 2009-2014 Standard Performance Evaluation Corporation |
Oracle WebLogic Server Standard Edition Release 12.1.2 on Oracle SPARC T5-2 |
|
Submitter: Oracle Corporation |
SPEC license # 73 | Test date: Dec-2013 |

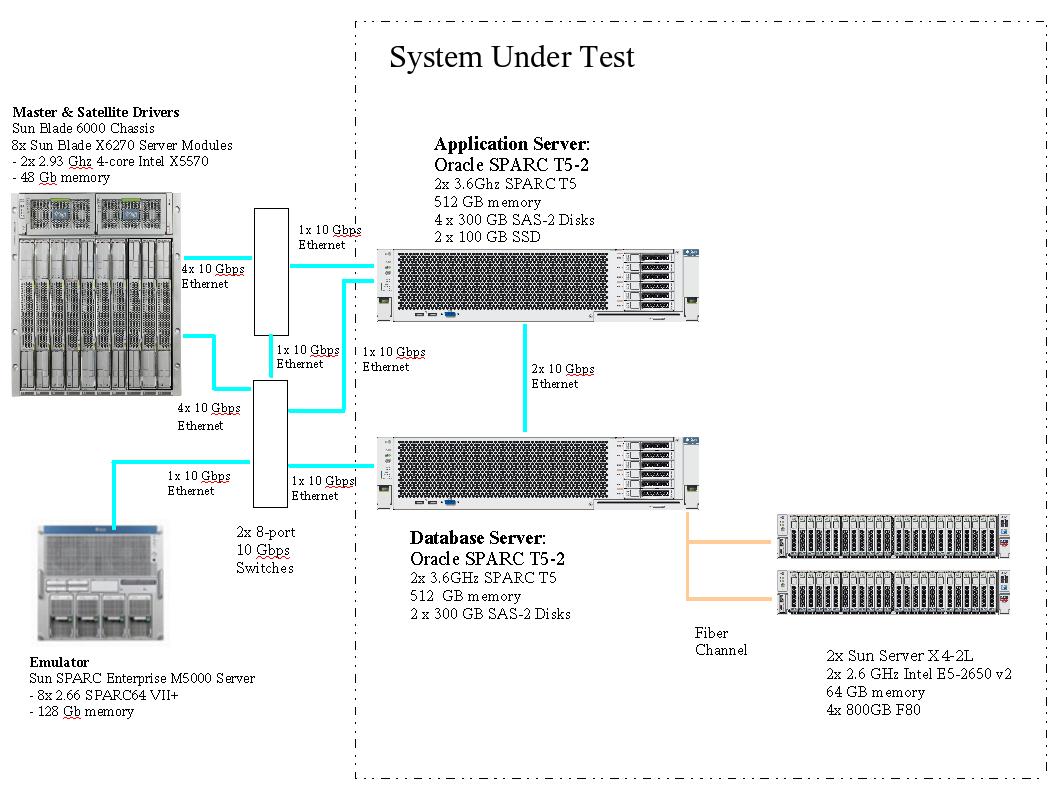

SUT Configuration | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||
|
Benchmark Settings | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Detailed Results | ||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
Oracle WebLogic Server Standard Edition Release 12.1.2 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Java HotSpot(TM) 64-Bit Server VM on Solaris, version 1.7.0_45 | ||||||
---|---|---|---|---|---|---|
|
Oracle JDBC Driver 12.1.0.1(Thin) | ||||||
---|---|---|---|---|---|---|
|
Oracle Database 12c Enterprise Edition Release 12.1.0.1 | ||||||
---|---|---|---|---|---|---|
|
Oracle Grid Infrastructure 12c Release 12.1.0.1 | ||||||
---|---|---|---|---|---|---|
|
Java EE Application Server | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
|
Emulator Software Config | ||||||||
---|---|---|---|---|---|---|---|---|
|
||||||||
|
Database Software Config | ||||||||
---|---|---|---|---|---|---|---|---|
|
||||||||
|
Driver Software Config | ||||||
---|---|---|---|---|---|---|
|
||||||
|
Java EE AppServer (SUT hardware) | ||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||
|
Database Server HW (SUT hardware) | ||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||
|
Load Driver HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Emulator HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Benchmark Modifications |
---|
Schema Modifications:
Tablespace sizes were increased to support the Injection rate. Scripts to create the DB are included in the FDA. Table and index initrans were modified. Table M_WORKORDER, O_CUSTINVENTORY, O_CUSTOMER, O_ORDERLINE and O_ORDERS were horizontally partitioned. Table M_BOM, M_INVENTORY and M_PARTS were hash clustered. System managed undo was used. |
Load Program Modifications:
No modifications to the load programs were made. |
Benchmark Configuration Information |
---|
Isolation Requirement Info:
The ItemEnt bean was cached for 20 minute intervals by setting: eclipselink.query-results-cache.expiry=1200000 in the ord-orm.xml deployment descriptor. The benchmark meets the isolation level requirements by version column checking on entities against the database. |
Durability Requirement Info:
To ensure database durability, RAID 1 was used for the database files and database redo logs maintained on the two Sun Server X4-2L storage servers. The application server system was configured with 2 mirrored SSDs for jms and server logs. |
Storage Requirement Info:
A 75 minute run at an injection rate of 10700 increased storage by 27 GB This extrapolates to 518 GB storage for a 24 hour run. The database was configured with 2.98 TB of mirrored storage. |
Bill of Materials |
---|
Supplier Description Product # Qty -------- ------------------------------------------- ---------------- --- Application Server: Oracle SPARC T5-2 server: model family 7104208 1 Oracle SPARC T5-2 Server, Base, 2xT5 16C 3.6GHz 7104190 1 Oracle 16GB DDR3 Memory DIMM 7104198 32 Oracle 300 GB 10K RPM SAS-2 HDD 7105211 4 Oracle 100 GB SSD 7101422 2 Oracle 10GBE Dual Port PCIe SFP+ 1109A-Z 2 Oracle 10 GigE Dual Rate SFP+ SR Transceiver, MMF 2129A 4 Oracle Power Cord: North America, 2 meter 333F-20-10-NEMA 2 Oracle Oracle Solaris 11.1 7104202 1 Database Server: Oracle SPARC T5-2 server: model family 7104208 1 Oracle SPARC T5-2 Server, Base, 2xT5 16C 3.6GHz 7104190 1 Oracle 16GB DDR3 Memory DIMM 7104198 32 Oracle 300 GB 10K RPM SAS-2 HDD 7105211 2 Oracle Sun StorageTek 8Gb FC PCI-E HBA Dual Port SG-XPCIE2FC-QF8-N 2 Oracle 10GBE Dual Port PCIe SFP+ 1109A-Z 1 Oracle 10 GigE Dual Rate SFP+ SR Transceiver, MMF 2129A 2 Oracle Power Cord: North America, 2 meter 333F-20-10-NEMA 2 Oracle Oracle Solaris 11.1 7104202 1 Storage: Oracle Sun Server X4-2L: model family 7106547 2 Oracle Sun Server X4-2L base chassis 7106601 2 Oracle 24 Slot Disk cage 7102742 2 Oracle 2.6 GHz Intel Xeon E5-2650 v2 7106543 4 Oracle Heatsink 7102745 4 Oracle 8GB DDR3 Memory DIMM 7100730 16 Oracle 600 GB 10K RPM SAS-2 HDD RA-SS2CF-600G10K 4 Oracle Sun Storage 6 Gb SAS PCIe HBA, Int SGX-SAS6-INT-Z 2 Oracle Sun StorageTek 8Gb FC PCI-E HBA Dual Port SG-XPCIE2FC-QF8-N 2 Oracle Flash Accelerator F80 PCI card 7107091 8 Oracle Filler panel for disk drives 6331A-N 40 Oracle Power Cord 333V-10-10-C14 4 Oracle Oracle Solaris 11.1 7100734 1 Oracle Oracle Premier Support for Systems 3 years Q-PREM-SPRT-SYS 1 Oracle Oracle Grid Infrastructure 12c ** Oracle Oracle Database 12c Enterprise Edition - Per Processor for 3 years (for 16 processors) 16* Oracle Partitioning, Per Processor for 3 years (for 16 processors) 16* Oracle Oracle Premium Support for 3 years 2 Oracle Oracle WebLogic Server Standard Edition Release 12.1.2 - Per Processor for 3 years (for 16 processors) 16* Oracle Oracle Premium Support for 3 years 1 (* 16 = 0.5 * 32) Explanation: For the purposes of counting the number of processors which require licensing, a multicore chip with 'n' core shall be determined by multiplying 'n' cores by a factor of 0.5. ** Included with Oracle Database 12c Enterprise Edition |
Other Benchmark Information |
---|
DNS round robin load balancing was used with the DNS server running on the database server. The DNS named process was run in the RT class using /usr/bin/priocntl -s -c RT -p 1 -i pid. All network connections were 10 Gbit. |
General Notes |
---|
The only errors in the driver log files were those that are normally generated by this benchmark. On the database, incremental checkpointing ensured that no buffer will remain dirty (in the cache) for more than the allowed time. |
For questions about this result, please contact the submitter: Oracle Corporation For other inquiries, please contact webmaster@spec.org
Copyright © 2009-2014 Standard Performance Evaluation Corporation
First published at SPEC.org on 22-Jan-2014
