SPECjEnterprise®2010 Result Copyright © 2009-2016 Standard Performance Evaluation Corporation |
Oracle Weblogic Server Standard Edition Release 12.2.1 on Oracle Server X6-2 | NON-COMPLIANT (NC) RESULT |
Submitter: Oracle Corporation |
SPEC license # 73 | Test date: Mar-2016 |
SPEC has determined that this result was not in compliance with the SPECjEnterprise2010 run and reporting rules. Specifically, the submitter has notified SPEC that the Oracle Linux 6.6 operating system is not supported on Oracle Server X6-2 systems. An updated result using a supported operating system version is available at https://www.spec.org/jEnterprise2010/results/res2016q3/jEnterprise2010-20160622-00061.html.

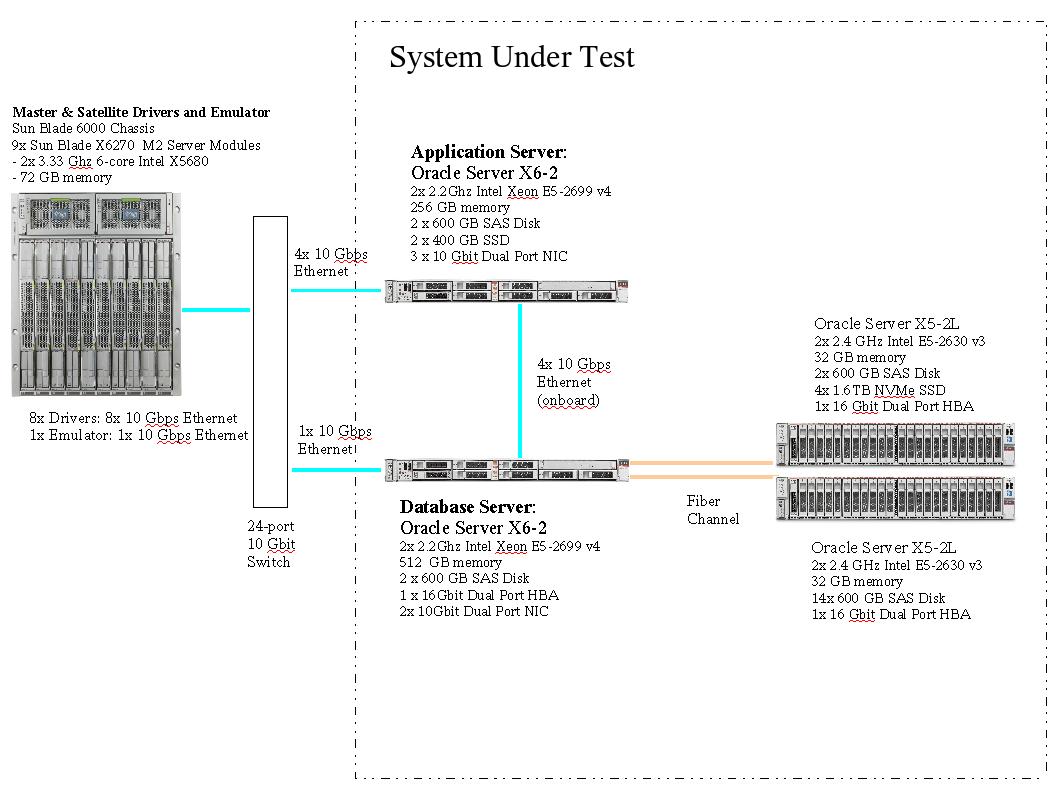

SUT Configuration | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||
|
Benchmark Settings | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Detailed Results | ||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
Oracle WebLogic Server Standard Edition Release 12.2.1 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.8.0_74 | ||||||
---|---|---|---|---|---|---|
|
Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.8.0_60 | ||||||
---|---|---|---|---|---|---|
|
Oracle JDBC Driver 12.1.0.2(Thin) | ||||||
---|---|---|---|---|---|---|
|
Oracle Database 12c Enterprise Edition Release 12.1.0.2 | ||||||
---|---|---|---|---|---|---|
|
Oracle Grid Infrastructure 12c Release 12.1.0.2 | ||||||
---|---|---|---|---|---|---|
|
Java EE Application Server | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
|
Emulator Software Config | ||||||||
---|---|---|---|---|---|---|---|---|
|
||||||||
|
Database Software Config | ||||||||
---|---|---|---|---|---|---|---|---|
|
||||||||
|
Driver Software Config | ||||||
---|---|---|---|---|---|---|
|
||||||
|
Java EE AppServer HW (SUT hardware) | ||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||
|
Database Server HW (SUT hardware) | ||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||
|
Load Driver & Emulator HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Benchmark Modifications |
---|
Schema Modifications:
Tablespace sizes were increased to support the Injection rate. Scripts to create the DB are included in the FDA. Table and index initrans were modified. Table M_WORKORDER, O_CUSTINVENTORY, O_ORDERLINE and O_ORDERS were horizontally partitioned. Table M_BOM, M_INVENTORY and M_PARTS were hash clustered. System managed undo was used. |
Load Program Modifications:
The Load program was modified to be able to run on JDK 8. Entry 1.8 was added in faban/harness/faban/master/bin/startup.sh, as an appropriate JAVA_VERSION. Modified source file is included in the FDA - FDA/Deploy/faban_fix |
Benchmark Configuration Information |
---|
Isolation Requirement Info:
The ItemEnt bean was cached for 20 minute intervals by setting: eclipselink.query-results-cache.expiry=1200000 in the ord-orm.xml deployment descriptor. The benchmark meets the isolation level requirements by version column checking on entities against the database. |
Durability Requirement Info:
To ensure database durability, RAID 1 was used for the database files and database redo logs maintained on the two Sun Server X5-2L storage servers. The application server was configured with 2 SSD drives configured with RAID 1 for jms and server logs. |
Storage Requirement Info:
A 75 minute run at an injection rate of 17300 increased storage by 34 GB This extrapolates to 664 GB storage for a 24 hour run. The database was configured with 4.8 TB of mirrored storage. |
Bill of Materials |
---|
Supplier Description Product # Qty -------- ------------------------------------------- ---------------- --- Application Server Oracle Oracle Server X6-2: model family 7113206 1 Oracle Oracle Server X6-2: base chassis 7113252 1 Oracle 2.2GHz Intel 22-Core Xeon E5-2699 v4 7113235 2 Oracle Heatsink for 1U 7110350 2 Oracle 8 by 2.5'' Disk Cage 7110339 1 Oracle 16GB DDR4-2400 DIMM 7113240 16 Oracle 600GB 10K RPM SAS-3 HDD 7111102 2* Oracle 400GB 2.5'' SAS-3 SSD 7110932 2 Oracle Sun Dual 10 GigE SFP+ PCIe 2.0 NIC 1109A-Z 2 Oracle 10 GigE Dual Rate SFP+ SR Transceiver, MM 2129A 4 Oracle 2.5-inch HDD filler panel 6331A-N 4 Oracle DVD bay filler panel 7110359 1 Oracle Sun Dual Port 10 GbE PCIe 2.0 Adapter 7100563 1 Oracle Power Cord 333V-10-10-C14 2 Oracle Oracle Linux 6.6 7105726 1 Database Server Oracle Oracle Server X6-2: model family 7113206 1 Oracle Oracle Server X6-2: base chassis 7113252 1 Oracle 2.2GHz Intel 22-Core Xeon E5-2699 v4 7113235 2 Oracle Heatsink for 1U 7110350 2 Oracle 8 by 2.5'' Disk Cage 7110339 1 Oracle 32GB DDR4-2400 DIMM 7113243 16 Oracle 600GB 10K RPM SAS-3 HDD 7111102 2* Oracle Sun Storage 16 Gbit FC PCI-E HBA Dual Port 7101673 1 Oracle Sun Dual 10 GigE SFP+ PCIe 2.0 NIC 1109A-Z 1 Oracle 10 GigE Dual Rate SFP+ SR Transceiver, MM 2129A 2 Oracle 2 Sun Storage 16Gb FC shortwave optics 7101675 1 Oracle DVD bay filler panel 7110359 1 Oracle Sun Dual Port 10 GbE PCIe 2.0 Adapter 7100563 1 Oracle 2.5-inch HDD filler panel 6331A-N 6 Oracle Power Cord 333V-10-10-C14 2 Oracle Oracle Linux 6.6 7105726 1 Storage HW Oracle Oracle Server X5-2L: model family 7110317 1 Oracle Oracle Server X5-2L: base chassis 7110338 1 Oracle 2.4 GHz Intel Xeon E5-2630 v3 7110349 2 Oracle 24 Slot Disk cage 7110341 1 Oracle Heatsink 7110351 2 Oracle 8GB DDR4-2133 DIMM 7110352 4 Oracle 600GB 10K RPM SAS-3 HDD 7111102 2* Oracle Sun Storage 16 Gbit FC PCI-E HBA Dual Port 7101673 1 Oracle 2 Sun Storage 16Gb FC shortwave optics 7101675 1 Oracle NVMe PCIe 3.0 Switch Ctlr 7110357 1 Oracle 1.6 TB NVMe PCIe 3.0 SSD 7110926 4 Oracle Filler panel for disk drives 6331A-N 18 Oracle DVD bay filler panel 7110359 1 Oracle PCIe filler panel 7102748 3 Oracle Power Cord 333V-10-10-C14 2 Oracle Oracle Solaris 11.3 7100734 1 Oracle Oracle Server X5-2L: model family 7110317 1 Oracle Oracle Server X5-2L: base chassis 7110338 1 Oracle 24 Slot Disk cage 7110341 1 Oracle 2.4 GHz Intel Xeon E5-2630 v3 7110349 2 Oracle Heatsink 7110351 2 Oracle 8GB DDR4-2133 DIMM 7110352 4 Oracle 600GB 10K RPM SAS-3 HDD 7111102 14 Oracle Sun Storage 16 Gbit FC PCI-E HBA Dual Port 7101673 1 Oracle 2 Sun Storage 16Gb FC shortwave optics 7101675 1 Oracle Filler panel for disk drives 6331A-N 12 Oracle DVD bay filler panel 7110359 1 Oracle PCIe filler panel 7102748 4 Oracle Power Cord 333V-10-10-C14 2 Oracle Oracle Solaris 11.3 7100734 1 Oracle Oracle Premier Support for Systems 3 years Q-PREM-SPRT-SYS 1 Oracle Oracle Grid Infrastructure 12c ** Oracle Oracle Database 12c Enterprise Edition - Per processor for 3 years (for 44 processors) 44 Oracle Partitioning, Per Processor for 3 years (for 44 processors) 44 Oracle Oracle Premium Support for 3 years 2 Oracle Oracle WebLogic Server Standard Edition Release 12.2.1 - Per Processor for 3 years (for 44 processors) 44 Oracle Oracle Premium Support for 3 years 1 * Faster SAS-3 drives in the BOM are substituted for SAS-2 drives in the tested system ** Included with Oracle Database 12c Enterprise Edition |
Other Benchmark Information |
---|
DNS round robin load balancing was used. DNS server ran on DB node. All network connections were 10 Gbps. |
General Notes |
---|
The only errors in the driver log files were those that are normally generated by this benchmark. On the database, incremental checkpointing ensured that no buffer will remain dirty (in the cache) for more than the allowed time. |
For questions about this result, please contact the submitter: Oracle Corporation For other inquiries, please contact webmaster@spec.org
Copyright © 2009-2016 Standard Performance Evaluation Corporation
