SPECjEnterprise®2010 Result Copyright © 2009-2016 Standard Performance Evaluation Corporation |
Oracle WebLogic Server Standard Edition Release 12.2.1 on SPARC S7-2 |
|
Submitter: Oracle Corporation |
SPEC license # 73 | Test date: Jun-2016 |

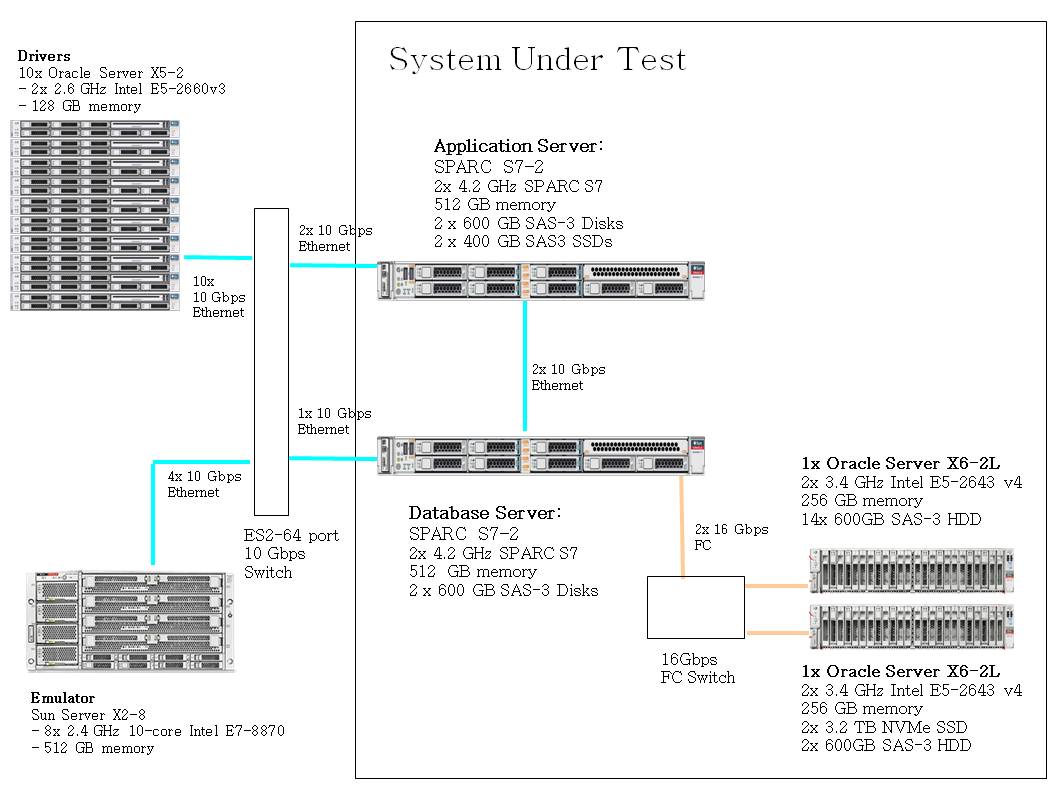

SUT Configuration | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||
|
Benchmark Settings | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Detailed Results | ||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
Oracle WebLogic Server Standard Edition Release 12.2.1 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Java HotSpot(TM) 64-Bit Server VM on Solaris, version 1.8.0_92 | ||||||
---|---|---|---|---|---|---|
|
Java HotSpot(TM) 64-Bit Server VM on Solaris, version 1.8.0_60 | ||||||
---|---|---|---|---|---|---|
|
Oracle JDBC Driver 12.1.0.2(Thin) | ||||||
---|---|---|---|---|---|---|
|
Oracle Database 12c Enterprise Edition Release 12.1.0.2 | ||||||
---|---|---|---|---|---|---|
|
Oracle Grid Infrastructure 12c Release 12.1.0.2 | ||||||
---|---|---|---|---|---|---|
|
Java EE Application Server | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
|
Emulator Software Config | ||||||||
---|---|---|---|---|---|---|---|---|
|
||||||||
|
Database Software Config | ||||||||
---|---|---|---|---|---|---|---|---|
|
||||||||
|
Driver Software Config | ||||||
---|---|---|---|---|---|---|
|
||||||
|
Java EE AppServer HW (SUT hardware) | ||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||
|
Database Server HW (SUT hardware) | ||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||
|
Load Driver HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Emulator HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Benchmark Modifications |
---|
Schema Modifications:
Tablespace sizes were increased to support the Injection rate. Scripts to create the DB are included in the FDA. Table and index initrans were modified. Table M_WORKORDER, O_CUSTINVENTORY, O_CUSTOMER, O_ORDERLINE and O_ORDERS were horizontally partitioned. Table M_BOM, M_INVENTORY and M_PARTS were hash clustered. System managed undo was used. |
Load Program Modifications:
The Load program was modified to be able to run on JDK 8. Entry 1.8 was added in faban/harness/faban/master/bin/startup.sh, as an appropriate JAVA_VERSION. Modified source file is included in the FDA - FDA/Deploy/faban_fix |
Benchmark Configuration Information |
---|
Isolation Requirement Info:
The ItemEnt bean was cached for 20 minute intervals by setting: eclipselink.query-results-cache.expiry=1200000 in the ord-orm.xml deployment descriptor. The benchmark meets the isolation level requirements by version column checking on entities against the database. |
Durability Requirement Info:
To ensure database durability, RAID 1 was used for the database files and database redo logs maintained on the two Oracle Server X6-2L storage servers. The application server was configured with 2 SSD drives configured with RAID 1 for jms and server logs. |
Storage Requirement Info:
An 80 minute run at an injection rate of 9050 increased storage by 19 GB This extrapolates to 344 GB storage for a 24 hour run. The database was configured with 3.0 TB of mirrored storage. |
Bill of Materials |
---|
Supplier Description Product # Qty -------- ------------------------------------------- ---------------- --- Application Server Oracle SPARC S7-2 server: model family 7112913 1 Oracle SPARC S7-2 server: base with - 2 SPARC S7 8-core 4.27GHz processors 7112869 1 Oracle 32GB DDR4-2400 Memory DIMM 7112909 16 Oracle 600 GB 10K rpm 2.5 inch SAS-3 HDD 7111102 2 Oracle 400 GB SAS-3 2.5 inch SSD 7110932 2 Oracle 12 Gb SAS PCIe HBA, internal 7113249 1 Oracle Sun Dual Port 10 GBase-T Adapter 7100563 2 Oracle 2.5-inch HDD Filler Panel 6331A-N 4 Oracle Power Cord N.A./Asia 2.5m 333A-25-15-NEMA 2 Oracle PCI filler panel 7102748 2 Oracle Oracle Solaris 11.3 preinstall 7114240 1 Database Server: Oracle SPARC S7-2 server: model family 7112913 1 Oracle SPARC S7-2 server: base with - 2 SPARC S7 8-core 4.27GHz processors 7112869 1 Oracle 32GB DDR4-2400 Memory DIMM 7112909 16 Oracle 600 GB 10K rpm 2.5 inch SAS-3 HDD 7111102 2 Oracle 12 Gb SAS PCIe HBA, internal 7113249 1 Oracle Sun Storage Dual 16 Gb FC PCIe universal HBA 7101683 1 Oracle 2 Sun Storage 16 Gbit FC short wave optics 7101685 1 Oracle Sun Dual Port 10 GBase-T Adapter 7100563 1 Oracle 2.5-inch HDD filler panel 6331A-N 6 Oracle Power Cord N.A./Asia 2.5m 333A-25-15-NEMA 2 Oracle PCI filler panel 7102748 2 Oracle Oracle Solaris 11.3 preinstall 7114240 1 Storage HW Oracle Oracle Server X6-2L: model family 7113257 1 Oracle Oracle Server X6-2L: base chassis 7114231 1 Oracle 3.4 GHz Intel Xeon E5-2643 v4 7113238 2 Oracle 24 Slot Disk Cage 7113280 1 Oracle Heatsink 7113262 2 Oracle 16GB DDR4-2400 DIMM 7113240 16 Oracle 600GB 10K RPM SAS-3 HDD 7111102 2 Oracle Sun Storage 16 Gbit FC PCI-E HBA Dual Port 7101673 1 Oracle Sun Storage 16Gb FC shortwave optics 7101675 1 Oracle NVMe PCIe 3.0 Switch Ctlr 7110632 1 Oracle 3.2 TB NVMe PCIe 3.0 SSD 7113804 2 Oracle Filler panel for disk drives 6331A-N 2 Oracle DVD bay filler panel 7110359 1 Oracle PCIe filler panel 7102748 3 Oracle Power Cord N.A./Asia 2.5m 333A-25-15-NEMA 2 Oracle Oracle Solaris Preinstall 7100734 1 Oracle Oracle Server X6-2L: model family 7113257 1 Oracle Oracle Server X6-2L: base chassis 7113278 1 Oracle 3.4 GHz Intel Xeon E5-2643 v4 7113238 2 Oracle 24 Slot Disk Cage 7113280 1 Oracle Heatsink 7113262 2 Oracle 16GB DDR4-2400 DIMM 7113240 16 Oracle 600GB 10K RPM SAS-3 HDD 7111102 14 Oracle Sun Storage 16 Gbit FC PCI-E HBA Dual Port 7101673 1 Oracle 2x Sun Storage 16Gb FC shortwave optics 7101675 1 Oracle Filler panel for disk drives 6331A-N 10 Oracle PCIe filler panel 7102748 4 Oracle Power Cord N.A./Asia 2.5m 333A-25-15-NEMA 2 Oracle Oracle Solaris Preinstall 7100734 1 Switch Oracle Brocade 16Gbit FC Switch 7103553 1 Oracle Powercord N.A./Asia 2.5m X311L-N 2 Oracle Brocade 16Gb SFP+ FC shortwave optics 7103543 24 Oracle Oracle Premier Support for Systems 3 years Q-PREM-SPRT-SYS 1 Oracle Oracle Grid Infrastructure 12c ** Oracle Oracle Database 12c Enterprise Edition - Per Processor for 3 years (for 8 processors) 8 Oracle Partitioning, Per Processor for 3 years (for 8 processors) 8 Oracle Oracle Premium Support for 3 years 2 Oracle Oracle WebLogic Server Standard Edition Release 12.1.3 - Per Processor for 3 years (for 8 processors) 8 Oracle Oracle Premium Support for 3 years 1 ** Included with Oracle Database 12c Enterprise Edition |
Other Benchmark Information |
---|
DNS round robin load balancing was used. DNS server ran on DB node. Steps to configure DNS are included in the FDA. All network connections were 10 Gbps. |
General Notes |
---|
The only errors in the driver log files were those that are normally generated by this benchmark. On the database, incremental checkpointing ensured that no buffer will remain dirty (in the cache) for more than the allowed time. |
