SPECjbb2000 SPECjbb2000 = 231346 ops/s
IBM Corporation IBM eServer pSeries 680
IBM Corporation J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM) plus APAR IY 26019

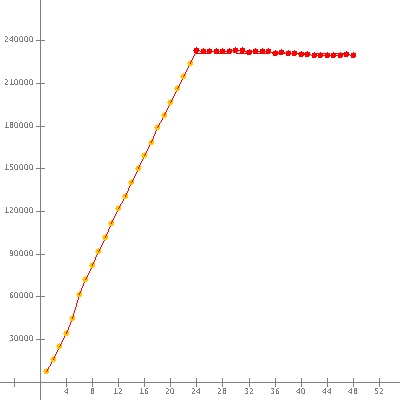

Warehouses Ops/s Incl. in metric
1 7956
2 16227
3 25309
4 34300
5 45138
6 61692
7 71915
8 81771
9 91950
10 101813
11 111742
12 121836
13 130782
14 140710
15 150319
16 159490
17 168783
18 178759
19 187735
20 196779
21 206121
22 214780
23 224069
24 233241 *
25 232125 *
26 232100 *
27 232687 *
28 232705 *
29 232648 *
30 232757 *
31 232771 *
32 231785 *
33 232531 *
34 232461 *
35 232488 *
36 230771 *
37 231861 *
38 230795 *
39 230856 *
40 230288 *
41 229967 *
42 229707 *
43 229938 *
44 229917 *
45 229803 *
46 229786 *
47 230023 *
48 229643 *
SPECjbb2000 (from 24 to 48) 231346 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Dec 4, 2001

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM eServer pSeries 680
Processor RS64 IV
MHz 600
# of Procs 24 cores, 24 chips, 1 core/chip
Memory (MB) 32768
Primary cache 128KBI+128KBD on chip
Secondary cache 16MB(I+D) off chip
Other cache
Filesystem JFS
Disks 1x18.2GB SCSI
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
Java Precompiler Version
Java Precompiler Command Line
Java Precompiler Way Of Excluding Classes
JVM Version J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM) plus APAR IY 26019
JVM Command Line java -ms20480m -mx20480m -spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 20480
JVM Maximum Heap Memory (MB) 20480
JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar
JVM BOOTCLASSPATH /java/caix641311-20011123a/jre/lib/rt.jar:
/java/caix641311-20011123a/jre/lib/i18n.jar:
/java/caix641311-20011123a/jre/classes
OS Version AIX 5L V5.1 plus APAR IY 22854
System state normal
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Dec 4, 2001
H/w available Oct-2000
JVM available Mar-2002
OS available Dec-2001
Other s/w available
Tuning
Operating system tunings
  • SPINLOOPTIME=500
  • setsched -S rr -P 40 -p $$
  • schedtune -F 1 -t 400
Notes
  • IY 22854: Support for New Hardware
  • IY 26019: Performance Enhancements

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 7956 20484 83.7 <0.01% <0.01 new_order 415126 69.1 <0.01
payment 415129 22.2 <0.01
order_status 41513 2.03 <0.01
delivery 41512 6.23 <0.01
stock_level 41513 17.0 <0.01
2 16227 20484 130 .111% <0.01 new_order 846678 139 <0.01
payment 846675 44.1 <0.01
order_status 84669 4.16 <0.01
delivery 84667 13.0 <0.01
stock_level 84667 32.7 <0.01
3 25309 20484 178 .381% .173 new_order 1322754 210 <0.01
payment 1322750 66.8 <0.01
order_status 132276 6.35 <0.01
delivery 132275 20.1 <0.01
stock_level 132275 47.3 <0.01
4 34300 20484 225 .720% .022 new_order 1789974 279 <0.01
payment 1789973 90.1 <0.01
order_status 178996 8.76 <0.01
delivery 179000 27.1 <0.01
stock_level 178996 60.8 <0.01
5 45138 20484 132 1.83% <0.01 new_order 2355018 350 .244
payment 2355025 116 .240
order_status 235502 11.3 <0.01
delivery 235502 35.4 <0.01
stock_level 235504 69.7 .243
6 61692 20484 158 4.41% <0.01 new_order 3218989 411 .232
payment 3218992 145 <0.01
order_status 321897 14.8 <0.01
delivery 321900 46.3 <0.01
stock_level 321897 79.3 <0.01
7 71915 20484 181 3.84% <0.01 new_order 3752192 478 .237
payment 3752191 171 .239
order_status 375218 17.5 <0.01
delivery 375218 53.4 <0.01
stock_level 375219 93.1 .236
8 81771 20484 202 4.02% <0.01 new_order 4266554 544 .244
payment 4266546 196 <0.01
order_status 426654 20.0 <0.01
delivery 426654 61.9 <0.01
stock_level 426657 107 .245
9 91950 20484 225 3.47% <0.01 new_order 4797541 613 .254
payment 4797521 220 .254
order_status 479754 22.6 <0.01
delivery 479752 69.1 <0.01
stock_level 479751 119 .254
10 101813 20484 246 4.15% <0.01 new_order 5312380 680 .262
payment 5312377 245 .261
order_status 531235 24.9 <0.01
delivery 531238 77.3 <0.01
stock_level 531236 133 .262
11 111742 20484 275 4.76% <0.01 new_order 5830506 749 .269
payment 5830503 270 .268
order_status 583047 27.3 <0.01
delivery 583049 84.8 <0.01
stock_level 583049 146 .269
12 121836 20484 295 4.42% <0.01 new_order 6356812 815 .271
payment 6356812 297 .270
order_status 635681 29.8 <0.01
delivery 635677 92.2 <0.01
stock_level 635680 158 .270
13 130782 20484 316 4.39% <0.01 new_order 6823863 882 .287
payment 6823860 323 .286
order_status 682386 32.7 <0.01
delivery 682390 100 .271
stock_level 682386 172 .288
14 140710 20484 343 4.11% <0.01 new_order 7341898 952 .294
payment 7341891 347 .293
order_status 734190 35.2 <0.01
delivery 734191 107 <0.01
stock_level 734189 184 .292
15 150319 20484 366 3.95% <0.01 new_order 7843402 1015 .298
payment 7843388 373 .298
order_status 784336 37.8 .285
delivery 784339 114 <0.01
stock_level 784338 202 .299
16 159490 20484 387 3.77% <0.01 new_order 8321678 1083 .304
payment 8321695 397 .304
order_status 832168 39.9 .290
delivery 832173 122 .289
stock_level 832173 215 .305
17 168783 20484 412 3.84% <0.01 new_order 8806773 1152 .312
payment 8806789 422 .311
order_status 880679 42.4 <0.01
delivery 880680 130 .312
stock_level 880679 226 .312
18 178759 20484 433 4.56% <0.01 new_order 9326892 1220 .323
payment 9326887 449 .322
order_status 932686 45.1 .315
delivery 932688 138 .323
stock_level 932685 239 .323
19 187735 20484 458 4.05% <0.01 new_order 9795184 1288 .328
payment 9795165 472 .327
order_status 979515 47.4 <0.01
delivery 979513 147 <0.01
stock_level 979514 252 .328
20 196779 20484 483 4.19% <0.01 new_order 10267415 1354 .333
payment 10267421 499 .332
order_status 1026742 49.9 <0.01
delivery 1026745 154 .317
stock_level 1026741 267 .333
21 206121 20484 506 4.34% <0.01 new_order 10755156 1424 .347
payment 10755137 523 .347
order_status 1075516 52.4 .319
delivery 1075515 160 .319
stock_level 1075511 278 .347
22 214780 20484 524 4.29% <0.01 new_order 11206170 1488 .350
payment 11206184 549 .349
order_status 1120618 54.7 <0.01
delivery 1120614 168 .340
stock_level 1120620 294 .350
23 224069 20484 547 4.41% <0.01 new_order 11690673 1557 .355
payment 11690668 574 .354
order_status 1169075 57.7 <0.01
delivery 1169064 176 <0.01
stock_level 1169064 305 .355
24 233241 20484 572 4.15% .350 new_order 12211709 1628 .359
payment 12211708 600 .359
order_status 1221171 59.6 <0.01
delivery 1221163 185 .359
stock_level 1221171 325 .359
25 232125 20484 592 5.31% .261 new_order 12142456 1696 2.01
payment 12142461 623 2.01
order_status 1214248 62.6 .379
delivery 1214248 190 2.01
stock_level 1214247 338 .890
26 232100 20484 616 6.44% .878 new_order 12215847 1784 2.61
payment 12215838 644 2.11
order_status 1221584 65.5 1.24
delivery 1221581 192 .878
stock_level 1221585 362 2.61
27 232687 20484 637 6.74% .313 new_order 12178236 1837 3.25
payment 12178224 677 2.68
order_status 1217822 68.4 2.10
delivery 1217825 202 1.53
stock_level 1217818 367 1.86
28 232705 20484 653 5.47% .796 new_order 12237767 1915 2.23
payment 12237762 704 2.23
order_status 1223776 73.4 1.50
delivery 1223781 208 1.50
stock_level 1223775 379 1.96
29 232648 20484 676 6.35% .594 new_order 12210298 1974 2.75
payment 12210287 726 2.75
order_status 1221026 68.1 1.81
delivery 1221031 214 2.42
stock_level 1221025 406 2.75
30 232757 20484 697 7.62% .627 new_order 12219908 2020 2.88
payment 12219922 761 1.86
order_status 1221994 77.7 2.24
delivery 1221992 239 2.72
stock_level 1221997 410 2.24
31 232771 20484 718 12.4% .218 new_order 12171028 2136 3.79
payment 12170978 739 3.79
order_status 1217092 79.4 2.81
delivery 1217102 228 2.79
stock_level 1217097 432 2.80
32 231785 20484 738 6.88% .844 new_order 12195219 2198 2.80
payment 12195240 784 2.79
order_status 1219531 88.6 2.77
delivery 1219525 237 2.59
stock_level 1219529 448 2.80
33 232531 20484 748 11.0% 1.06 new_order 12260953 2226 2.28
payment 12260940 835 2.27
order_status 1226094 77.1 1.73
delivery 1226092 265 2.22
stock_level 1226093 479 2.37
34 232461 20484 777 11.1% 1.34 new_order 12291045 2330 3.71
payment 12291043 893 3.71
order_status 1229105 73.2 2.25
delivery 1229109 248 2.93
stock_level 1229108 453 3.63
35 232488 20484 800 7.79% .570 new_order 12198926 2386 3.80
payment 12198950 887 3.98
order_status 1219886 74.8 2.01
delivery 1219895 253 3.26
stock_level 1219891 489 2.96
36 230771 20484 816 12.3% 2.07 new_order 12289157 2465 4.00
payment 12289166 916 3.99
order_status 1228915 77.9 2.20
delivery 1228917 305 4.00
stock_level 1228918 499 4.00
37 231861 20484 836 8.65% .945 new_order 12211431 2515 3.49
payment 12211438 941 3.49
order_status 1221142 75.4 2.59
delivery 1221144 293 2.87
stock_level 1221140 517 3.12
38 230795 20484 851 12.7% 1.61 new_order 12234954 2559 3.75
payment 12234977 969 3.76
order_status 1223500 98.3 2.72
delivery 1223502 266 3.60
stock_level 1223494 573 4.11
39 230856 20484 871 19.5% 1.58 new_order 12234963 2587 3.99
payment 12234940 999 3.92
order_status 1223498 99.6 3.33
delivery 1223494 315 5.02
stock_level 1223495 595 4.39
40 230288 20484 903 16.0% 1.40 new_order 12183340 2715 4.05
payment 12183330 1058 3.51
order_status 1218339 100 3.03
delivery 1218333 272 3.12
stock_level 1218341 586 4.82
41 229967 20484 933 17.4% 1.61 new_order 12191220 2771 4.42
payment 12191235 1068 4.89
order_status 1219123 101 2.93
delivery 1219121 257 3.31
stock_level 1219126 639 5.25
42 229707 20484 939 26.3% .588 new_order 12055218 2798 5.39
payment 12055196 1107 4.00
order_status 1205525 88.2 2.88
delivery 1205518 264 4.00
stock_level 1205517 653 4.00
43 229938 20484 957 20.4% 1.42 new_order 12167193 2940 5.14
payment 12167213 1127 4.00
order_status 1216724 97.4 2.92
delivery 1216719 287 3.62
stock_level 1216721 642 5.02
44 229917 20484 981 18.7% .428 new_order 12047032 2866 4.65
payment 12047028 1095 4.31
order_status 1204705 102 4.00
delivery 1204703 328 4.51
stock_level 1204696 750 4.92
45 229803 20484 1006 22.2% 2.89 new_order 12336298 3051 6.20
payment 12336291 1166 4.01
order_status 1233631 113 3.57
delivery 1233634 319 4.00
stock_level 1233632 738 4.01
46 229786 20484 1028 22.6% 2.06 new_order 12235200 3020 4.75
payment 12235215 1249 4.73
order_status 1223518 91.9 3.20
delivery 1223523 340 3.85
stock_level 1223522 759 5.81
47 230023 20484 1046 22.9% 5.97 new_order 12718058 3242 5.75
payment 12718060 1361 6.75
order_status 1271801 117 4.00
delivery 1271806 322 4.01
stock_level 1271802 770 6.54
48 229643 20484 1053 23.3% .249 new_order 12011255 3067 6.49
payment 12011242 1255 6.36
order_status 1201126 112 5.93
delivery 1201123 323 4.01
stock_level 1201123 826 4.01

SPECjbb2000 Version: [SPECjbb2000 1.01, September 7, 2000]
Reporting page, Copyright © 2000-2002 SPEC. All rights reserved

First published at SPEC.org on 03-Jan-2002
