SPECjbb

SPECjbb2000		SPECjbb2000 = 294315 ops/s
IBM Corporation IBM System p5 550Q
IBM Corporation J2RE 1.5.0 IBM J9 2.3 AIX ppc-32 j9vmap3223-20050915a

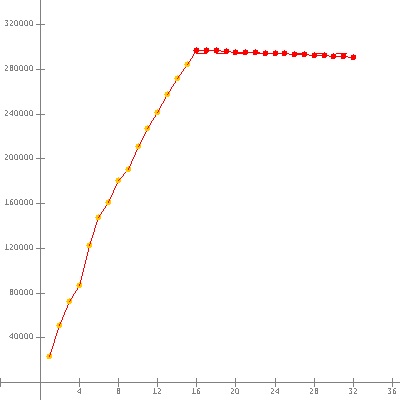

Warehouses	Ops/s	Incl. in metric
1	22964
2	50568
3	72067
4	86768
5	122250
6	147472
7	160913
8	180789
9	190590
10	211293
11	227360
12	241395
13	257494
14	271807
15	284828
16	297300	*
17	296936	*
18	296687	*
19	296121	*
20	295778	*
21	295603	*
22	295323	*
23	294775	*
24	294153	*
25	294192	*
26	293568	*
27	293244	*
28	292968	*
29	292582	*
30	291766	*
31	291434	*
32	290927	*
SPECjbb2000	(from 16 to 32)	294315 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Sep 17, 2005

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM System p5 550Q

Processor POWER5+

MHz 1500

# of Procs 8 cores, 4 chips, 2 cores/chip (SMT on)

Memory (MB) 16384

Primary cache 64KBI+32KBD (on chip)/core

Secondary cache 1920KB unified (on chip)/chip

Other cache 2x36MB unified (off-chip)/QCM, 2 QCMs in SUT

Filesystem JFS

Disks 1 x 36GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.5.0 IBM J9 2.3 AIX ppc-32 j9vmap3223-20050915a

JVM Command Line java -Xlp -Xcompactexplicitgc -Xgcpolicy:subpool -Xms3g -Xmx3g spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/j9vmap3223-20050915a/jre/lib/vm.jar:
/java/j9vmap3223-20050915a/jre/lib/core.jar:
/java/j9vmap3223-20050915a/jre/lib/charsets.jar:
/java/j9vmap3223-20050915a/jre/lib/graphics.jar:
/java/j9vmap3223-20050915a/jre/lib/security.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmpkcs.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmorb.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmcfw.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmorbapi.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmjcefw.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmjgssprovider.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmjsseprovider2.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmjaaslm.jar:
/java/j9vmap3223-20050915a/jre/lib/ibmcertpathprovider.jar:
/java/j9vmap3223-20050915a/jre/lib/server.jar:
/java/j9vmap3223-20050915a/jre/lib/xml.jar

OS Version AIX 5L V5.3

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Sep 17, 2005

H/w available Oct-2005

JVM available Dec-2005

OS available Oct-2005

Other s/w available

Tuning

Operating system tunings
vmo -o lgpg_regions=192 -o lgpg_size=16777216
vmo -o v_pinshm=1
schedo -o smt_snooze_delay=-1
setsched -S rr -P 30 -p $$
schedo -o timeslice=300
export SPINLOOPTIME=1000

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	22964	3072	28.9	<0.01%	<0.01	new_order	1198114	55.4	<0.01
						payment	1198114	28.5	<0.01
						order_status	119811	2.49	<0.01
						delivery	119811	7.61	<0.01
						stock_level	119812	13.5	.040
2	50568	3072	52.2	.373%	<0.01	new_order	2638336	117	.042
						payment	2638336	61.6	.041
						order_status	263833	5.53	<0.01
						delivery	263833	15.2	<0.01
						stock_level	263834	29.5	.037
3	72067	3072	74.3	7.07%	<0.01	new_order	3760027	175	.058
						payment	3760024	89.8	.054
						order_status	376003	8.17	<0.01
						delivery	376003	27.3	<0.01
						stock_level	376003	43.9	.054
4	86768	3072	93.6	15.4%	<0.01	new_order	4527076	235	.065
						payment	4527073	120	.065
						order_status	452708	10.8	.049
						delivery	452707	35.0	.059
						stock_level	452706	58.6	.062
5	122250	3072	116	5.88%	<0.01	new_order	6378254	298	.078
						payment	6378255	154	.078
						order_status	637824	14.0	<0.01
						delivery	637822	45.7	.059
						stock_level	637825	61.5	.078
6	147472	3072	137	4.93%	<0.01	new_order	7694566	358	.062
						payment	7694561	185	.062
						order_status	769457	16.9	.059
						delivery	769456	54.2	.062
						stock_level	769456	72.7	.062
7	160913	3072	162	15.8%	.063	new_order	8400764	419	.069
						payment	8400780	216	.069
						order_status	840076	19.6	<0.01
						delivery	840079	62.7	.069
						stock_level	840075	85.5	.069
8	180789	3072	181	17.6%	<0.01	new_order	9432479	479	.073
						payment	9432475	246	.073
						order_status	943247	21.9	.061
						delivery	943245	72.0	.072
						stock_level	943248	97.5	.073
9	190590	3072	202	13.1%	<0.01	new_order	9944674	541	.081
						payment	9944673	277	.081
						order_status	994465	25.0	.078
						delivery	994467	80.5	.080
						stock_level	994467	109	.080
10	211293	3072	228	15.8%	<0.01	new_order	11024899	601	.088
						payment	11024894	306	.088
						order_status	1102488	28.0	.087
						delivery	1102488	88.8	.087
						stock_level	1102489	123	.088
11	227360	3072	242	14.6%	<0.01	new_order	11863251	659	.089
						payment	11863244	338	.089
						order_status	1186325	31.0	.088
						delivery	1186324	97.8	.089
						stock_level	1186321	136	.089
12	241395	3072	260	18.3%	<0.01	new_order	12595337	722	.095
						payment	12595345	366	.095
						order_status	1259537	33.4	.095
						delivery	1259532	107	.095
						stock_level	1259536	150	.095
13	257494	3072	288	20.6%	<0.01	new_order	13435615	785	.106
						payment	13435606	395	.106
						order_status	1343563	36.5	.098
						delivery	1343558	116	.106
						stock_level	1343561	161	.106
14	271807	3072	304	12.2%	<0.01	new_order	14181814	844	.104
						payment	14181812	427	.104
						order_status	1418181	39.0	.103
						delivery	1418182	124	.104
						stock_level	1418180	174	.105
15	284828	3072	328	10.2%	.035	new_order	14865803	907	.115
						payment	14865781	458	.115
						order_status	1486579	42.1	.119
						delivery	1486581	131	.115
						stock_level	1486577	186	.115
16	297300	3072	350	1.59%	.959	new_order	15660109	980	.117
						payment	15660098	489	.187
						order_status	1566011	45.4	.115
						delivery	1566016	141	.117
						stock_level	1566011	199	.153
17	296936	3072	366	15.2%	.683	new_order	15598186	1027	2.00
						payment	15598173	520	2.01
						order_status	1559816	46.4	2.00
						delivery	1559821	152	2.00
						stock_level	1559818	221	2.00
18	296687	3072	385	18.3%	1.83	new_order	15762566	1095	2.09
						payment	15762580	568	3.00
						order_status	1576259	53.8	2.00
						delivery	1576260	157	2.00
						stock_level	1576260	231	2.00
19	296121	3072	401	28.4%	1.72	new_order	15714869	1151	3.42
						payment	15714857	605	2.94
						order_status	1571482	59.5	2.01
						delivery	1571489	173	3.59
						stock_level	1571485	238	2.00
20	295778	3072	420	20.4%	1.10	new_order	15601016	1224	3.80
						payment	15601011	633	3.00
						order_status	1560103	59.0	3.00
						delivery	1560104	166	2.00
						stock_level	1560099	244	2.01
21	295603	3072	442	25.5%	<0.01	new_order	15423796	1235	4.00
						payment	15423815	659	3.00
						order_status	1542381	62.6	2.01
						delivery	1542381	186	3.73
						stock_level	1542375	265	2.13
22	295323	3072	459	20.4%	1.35	new_order	15616817	1341	3.01
						payment	15616806	726	3.53
						order_status	1561680	62.3	2.00
						delivery	1561685	190	2.16
						stock_level	1561679	250	3.01
23	294775	3072	476	24.8%	.525	new_order	15460313	1373	4.00
						payment	15460324	735	3.01
						order_status	1546032	65.3	3.00
						delivery	1546029	206	2.38
						stock_level	1546028	289	3.00
24	294153	3072	495	29.1%	1.37	new_order	15557764	1444	3.01
						payment	15557766	804	3.56
						order_status	1555775	64.0	4.00
						delivery	1555774	194	3.00
						stock_level	1555778	282	2.99
25	294192	3072	516	29.6%	1.69	new_order	15608685	1510	4.00
						payment	15608679	809	3.89
						order_status	1560871	60.2	3.23
						delivery	1560865	232	3.16
						stock_level	1560869	309	3.00
26	293568	3072	529	30.1%	.304	new_order	15363184	1496	3.01
						payment	15363193	870	2.83
						order_status	1536321	88.0	2.33
						delivery	1536319	219	3.46
						stock_level	1536316	325	3.00
27	293244	3072	551	25.8%	1.02	new_order	15455225	1604	4.01
						payment	15455242	868	4.00
						order_status	1545524	69.1	3.00
						delivery	1545525	242	4.00
						stock_level	1545524	345	3.00
28	292968	3072	571	27.8%	.891	new_order	15421417	1686	4.00
						payment	15421433	904	4.00
						order_status	1542150	75.4	2.01
						delivery	1542144	228	3.02
						stock_level	1542147	363	3.91
29	292582	3072	585	25.1%	.645	new_order	15363633	1693	4.00
						payment	15363625	982	3.80
						order_status	1536366	80.8	2.63
						delivery	1536358	271	4.00
						stock_level	1536368	345	3.01
30	291766	3072	604	38.8%	.258	new_order	15261929	1765	4.00
						payment	15261924	1015	5.01
						order_status	1526184	80.8	2.08
						delivery	1526189	245	4.03
						stock_level	1526185	366	4.00
31	291434	3072	620	33.3%	.899	new_order	15341960	1796	4.00
						payment	15341964	1067	5.45
						order_status	1534192	67.1	2.00
						delivery	1534194	280	3.89
						stock_level	1534192	392	4.02
32	290927	3072	639	52.4%	1.11	new_order	15346926	1843	4.02
						payment	15346929	1131	4.00
						order_status	1534691	79.0	4.00
						delivery	1534688	279	4.00
						stock_level	1534689	401	4.02
