SPECjbb2005 SPECjbb2005 bops = 41751, SPECjbb2005 bops/JVM = 41751
IBM Corporation IBM System p5 505 (2100 MHz, 2 Cores)
IBM Corporation J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060706

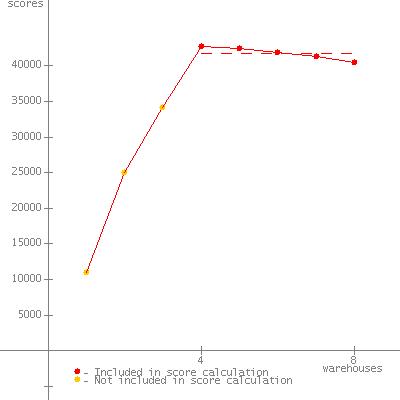

Warehouses SPECjbb2005 bops Incl. in metric
1 10925
2 24994
3 34186
4 42765 *
5 42422 *
6 41845 *
7 41252 *
8 40470 *
SPECjbb2005 (from 4 to 8) 41751 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System p5 505 (2100 MHz, 2 Cores)
Processor POWER5+
MHz 2100
# of Chips 1
# of Cores 2
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 8x1GB
Primary cache 64KBI+32KBD on chip per core
Secondary cache 1920KB on chip per chip
Other cache 36MB off chip per DCM, 1 DCM per SUT
Filesystem JFS
Disks 1x73GB SCSI, 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060706
JVM Command Line java -Xlp -Xgcpolicy:subpool -Xcompactgc -Xms3328m -Xmx3328m spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3328
JVM Maximum Heap Memory (MB) 3328
JVM Address bits 32
JVM CLASSPATH ./jbb.jar:
./check.jar:
JVM BOOTCLASSPATH /java/j9vmap3223-20060706/jre/lib/vm.jar:
/java/j9vmap3223-20060706/jre/lib/core.jar:
/java/j9vmap3223-20060706/jre/lib/charsets.jar:
/java/j9vmap3223-20060706/jre/lib/graphics.jar:
/java/j9vmap3223-20060706/jre/lib/security.jar:
/java/j9vmap3223-20060706/jre/lib/ibmpkcs.jar:
/java/j9vmap3223-20060706/jre/lib/ibmorb.jar:
/java/j9vmap3223-20060706/jre/lib/ibmcfw.jar:
/java/j9vmap3223-20060706/jre/lib/ibmorbapi.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjcefw.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjgssprovider.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjsseprovider2.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjaaslm.jar:
/java/j9vmap3223-20060706/jre/lib/ibmcertpathprovider.jar:
/java/j9vmap3223-20060706/jre/lib/server.jar:
/java/j9vmap3223-20060706/jre/lib/xml.jar
OS Version AIX 5L V5.3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jul 9, 2006
H/w available Aug-2006
JVM available Sep-2006
OS available Aug-2006
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=192 -o lgpg_size=16777216 -o v_pinshm=1
  • SPINLOOPTIME=1000
Notes


Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 10925 3328 .505 <0.01% <0.01 new_order 143987 10.0 <0.01
payment 99332 4.45 <0.01
order_status 9933 .616 <0.01
delivery 9933 6.58 <0.01
stock_level 9934 1.06 <0.01
cust_report 54676 6.32 <0.01
2 24994 3328 64.8 .304% <0.01 new_order 329703 20.0 .367
payment 227276 8.36 .236
order_status 22729 1.01 <0.01
delivery 22728 15.5 <0.01
stock_level 22728 1.53 <0.01
cust_report 124855 12.4 .315
3 34186 3328 93.3 3.27% <0.01 new_order 450904 28.4 .400
payment 310793 12.1 .400
order_status 31079 1.50 <0.01
delivery 31080 24.0 .401
stock_level 31078 2.38 <0.01
cust_report 170689 19.9 .322
4 42765 3328 122 .715% <0.01 new_order 4509527 298 .437
payment 3110217 123 .437
order_status 311020 16.3 .346
delivery 311021 258 .438
stock_level 311021 25.9 .347
cust_report 1710904 219 .386
5 42422 3328 150 11.2% .071 new_order 4476161 368 1.01
payment 3087440 154 .849
order_status 308744 19.6 .399
delivery 308743 328 .961
stock_level 308744 30.9 .405
cust_report 1698713 276 .925
6 41845 3328 178 24.3% <0.01 new_order 4413032 441 .948
payment 3043298 186 1.04
order_status 304329 23.6 .471
delivery 304327 394 1.09
stock_level 304329 40.7 .521
cust_report 1673555 330 1.06
7 41252 3328 207 27.0% <0.01 new_order 4350127 510 1.42
payment 3000254 213 1.02
order_status 300028 30.1 .650
delivery 300024 463 1.11
stock_level 300025 44.1 .720
cust_report 1650372 388 1.07
8 40470 3328 235 8.65% <0.01 new_order 4266343 592 .751
payment 2943255 248 .830
order_status 294326 31.8 .594
delivery 294323 521 1.63
stock_level 294323 52.4 .597
cust_report 1620169 440 .758

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 16-Aug-2006
