SPECjbb2005 SPECjbb2005 bops = 128755, SPECjbb2005 bops/JVM = 32189
Bull SAS NovaScale 3045
BEA Systems BEA JRockit(R) 5.0 P26.4.1-11 (build P26.4.1-11-65404-1.5.0_06-20060809-1136-linux-ia64)

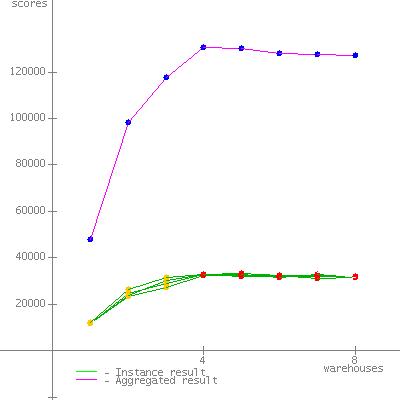

JVM run JVM Scores
132439
231908
332110
432298
SPECjbb2005 bops = 128755, SPECjbb2005 bops/JVM = 32189

Hardware
Hardware Vendor Bull SAS
Vendor URL http://www.bull.com
Model NovaScale 3045
Processor Itanium2 Processor 9050 FSB 533 MHz
MHz 1600
# of Chips 4
# of Cores 8
# of Cores/Chip 2
HW Threading Enabled? Yes (2)
Procs Avail to Java 16
Memory (MB) 32768
Memory Details 1GB ECC DIMMS DDR2-533MHz PC4200 CL4
Primary cache 16KB (I) + 16KB (D) on chip per core
Secondary cache 1024 KB (I) + 256KB (D) on chip per core
Other cache 12MB (I+D) on chip per core
Filesystem ext3
Disks 10 krpm 73GB SAS
Other hardware
Software
Software Vendor BEA Systems
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 P26.4.1-11 (build P26.4.1-11-65404-1.5.0_06-20060809-1136-linux-ia64)
JVM Command Line numactl --cpubind=$i --membind=$i java -cp jbb.jar:check.jar -Xms3840m -Xmx3840m -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize=512k -XXgcthreads=4 -XXhpm
JVM Initial Heap Memory (MB) 3840
JVM Maximum Heap Memory (MB) 3840
JVM Address bits 64
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/ia64/jrockit/jrockit.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/ia64/jrockit/managementapi.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/managementapi.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/rt.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/i18n.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/sunrsasign.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/jsse.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/jce.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/lib/charsets.jar:
/SDA2/home/spec/java/jrockit-jdk1.5.0_06/jre/classes
OS Version Linux RHEL4-ia64-Update4 (kernel 2.6.9-42.EL)
Other software
Test Information
Tested by Bull SAS
SPEC license # 20
Test location Echirolles, France
Test date Aug 10, 2006
H/w available
JVM available August 2006
OS available August 2006
Other s/w available
AOT Compilation
N/A
Tuning
Operating system tunings
  • echo 72 > /proc/sys/vm/nr_hugepages
  • mkdir -p /mnt/hugepages
  • mount none /mnt/hugepages -t hugetlbfs
  • chmod 777 /mnt/hugepages
Command line switches
  • descibed at http://e-docs.bea.com/jrockit/jrdocs/refman/intro.html
Notes
"JVM instances started via numactl --cpubind=$i --membind=$i"

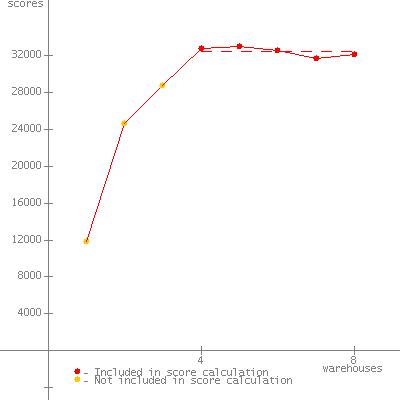

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11850
2 24677
3 28805
4 32791 *
5 33036 *
6 32540 *
7 31735 *
8 32093 *
SPECjbb2005 (from 4 to 8) 32439 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: Aug 10, 2006

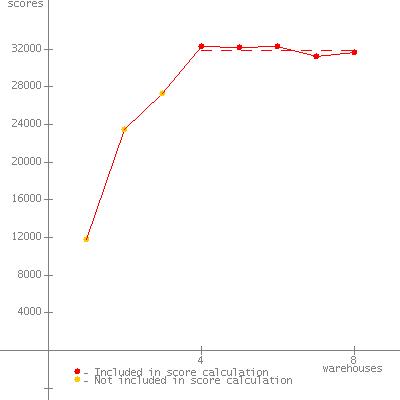

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11745
2 23471
3 27264
4 32319 *
5 32177 *
6 32258 *
7 31171 *
8 31613 *
SPECjbb2005 (from 4 to 8) 31908 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: Aug 10, 2006

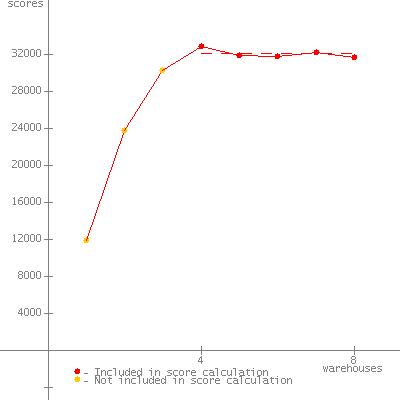

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 11861
2 23795
3 30333
4 32910 *
5 31885 *
6 31783 *
7 32272 *
8 31700 *
SPECjbb2005 (from 4 to 8) 32110 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: Aug 10, 2006

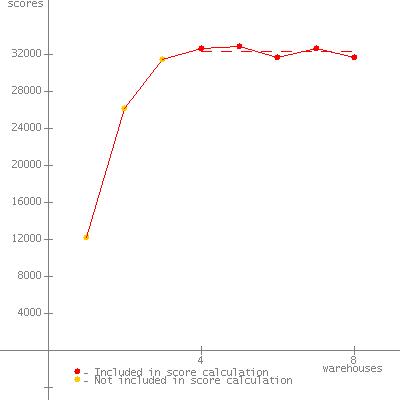

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 12232
2 26189
3 31439
4 32634 *
5 32902 *
6 31630 *
7 32614 *
8 31711 *
SPECjbb2005 (from 4 to 8) 32298 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: Aug 10, 2006

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 30-Aug-2006
