SPECjbb2005 SPECjbb2005 bops = 685200, SPECjbb2005 bops/JVM = 85650
Bull SAS ESCALA PL1660R
IBM Corporation J2RE 1.6.0 IBM J9 2.4 AIX ppc-32 jvmap3260-20080415_18762 (JIT enabled, AOT enabled)

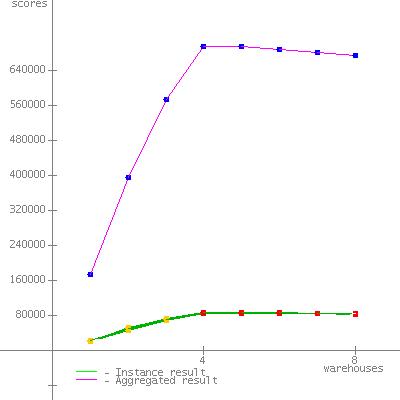

JVM run JVM Scores
185753
285332
385578
486312
585816
685987
784195
886227
SPECjbb2005 bops = 685200, SPECjbb2005 bops/JVM = 85650

Hardware
Hardware Vendor Bull SAS
Vendor URL http://www.bull.com
Model ESCALA PL1660R
Processor POWER6
MHz 4208
# of Chips 8
# of Cores 16
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 159232
Memory Details 80 x 2GB DDR2
Primary cache 64KBI+64KBD on chip per core
Secondary cache 4MB on chip per core
Other cache 32MB off chip per chi
Filesystem JFS2
Disks 1 x 73GB SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.6.0 IBM J9 2.4 AIX ppc-32 jvmap3260-20080415_18762 (JIT enabled, AOT enabled)
JVM Command Line execrset java/twocores$JVM -e java -cp jbb.jar:check.jar -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2g -XlockReservation spec.jbb.JBBmain -propfile SPECjbb.mTR.8x2-HT.props -id $JVM
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /usr/java6/jre/lib/vm.jar:
/usr/java6/jre/lib/annotation.jar:
/usr/java6/jre/lib/beans.jar:
/usr/java6/jre/lib/java.util.jar:
/usr/java6/jre/lib/jndi.jar:
/usr/java6/jre/lib/logging.jar:
/usr/java6/jre/lib/security.jar:
/usr/java6/jre/lib/sql.jar:
/usr/java6/jre/lib/ibmorb.jar:
/usr/java6/jre/lib/ibmorbapi.jar:
/usr/java6/jre/lib/ibmcfw.jar:
/usr/java6/jre/lib/rt.jar:
/usr/java6/jre/lib/charsets.jar:
/usr/java6/jre/lib/resources.jar:
/usr/java6/jre/lib/ibmpkcs.jar:
/usr/java6/jre/lib/ibmcertpathfw.jar:
/usr/java6/jre/lib/ibmjgssfw.jar:
/usr/java6/jre/lib/ibmjssefw.jar:
/usr/java6/jre/lib/ibmsaslfw.jar:
/usr/java6/jre/lib/ibmjcefw.jar:
/usr/java6/jre/lib/ibmjgssprovider.jar:
/usr/java6/jre/lib/ibmjsseprovider2.jar:
/usr/java6/jre/lib/ibmcertpathprovider.jar:
/usr/java6/jre/lib/ibmxmlcrypto.jar:
/usr/java6/jre/lib/management-agent.jar:
/usr/java6/jre/lib/xml.jar:
/usr/java6/jre/lib/jlm.jar:
/usr/java6/jre/lib/javascript.jar
OS Version AIX 5L v5.3 Technology Level 7
Other software
Test Information
Tested by Bull SAS
SPEC license # 20
Test location Angers, France
Test date 5 juin 2008
H/w available
JVM available March-2008
OS available September-2007
Other s/w available
AOT Compilation

Tuning
Operating system tunings:
  • vmo -o lgpg_regions=2688 -o lgpg_size=16777216 -o v_pinshm=1
  • LDR_CNTRL=DATAPSIZE=64k@STACKPSIZE=64k@TEXTPSIZE=64k
  • MEMORY_AFFINITY=MCM
.
Notes
"Each JVM was run in its own processor set containing 2 cores and thus 4 threads."

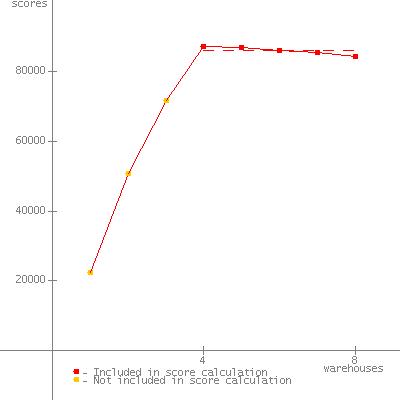

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22261
2 49985
3 72438
4 87206 *
5 86440 *
6 85469 *
7 85091 *
8 84561 *
SPECjbb2005 (from 4 to 8) 85753 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008

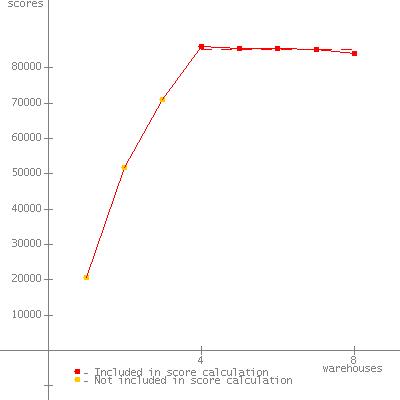

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 20817
2 51794
3 71150
4 86161 *
5 85482 *
6 85618 *
7 85261 *
8 84139 *
SPECjbb2005 (from 4 to 8) 85332 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21708
2 50372
3 71575
4 86321 *
5 86995 *
6 85813 *
7 85031 *
8 83733 *
SPECjbb2005 (from 4 to 8) 85578 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21932
2 47542
3 71997
4 87272 *
5 87275 *
6 86428 *
7 85764 *
8 84823 *
SPECjbb2005 (from 4 to 8) 86312 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008

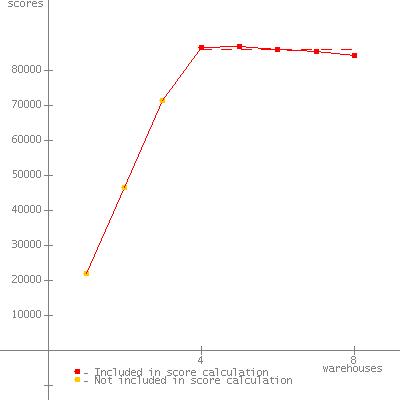

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22068
2 46662
3 71280
4 86599 *
5 86840 *
6 86020 *
7 85414 *
8 84209 *
SPECjbb2005 (from 4 to 8) 85816 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22412
2 50768
3 71684
4 87260 *
5 86902 *
6 86017 *
7 85385 *
8 84371 *
SPECjbb2005 (from 4 to 8) 85987 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008

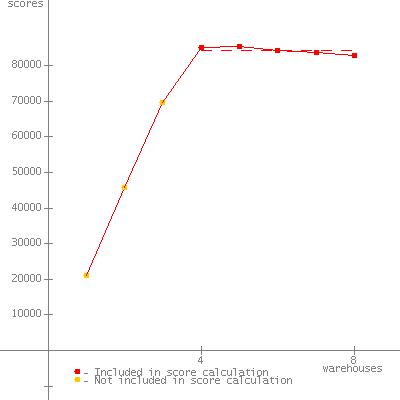

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21116
2 45634
3 69672
4 85100 *
5 85413 *
6 84197 *
7 83555 *
8 82712 *
SPECjbb2005 (from 4 to 8) 84195 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008

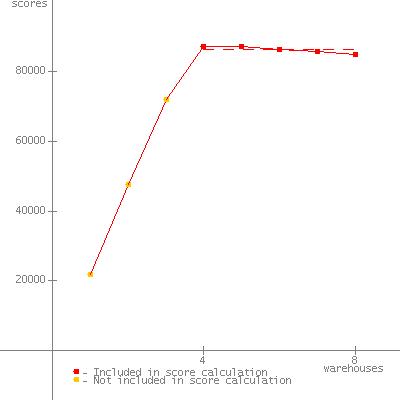

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22277
2 51169
3 71910
4 86673 *
5 87305 *
6 86680 *
7 85619 *
8 84859 *
SPECjbb2005 (from 4 to 8) 86227 SPECjbb2005 bops
SPEC license # 20 Tested by: Bull SAS Test date: 5 juin 2008

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 24-Jul-2008
