SPECjbb2005 SPECjbb2005 bops = 42155, SPECjbb2005 bops/JVM = 42155
Sun Microsystems, Inc. Sun SPARC Enterprise M3000
Sun Microsystems, Inc. Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_06 Performance Release

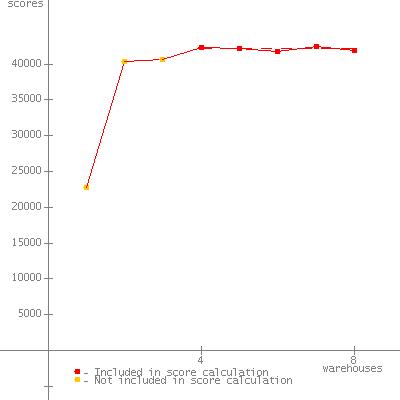

Warehouses SPECjbb2005 bops Incl. in metric
1 22741
2 40339
3 40662
4 42374 *
5 42205 *
6 41783 *
7 42509 *
8 41905 *
SPECjbb2005 (from 4 to 8) 42155 SPECjbb2005 bops
SPEC license # 6 Tested by: Fujitsu Limited Test date: 2008/09/25

Hardware
Hardware Vendor Sun Microsystems, Inc.
Vendor URL http://www.sun.com/
Model Sun SPARC Enterprise M3000
Processor SPARC64 VII
MHz 2520
# of Chips 1
# of Cores 2
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 4
Memory (MB) 16384
Memory Details 8x2GB DIMMs, all 2-way interleaved
Primary cache 64KBI+64KBD on chip per core
Secondary cache 5MB(I+D) on chip per chip
Other cache
Filesystem UFS
Disks Fujitsu 73GB 10K RPM SAS
Other hardware
Software
Software Vendor Sun Microsystems, Inc.
Vendor URL http://java.sun.com/
JVM Version Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.6.0_06 Performance Release
JVM Command Line priocntl -c FX -e java -server -Xms3680m -Xmx3680m -Xmn2g -Xss128k -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+UseBiasedLocking -XX:LargePageSizeInBytes=32m -XX:ParallelGCThreads=4 -XX:AllocatePrefetchLines=16 -verbose:gc -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3680
JVM Maximum Heap Memory (MB) 3680
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /spec/export/specjbb/jre1.6.0_06-p/lib/resources.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/rt.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/sunrsasign.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/jsse.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/jce.jar:
/spec/export/specjbb/jre1.6.0_06-p/lib/charsets.jar:
/spec/export/specjbb/jre1.6.0_06-p/classes
OS Version Solaris 10 10/08 (64-bit)
Other software
Test Information
Tested by Fujitsu Limited
SPEC license # 6
Test location Kawasaki, Japan
Test date 2008/09/25
H/w available Jan-2009
JVM available Jul-2008
OS available Oct-2008
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • autoup=600
  • tune_t_fsflushr=10
  • bufhwm=3000
  • segmap_percent=1
Notes
  • Disabled hardware prefetch by 'setprefetchmode -s off' command on XSCF
  • Command line options are described at http://java.sun.com/docs/performance
  • This result was measured on the Fujitsu SPARC Enterprise M3000. The Fujitsu SPARC Enterprise M3000 and the Sun SPARC Enterprise M3000 are electronically equivalent.

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 22741 3424 383 <0.01% <0.01 new_order 300047 12.1 .099
payment 206777 4.99 .106
order_status 20678 .506 .019
delivery 20678 5.75 .019
stock_level 20678 .826 .020
cust_report 113500 4.91 .019
2 40339 3600 601 8.37% <0.01 new_order 531747 20.9 .174
payment 366757 8.40 .174
order_status 36675 1.12 .022
delivery 36674 16.5 .013
stock_level 36676 2.02 .133
cust_report 201768 9.66 .133
3 40662 3610 1689 5.54% <0.01 new_order 536044 26.6 .066
payment 369730 10.8 .060
order_status 36973 1.48 .082
delivery 36972 32.3 .082
stock_level 36973 3.54 .082
cust_report 203420 13.4 .066
4 42374 3665 622 7.96% .027 new_order 4470541 258 .095
payment 3082592 109 .091
order_status 308260 13.7 .023
delivery 308258 373 .097
stock_level 308260 37.8 .024
cust_report 1694642 147 .025
5 42205 3667 1696 3.30% .016 new_order 4451392 330 .235
payment 3069981 137 .241
order_status 307000 16.2 .201
delivery 306999 456 .393
stock_level 306999 49.3 .230
cust_report 1688568 184 .228
6 41783 3664 2313 13.8% .084 new_order 4410349 383 .466
payment 3041299 167 .371
order_status 304130 24.2 .201
delivery 304131 557 .461
stock_level 304129 57.2 .306
cust_report 1672254 220 .461
7 42509 3662 2270 12.7% .031 new_order 4484649 462 1.20
payment 3092532 195 1.00
order_status 309253 21.9 .391
delivery 309251 630 .751
stock_level 309253 64.2 .442
cust_report 1700416 268 .681
8 41905 3659 1365 12.9% .148 new_order 4424931 532 6.81
payment 3052114 221 1.08
order_status 305213 31.2 .800
delivery 305211 719 4.20
stock_level 305211 73.7 .755
cust_report 1679309 305 4.60

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 02-Feb-2009
