SPECjbb2005 SPECjbb2005 bops = 976223, SPECjbb2005 bops/JVM = 61014
IBM Corporation IBM Power 750 Express (3.30 GHz, 16 core, IBM i)
IBM Corporation IBM Technology for Java 1.6 (32-bit JVM) [build pap3260sr7-20091215_01(SR7)]

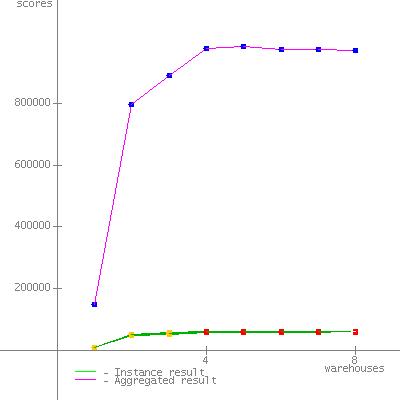

JVM run JVM Scores
162033
260578
360622
460006
560821
660002
761570
861374
959760
1061055
1160162
1262028
1362134
1461366
1561034
1661678
SPECjbb2005 bops = 976223, SPECjbb2005 bops/JVM = 61014

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 750 Express (3.30 GHz, 16 core, IBM i)
Processor POWER7 (Intelligent Energy Optimization up to 3.64 GHz)
MHz 3300
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 16 x 8 GB DDR3 1067MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 4MB I+D on chip per core
Filesystem IFS
Disks 2 x 70GB SAS 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com/systems/i
JVM Version IBM Technology for Java 1.6 (32-bit JVM) [build pap3260sr7-20091215_01(SR7)]
JVM Command Line java -Xms2560m -Xmx2560m -Xmn2048m -Xgcthreads4 -Xgcpolicy:gencon -Xlp64k -Xnoloa -XlockReservation -Xaggressive -XtlhPrefetch -Djava.awt.headless=true spec.jbb.JBBmain -propfile SPECjbbMulti.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/vm.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/annotation.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/beans.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/java.util.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/jndi.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/logging.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/security.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/sql.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmorb.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmorbapi.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmcfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/rt.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/charsets.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/resources.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmpkcs.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmcertpathfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjgssfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjssefw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmsaslfw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjcefw.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjgssprovider.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmjsseprovider2.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmcertpathprovider.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/ibmxmlcrypto.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/management-agent.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/xml.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/jlm.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/jre/lib/javascript.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/IBMmisc.jar:
/QOpenSys/QIBM/ProdData/JavaVM/jdk60/32bit/lib/IBMi5OSJSSE.jar
OS Version IBM i operating system 6.1.1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Rochester, MN
Test date Feb 3, 2010
H/w available Feb-2010
JVM available Jan-2010
OS available Feb-2010
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • export QIBM_JVM_ILE_HOME=QJVM6032
  • Subsystem routing entries were used to set THDRSCAFN(*GROUP *HIGH) for the SPECjbb JVMs
Notes
  • Intelligent Energy Optimization requires IBM Systems Director
  • The JVM was actually started using the CL `JAVA CLASS('spec.jbb.JBBmain') PARM('-propfile' 'SPECjbbMulti.props' '-id' '&JVMID) CLASSPATH(&CLASSPATH) PROP((os400.property.file 'jvmmulti.props')). The jvmmulti.props contained the command-line options shown in the `JVM Command Line` section above"


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8550
2 50744
3 58882
4 61831 *
5 62961 *
6 61994 *
7 61864 *
8 61514 *
SPECjbb2005 (from 4 to 8) 62033 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9288
2 49183
3 54370
4 60561 *
5 61512 *
6 60784 *
7 60630 *
8 59401 *
SPECjbb2005 (from 4 to 8) 60578 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8567
2 49510
3 55262
4 60365 *
5 61244 *
6 60853 *
7 60401 *
8 60249 *
SPECjbb2005 (from 4 to 8) 60622 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8879
2 48288
3 55228
4 60244 *
5 60370 *
6 59422 *
7 59933 *
8 60059 *
SPECjbb2005 (from 4 to 8) 60006 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8918
2 50628
3 54872
4 60847 *
5 61568 *
6 61449 *
7 59859 *
8 60382 *
SPECjbb2005 (from 4 to 8) 60821 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8763
2 47945
3 52535
4 60189 *
5 60252 *
6 59892 *
7 60276 *
8 59401 *
SPECjbb2005 (from 4 to 8) 60002 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9694
2 50606
3 55346
4 61642 *
5 61338 *
6 61849 *
7 60941 *
8 62078 *
SPECjbb2005 (from 4 to 8) 61570 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8765
2 50232
3 60205
4 61550 *
5 61380 *
6 61531 *
7 61293 *
8 61117 *
SPECjbb2005 (from 4 to 8) 61374 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10723
2 49583
3 56904
4 60154 *
5 59956 *
6 59517 *
7 59784 *
8 59387 *
SPECjbb2005 (from 4 to 8) 59760 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9729
2 50722
3 55803
4 61080 *
5 61515 *
6 61317 *
7 60933 *
8 60432 *
SPECjbb2005 (from 4 to 8) 61055 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8788
2 48840
3 54411
4 60365 *
5 60513 *
6 59936 *
7 59684 *
8 60313 *
SPECjbb2005 (from 4 to 8) 60162 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9187
2 49895
3 58379
4 62007 *
5 62570 *
6 61791 *
7 62365 *
8 61406 *
SPECjbb2005 (from 4 to 8) 62028 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10607
2 51428
3 55875
4 62057 *
5 62809 *
6 61243 *
7 62364 *
8 62197 *
SPECjbb2005 (from 4 to 8) 62134 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8904
2 49018
3 53803
4 61572 *
5 61468 *
6 61221 *
7 61595 *
8 60976 *
SPECjbb2005 (from 4 to 8) 61366 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9812
2 48836
3 53705
4 60917 *
5 61198 *
6 60476 *
7 61655 *
8 60924 *
SPECjbb2005 (from 4 to 8) 61034 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8894
2 51349
3 55138
4 61907 *
5 62577 *
6 61232 *
7 61411 *
8 61262 *
SPECjbb2005 (from 4 to 8) 61678 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Feb 3, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 25-Feb-2010
