SPECjbb2005 SPECjbb2005 bops = 1559781, SPECjbb2005 bops/JVM = 97486
Dell Inc. PowerEdge M910 (Intel Xeon L7555, 1.86 GHz)
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

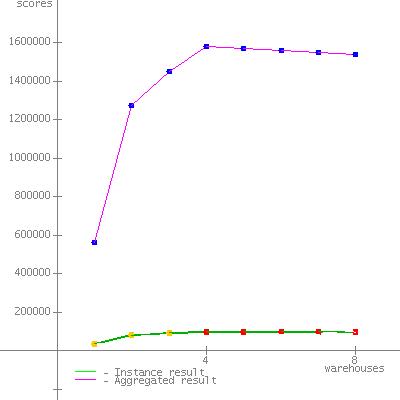

JVM run JVM Scores
199012
297462
397011
498801
596643
699286
795924
898456
995448
1095612
1199072
1296158
1396665
1497827
1598794
1697610
SPECjbb2005 bops = 1559781, SPECjbb2005 bops/JVM = 97486

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge M910 (Intel Xeon L7555, 1.86 GHz)
Processor Intel Xeon L7555 1.86 GHz (Intel Turbo Boost Technology up to 2.53 GHz)
MHz 1867
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 32 x 4 GB DDR3-1066 QR RDIMM
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 24 MB I+D L3 on chip per chip
Filesystem NTFS
Disks 1 x 146 GB 15000 RPM SAS
Other hardware N/A
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000] Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\specjbb2005\jvm\jre\lib\annotation.jar;
c:\specjbb2005\jvm\jre\lib\beans.jar;
c:\specjbb2005\jvm\jre\lib\java.util.jar;
c:\specjbb2005\jvm\jre\lib\jndi.jar;
c:\specjbb2005\jvm\jre\lib\logging.jar;
c:\specjbb2005\jvm\jre\lib\security.jar;
c:\specjbb2005\jvm\jre\lib\sql.jar;
c:\specjbb2005\jvm\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\jre\lib\rt.jar;
c:\specjbb2005\jvm\jre\lib\charsets.jar;
c:\specjbb2005\jvm\jre\lib\resources.jar;
c:\specjbb2005\jvm\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmxmlcrypto.jar;
c:\specjbb2005\jvm\jre\lib\management-agent.jar;
c:\specjbb2005\jvm\jre\lib\xml.jar;
c:\specjbb2005\jvm\jre\lib\jlm.jar;
c:\specjbb2005\jvm\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2, Enterprise Edition
Other software N/A
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date Mar 10, 2010
H/w available Mar-2010
JVM available Jul-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'Adjacent Cache Line Prefetch' in BIOS
  • "Lock pages in memory" enabled for benchmark user.
  • Each JVM instance was affinitized to 4 logical processors.
Notes
Command line options are described at:http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

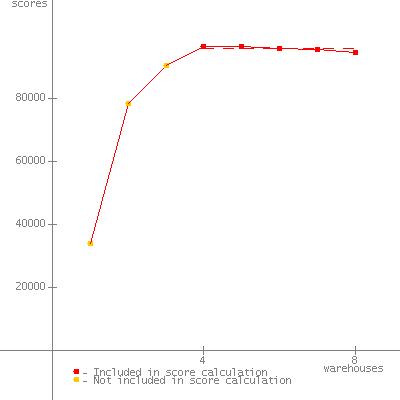

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35331
2 78287
3 90829
4 100759 *
5 98646 *
6 99083 *
7 98614 *
8 97958 *
SPECjbb2005 (from 4 to 8) 99012 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010

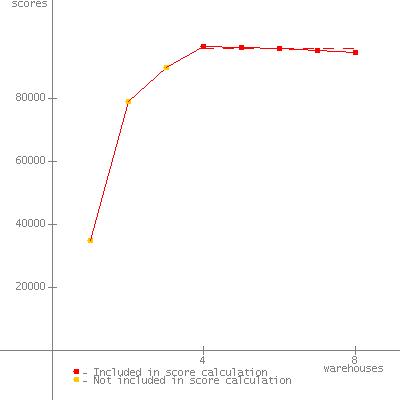

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35231
2 79820
3 91337
4 98686 *
5 98290 *
6 97388 *
7 96586 *
8 96357 *
SPECjbb2005 (from 4 to 8) 97462 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010

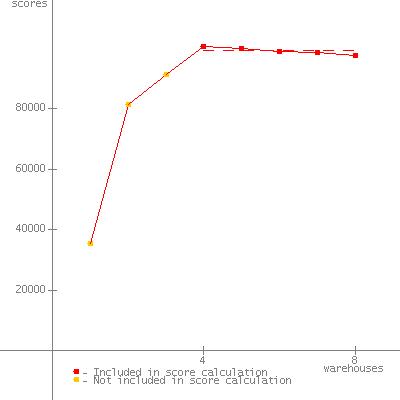

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35252
2 79275
3 89820
4 97718 *
5 98072 *
6 97174 *
7 96516 *
8 95578 *
SPECjbb2005 (from 4 to 8) 97011 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010

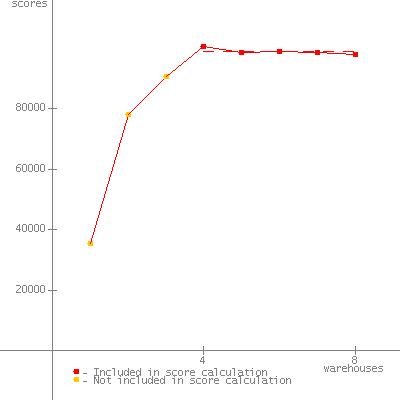

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35452
2 79875
3 92766
4 100054 *
5 99315 *
6 98842 *
7 97996 *
8 97797 *
SPECjbb2005 (from 4 to 8) 98801 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35343
2 77869
3 91023
4 98423 *
5 96606 *
6 96625 *
7 96151 *
8 95410 *
SPECjbb2005 (from 4 to 8) 96643 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35265
2 80949
3 92556
4 100713 *
5 99350 *
6 99560 *
7 98463 *
8 98342 *
SPECjbb2005 (from 4 to 8) 99286 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34111
2 78347
3 90619
4 96709 *
5 96705 *
6 95845 *
7 95599 *
8 94762 *
SPECjbb2005 (from 4 to 8) 95924 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37236
2 80461
3 92599
4 99652 *
5 99324 *
6 98270 *
7 97688 *
8 97344 *
SPECjbb2005 (from 4 to 8) 98456 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34661
2 80253
3 88525
4 96834 *
5 96128 *
6 95366 *
7 94509 *
8 94406 *
SPECjbb2005 (from 4 to 8) 95448 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34911
2 79053
3 89687
4 96489 *
5 96021 *
6 95692 *
7 95257 *
8 94603 *
SPECjbb2005 (from 4 to 8) 95612 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35269
2 81480
3 91418
4 100629 *
5 99931 *
6 98880 *
7 98436 *
8 97485 *
SPECjbb2005 (from 4 to 8) 99072 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34685
2 81753
3 87503
4 97814 *
5 96612 *
6 95964 *
7 95375 *
8 95025 *
SPECjbb2005 (from 4 to 8) 96158 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34045
2 78891
3 89116
4 97867 *
5 97116 *
6 96746 *
7 96100 *
8 95497 *
SPECjbb2005 (from 4 to 8) 96665 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34838
2 79599
3 92102
4 99708 *
5 98601 *
6 97796 *
7 97131 *
8 95899 *
SPECjbb2005 (from 4 to 8) 97827 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35214
2 79202
3 89688
4 100466 *
5 99234 *
6 98524 *
7 98172 *
8 97576 *
SPECjbb2005 (from 4 to 8) 98794 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35631
2 79092
3 92572
4 99364 *
5 98351 *
6 97531 *
7 96788 *
8 96018 *
SPECjbb2005 (from 4 to 8) 97610 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Mar 10, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 03-Jun-2010
