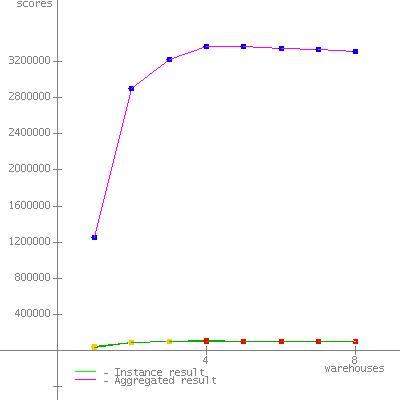

SPECjbb2005 SPECjbb2005 bops = 3343714, SPECjbb2005 bops/JVM = 104491
NEC Corporation Express5800/A1080a-E
Oracle Corporation Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29_BR8175970_BR9402966-129478-1.6.0_11-20100223-1645-windows-x86_64)

JVM run JVM Scores
1105509
2104348
3105035
4104519
5103056
6104795
7104800
8104638
9105084
10103980
11104250
12104575
13104784
14102813
15103739
16104815
17105168
18105497
19103011
20103977
21105308
22104594
23104191
24103442
25104917
26104560
27105259
28104202
29104736
30105106
31104654
32104352
SPECjbb2005 bops = 3343714, SPECjbb2005 bops/JVM = 104491

Hardware
Hardware Vendor NEC Corporation
Vendor URL http://www.nec.com
Model Express5800/A1080a-E
Processor Intel Xeon processor X7560 (Intel Turbo Boost Technology up to 2.666 GHz)
MHz 2266
# of Chips 8
# of Cores 64
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 128
Memory (MB) 524288
Memory Details 128 x 4GB DDR3-1066 RDIMMs
Primary cache 32KB(I) + 32KB(D) on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 24MB(I+D) on chip per chip
Filesystem NTFS
Disks 1 x 300GB 10krpm SAS
Other hardware
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29_BR8175970_BR9402966-129478-1.6.0_11-20100223-1645-windows-x86_64)
JVM Command Line java -Xms3900m -Xmx3900m -Xns3300m -XXaggressive -XlargePages -Xgc:genpar -XXcallProfiling -XXgcThreads:4 -XXtlaSize:min=4k,preferred=1024k spec.jbb.JBBmain -propfile SPECjbb.props -id $JVM_id
JVM Initial Heap Memory (MB) 3900
JVM Maximum Heap Memory (MB) 3900
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\jrockit1.6.0.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\jmapi.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\jmxmapi.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\rmp.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\latency.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\resources.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\rt.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\jsse.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\jce.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\charsets.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise
Other software
Test Information
Tested by NEC Corporation
SPEC license # 9006
Test location Fuchu, Tokyo, Japan
Test date May 25, 2010
H/w available Jul-2010
JVM available Feb-2010
OS available Oct-2009
Other s/w available
AOT Compilation

Tuning
  • Each JVM instance was bound to a different "consecutive CPU group of four" (like "CPU0-3" or "CPU4-7") in each "Node" respectively with "Set Affinity" feature in Windows Task Manager.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Hardware Prefetcher was disabled in BIOS.
  • Adjacent Cache Line Prefetch was disabled in BIOS.
  • Power Technology was set to Custom in BIOS.
  • Patrol Scrubbing was disabled in Server Web Console.
Notes
  • input.expected_peak_warehouse was set to 4, because Runtime.getRuntime().availableProcessors() doesn't return the number of processors in the system but return that in the processor group which JVM process belongs to on systems with Microsoft Windows Server 2008 R2 and more than 64 processor threads.
  • Command line options are described at http://download.oracle.com/docs/cd/E13150_01/jrockit_jvm/jrockit/jrdocs/refman/intro.html.


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39689
2 91538
3 101274
4 106325 *
5 106195 *
6 105591 *
7 104933 *
8 104499 *
SPECjbb2005 (from 4 to 8) 105509 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39159
2 90289
3 100157
4 105003 *
5 105360 *
6 104913 *
7 102791 *
8 103675 *
SPECjbb2005 (from 4 to 8) 104348 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39263
2 91243
3 101308
4 106137 *
5 105498 *
6 105031 *
7 104792 *
8 103718 *
SPECjbb2005 (from 4 to 8) 105035 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010

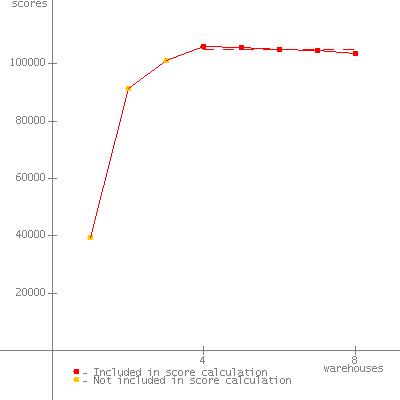

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38394
2 90707
3 100816
4 105144 *
5 104993 *
6 104874 *
7 103961 *
8 103625 *
SPECjbb2005 (from 4 to 8) 104519 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37892
2 88615
3 98717
4 103305 *
5 103763 *
6 103321 *
7 102905 *
8 101983 *
SPECjbb2005 (from 4 to 8) 103056 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010

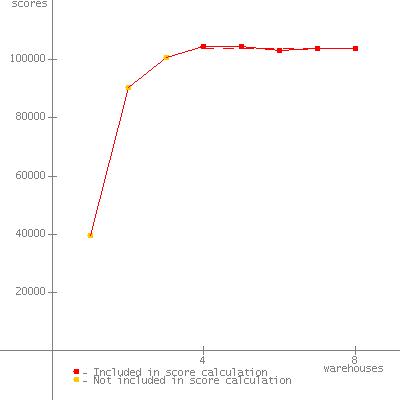

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39228
2 91542
3 100522
4 105074 *
5 105437 *
6 105088 *
7 104537 *
8 103842 *
SPECjbb2005 (from 4 to 8) 104795 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010

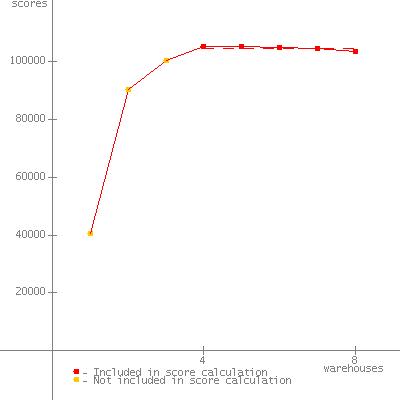

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40430
2 90589
3 100569
4 105367 *
5 105464 *
6 105102 *
7 104532 *
8 103537 *
SPECjbb2005 (from 4 to 8) 104800 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39273
2 91624
3 100303
4 105252 *
5 105123 *
6 104251 *
7 104842 *
8 103721 *
SPECjbb2005 (from 4 to 8) 104638 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39494
2 90543
3 100522
4 105686 *
5 105815 *
6 105125 *
7 104757 *
8 104038 *
SPECjbb2005 (from 4 to 8) 105084 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38512
2 91541
3 99868
4 105252 *
5 104393 *
6 103871 *
7 103190 *
8 103193 *
SPECjbb2005 (from 4 to 8) 103980 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38954
2 90977
3 100291
4 105262 *
5 105004 *
6 104378 *
7 102496 *
8 104108 *
SPECjbb2005 (from 4 to 8) 104250 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37032
2 89544
3 100936
4 105362 *
5 105143 *
6 103854 *
7 104543 *
8 103973 *
SPECjbb2005 (from 4 to 8) 104575 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38823
2 90346
3 101236
4 105940 *
5 105123 *
6 105339 *
7 103573 *
8 103944 *
SPECjbb2005 (from 4 to 8) 104784 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40697
2 89046
3 99593
4 103097 *
5 103085 *
6 103071 *
7 103081 *
8 101729 *
SPECjbb2005 (from 4 to 8) 102813 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39852
2 90392
3 99237
4 104403 *
5 104539 *
6 103701 *
7 103644 *
8 102410 *
SPECjbb2005 (from 4 to 8) 103739 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39190
2 91683
3 101006
4 105592 *
5 104383 *
6 104832 *
7 104975 *
8 104296 *
SPECjbb2005 (from 4 to 8) 104815 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39458
2 90672
3 100969
4 106389 *
5 105859 *
6 105730 *
7 104545 *
8 103319 *
SPECjbb2005 (from 4 to 8) 105168 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39398
2 90824
3 100776
4 105504 *
5 106300 *
6 106111 *
7 104495 *
8 105074 *
SPECjbb2005 (from 4 to 8) 105497 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39688
2 90333
3 99945
4 103673 *
5 103472 *
6 103374 *
7 102478 *
8 102059 *
SPECjbb2005 (from 4 to 8) 103011 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39564
2 90581
3 100595
4 104634 *
5 104646 *
6 103040 *
7 103752 *
8 103815 *
SPECjbb2005 (from 4 to 8) 103977 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40021
2 91409
3 101627
4 106008 *
5 106050 *
6 105080 *
7 104778 *
8 104622 *
SPECjbb2005 (from 4 to 8) 105308 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39241
2 90665
3 100655
4 105472 *
5 105316 *
6 105064 *
7 103401 *
8 103718 *
SPECjbb2005 (from 4 to 8) 104594 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39528
2 90924
3 101014
4 105193 *
5 105085 *
6 104113 *
7 103694 *
8 102870 *
SPECjbb2005 (from 4 to 8) 104191 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39249
2 89899
3 100299
4 103685 *
5 103342 *
6 103724 *
7 103424 *
8 103038 *
SPECjbb2005 (from 4 to 8) 103442 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39114
2 91737
3 100955
4 105957 *
5 104472 *
6 104263 *
7 105529 *
8 104366 *
SPECjbb2005 (from 4 to 8) 104917 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39985
2 90929
3 100155
4 105546 *
5 105589 *
6 103495 *
7 104446 *
8 103722 *
SPECjbb2005 (from 4 to 8) 104560 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37250
2 90807
3 101170
4 105492 *
5 106187 *
6 105155 *
7 105157 *
8 104306 *
SPECjbb2005 (from 4 to 8) 105259 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39092
2 91152
3 100489
4 104492 *
5 105123 *
6 104278 *
7 104289 *
8 102828 *
SPECjbb2005 (from 4 to 8) 104202 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38816
2 92156
3 101052
4 103938 *
5 105201 *
6 105504 *
7 104957 *
8 104081 *
SPECjbb2005 (from 4 to 8) 104736 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41771
2 90903
3 101340
4 106664 *
5 105417 *
6 104925 *
7 104761 *
8 103764 *
SPECjbb2005 (from 4 to 8) 105106 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010


JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39263
2 90551
3 100447
4 103538 *
5 105252 *
6 105400 *
7 104991 *
8 104088 *
SPECjbb2005 (from 4 to 8) 104654 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010

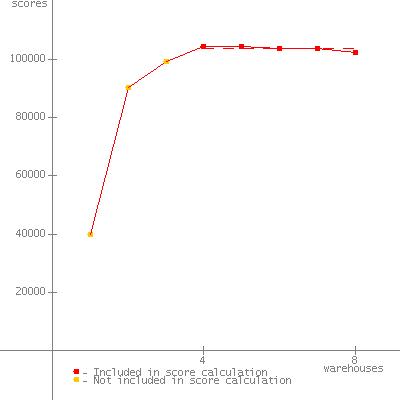

JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39447
2 91646
3 100887
4 105645 *
5 105405 *
6 104464 *
7 102760 *
8 103486 *
SPECjbb2005 (from 4 to 8) 104352 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: May 25, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Jun-2010
