SPECjbb2005 SPECjbb2005 bops = 946596, SPECjbb2005 bops/JVM = 157766
Fujitsu PRIMERGY RX200 S6, Intel Xeon X5690, 3.46 GHz
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)

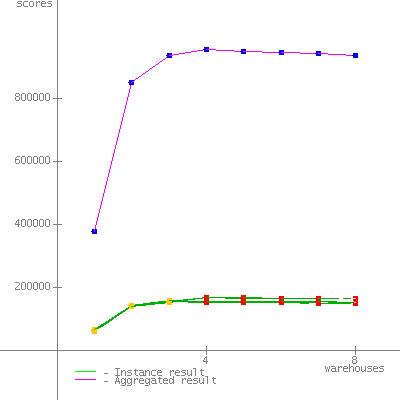

JVM run JVM Scores
1154912
2152095
3152155
4166894
5165794
6154746
SPECjbb2005 bops = 946596, SPECjbb2005 bops/JVM = 157766

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY RX200 S6, Intel Xeon X5690, 3.46 GHz
Processor Intel Xeon X5690 (Intel Turbo Boost Technology up to 3.73 GHz)
MHz 3467
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 49152
Memory Details 12x4GB PC3-10600R (CAS 9-9-9)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 12MB(I+D) on chip, per chip
Filesystem NTFS
Disks Intel 2.5", SATA, 32GB, SSD
Other hardware CX1000 S1 as system unit
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /AFFINITY [0xF,0x70,0x700,0xF000,0x70000,0x700000] /B java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\Java\java\jre\lib\annotation.jar;
C:\Program Files\Java\java\jre\lib\beans.jar;
C:\Program Files\Java\java\jre\lib\java.util.jar;
C:\Program Files\Java\java\jre\lib\jndi.jar;
C:\Program Files\Java\java\jre\lib\logging.jar;
C:\Program Files\Java\java\jre\lib\security.jar;
C:\Program Files\Java\java\jre\lib\sql.jar;
C:\Program Files\Java\java\jre\lib\ibmorb.jar;
C:\Program Files\Java\java\jre\lib\ibmorbapi.jar;
C:\Program Files\Java\java\jre\lib\ibmcfw.jar;
C:\Program Files\Java\java\jre\lib\rt.jar;
C:\Program Files\Java\java\jre\lib\charsets.jar;
C:\Program Files\Java\java\jre\lib\resources.jar;
C:\Program Files\Java\java\jre\lib\ibmpkcs.jar;
C:\Program Files\Java\java\jre\lib\ibmcertpathfw.jar;
C:\Program Files\Java\java\jre\lib\ibmjgssfw.jar;
C:\Program Files\Java\java\jre\lib\ibmjssefw.jar;
C:\Program Files\Java\java\jre\lib\ibmsaslfw.jar;
C:\Program Files\Java\java\jre\lib\ibmjcefw.jar;
C:\Program Files\Java\java\jre\lib\ibmjgssprovider.jar;
C:\Program Files\Java\java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\Java\java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\Java\java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\Java\java\jre\lib\management-agent.jar;
C:\Program Files\Java\java\jre\lib\xml.jar;
C:\Program Files\Java\java\jre\lib\jlm.jar;
C:\Program Files\Java\java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise
Other software IBM Websphere application server V7.0 for Windows on x86-64bit
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Nov 24, 2010
H/w available Feb-2011
JVM available Nov-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Turned off "DCU Streamer Prefetch" in BIOS.
  • Turned off "DCU IP Prefetch" in BIOS.
  • Turned off "Data Reuse Optimization" in BIOS.
  • Each JVM instance was affinitized to 2 cores of a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes



JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61812
2 143584
3 158671
4 156073 *
5 155924 *
6 155108 *
7 154541 *
8 152914 *
SPECjbb2005 (from 4 to 8) 154912 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Nov 24, 2010

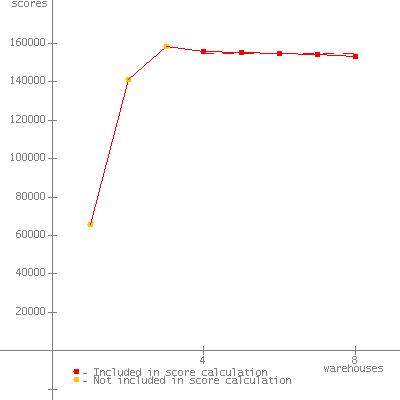

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62092
2 143317
3 156562
4 153981 *
5 152573 *
6 151826 *
7 151000 *
8 151091 *
SPECjbb2005 (from 4 to 8) 152095 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Nov 24, 2010

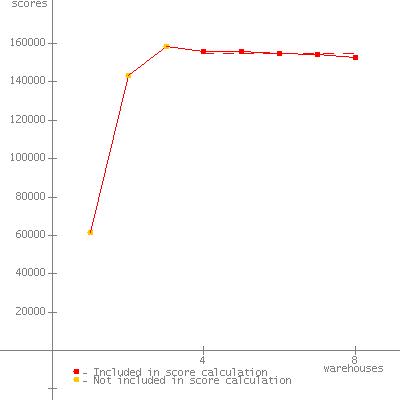

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65428
2 143133
3 156270
4 153696 *
5 153212 *
6 151961 *
7 151571 *
8 150336 *
SPECjbb2005 (from 4 to 8) 152155 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Nov 24, 2010

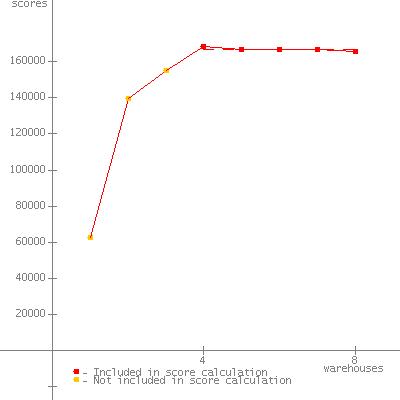

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62887
2 139442
3 155195
4 168571 *
5 166509 *
6 166881 *
7 166953 *
8 165557 *
SPECjbb2005 (from 4 to 8) 166894 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Nov 24, 2010

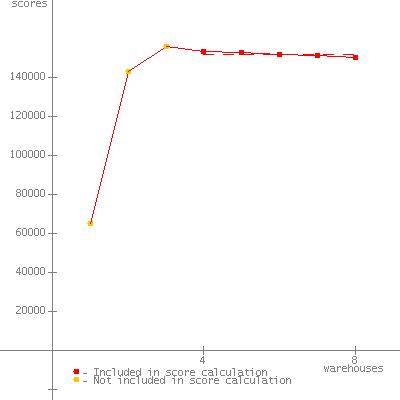

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61481
2 139065
3 151441
4 167741 *
5 167136 *
6 165573 *
7 164589 *
8 163930 *
SPECjbb2005 (from 4 to 8) 165794 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Nov 24, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65463
2 141328
3 158594
4 155796 *
5 155534 *
6 154864 *
7 154475 *
8 153059 *
SPECjbb2005 (from 4 to 8) 154746 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Nov 24, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 09-Mar-2011
