SPECjbb2005 SPECjbb2005 bops = 1572533, SPECjbb2005 bops/JVM = 196567
IBM Corporation IBM System x3550 M4
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

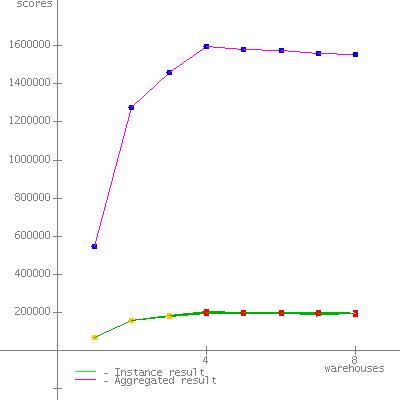

JVM run JVM Scores
1196390
2197656
3196558
4199954
5196582
6192144
7195943
8197306
SPECjbb2005 bops = 1572533, SPECjbb2005 bops/JVM = 196567

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3550 M4
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology up to 3.8 GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 16 x 8192MB, 2Rx4 PC3-12800R; slots 1, 2, 4, 5, 8, 9, 11, 12, 13, 14, 16, 17, 20, 21, 23 and 24 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 20 MB per processor
Filesystem NTFS
Disks 1 x 200GB SSD(x3550 M4 High Power Efficiency Kit, Feature Code: A2V6)
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java7_0229\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\Java7_0229\jre\lib\se-service.jar;
C:\IBM\Java7_0229\jre\lib\math.jar;
C:\IBM\Java7_0229\jre\lib\jlm.jar;
C:\IBM\Java7_0229\jre\lib\ibmorb.jar;
C:\IBM\Java7_0229\jre\lib\ibmorbapi.jar;
C:\IBM\Java7_0229\jre\lib\ibmcfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmpkcs.jar;
C:\IBM\Java7_0229\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjgssfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjssefw.jar;
C:\IBM\Java7_0229\jre\lib\ibmsaslfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjcefw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java7_0229\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java7_0229\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java7_0229\jre\lib\xmldsigfw.jar;
C:\IBM\Java7_0229\jre\lib\xml.jar;
C:\IBM\Java7_0229\jre\lib\charsets.jar;
C:\IBM\Java7_0229\jre\lib\resources.jar;
C:\IBM\Java7_0229\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Mar 4, 2012
H/w available Mar-2012
JVM available Jun 2012
OS available Feb-2011
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • BIOS Settings
    • Turbo Mode: Enable
    • Hardware Prefetcher: Disable
    • Adjacent Cache Prefetch: Disable
    • DCU Streamer Prefetcher: Disable
    • DCU IP Prefetcher: Disable
    • QPI Link Frequency: Max Performance
    • Memory Power Management: Disable
    • Patrol Scrub: Disable
    • Memory Data Scrambling: Disable
    • Active Energy Management: Capping Disabled
    • Power/Performance Bias: Platform Controlled
    • Platform Controlled Type: Max Performance
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69033
2 160311
3 181564
4 199686 *
5 197479 *
6 195876 *
7 194140 *
8 194770 *
SPECjbb2005 (from 4 to 8) 196390 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69034
2 159994
3 182367
4 200953 *
5 199256 *
6 198227 *
7 195478 *
8 194365 *
SPECjbb2005 (from 4 to 8) 197656 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70130
2 160001
3 180641
4 200129 *
5 198060 *
6 196207 *
7 194774 *
8 193621 *
SPECjbb2005 (from 4 to 8) 196558 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68683
2 160157
3 186250
4 203082 *
5 200262 *
6 199930 *
7 199060 *
8 197436 *
SPECjbb2005 (from 4 to 8) 199954 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68876
2 158493
3 183926
4 199323 *
5 197288 *
6 196645 *
7 195802 *
8 193853 *
SPECjbb2005 (from 4 to 8) 196582 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 66891
2 158469
3 178845
4 194599 *
5 192638 *
6 192557 *
7 191326 *
8 189599 *
SPECjbb2005 (from 4 to 8) 192144 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 66899
2 159085
3 180956
4 198401 *
5 196805 *
6 195729 *
7 194725 *
8 194054 *
SPECjbb2005 (from 4 to 8) 195943 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 67443
2 159106
3 184305
4 201389 *
5 198952 *
6 197173 *
7 195376 *
8 193641 *
SPECjbb2005 (from 4 to 8) 197306 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 4, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 23-Mar-2012
