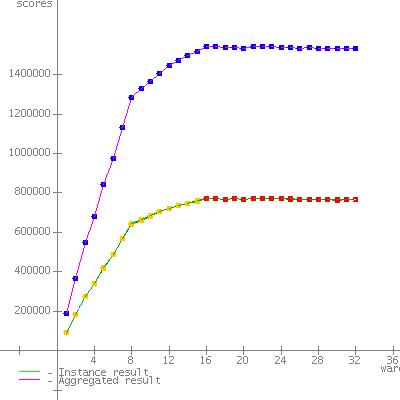

SPECjbb2005 SPECjbb2005 bops = 1537350, SPECjbb2005 bops/JVM = 768675
Fujitsu PRIMERGY TX300 S7, Intel Xeon E5-2690, 2.90 GHz
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_31

JVM run JVM Scores
1768582
2768768
SPECjbb2005 bops = 1537350, SPECjbb2005 bops/JVM = 768675

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY TX300 S7, Intel Xeon E5-2690, 2.90 GHz
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology up to 3.80 GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 16 x 8 GB PC3L-12800R-11, ECC
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 20MB(I+D) on chip, per chip
Filesystem NTFS
Disks 1 x Fujitsu S26361-F4556-E100 (2.5", SATA, 100GB, SSD)
Other hardware N/A
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_31
JVM Command Line start /HIGH /AFFINITY [0xFFFF,0xFFFF0000] /B java -server -Xmx29g -Xms29g -Xmn24g -XX:BiasedLockingStartupDelay=200 -XX:ParallelGCThreads=16 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jdk1.6.0_31\jre\lib\alt-string.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\alt-rt.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\resources.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\rt.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\jsse.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\jce.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\charsets.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jdk1.6.0_31\jre\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise SP1
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Feb 24, 2012
H/w available Mar-2012
JVM available Feb-2012
OS available Feb-2011
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Set "Hardware Prefetch = Disable" in BIOS.
  • Set "Adjacent Sector Prefetch = Disable" in BIOS.
  • Set "DCU Streamer Prefetch = Disable" in BIOS.
  • Set "SAS/SATA OpROM = LSI MegaRAID" in BIOS.
Notes
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • input.expected_peak_warehouse was set to 16 due to a known inconsistency in processor reporting with the JVM used.
  • This result has been measured on PRIMERGY RX350 S7. The PRIMERGY RX350 S7 and PRIMERGY TX300 S7 are electronically equivalent.

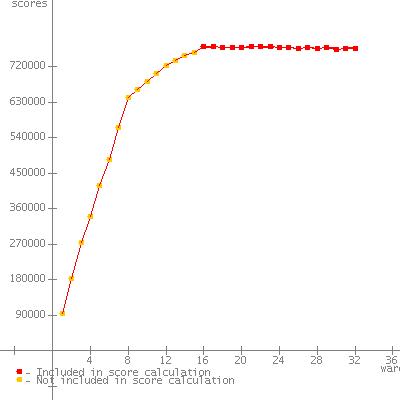

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 93562
2 183682
3 273717
4 339592
5 418575
6 485218
7 566282
8 641655
9 662355
10 682080
11 703245
12 722166
13 737107
14 748765
15 756238
16 770948 *
17 772266 *
18 768811 *
19 769817 *
20 768005 *
21 772092 *
22 771452 *
23 770235 *
24 769287 *
25 767766 *
26 767338 *
27 768388 *
28 766132 *
29 767691 *
30 763728 *
31 766803 *
32 765138 *
SPECjbb2005 (from 16 to 32) 768582 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 24, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 93680
2 184638
3 275441
4 342296
5 422215
6 487123
7 567897
8 643934
9 665487
10 684443
11 704989
12 722924
13 736778
14 747697
15 760572
16 771206 *
17 771339 *
18 768211 *
19 769657 *
20 767035 *
21 772263 *
22 770657 *
23 770242 *
24 769888 *
25 769241 *
26 765645 *
27 769113 *
28 768940 *
29 764897 *
30 767297 *
31 765546 *
32 767874 *
SPECjbb2005 (from 16 to 32) 768768 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 24, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Mar-2012
