SPECjbb2005 SPECjbb2005 bops = 1498606, SPECjbb2005 bops/JVM = 187326
IBM Corporation IBM BladeCenter HS23
IBM Corporation IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

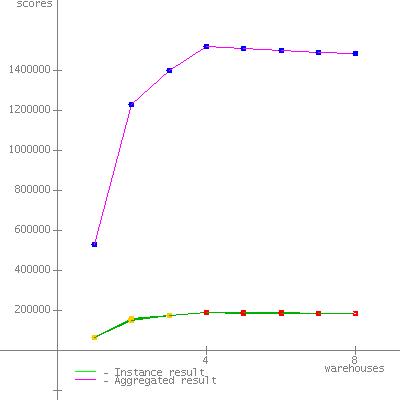

JVM run JVM Scores
1187979
2187882
3188131
4186102
5187381
6187179
7187244
8186708
SPECjbb2005 bops = 1498606, SPECjbb2005 bops/JVM = 187326

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM BladeCenter HS23
Processor Intel Xeon E5-2680 (Intel Turbo Boost Technology up to 3.5 GHz)
MHz 2700
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 16 x 8GB 2Rx8 PC3-12800R-11, ECC
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 300GB 10 K SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH c:\SPECjbb2005\jbb.jar;
c:\SPECjbb2005\check.jar
JVM BOOTCLASSPATH c:\sdk\jre\bin\compressedrefs\jclSC170\vm.jar;
c:\sdk\jre\lib\se-service.jar;
c:\sdk\jre\lib\math.jar;
c:\sdk\jre\lib\jlm.jar;
c:\sdk\jre\lib\ibmorb.jar;
c:\sdk\jre\lib\ibmorbapi.jar;
c:\sdk\jre\lib\ibmcfw.jar;
c:\sdk\jre\lib\ibmpkcs.jar;
c:\sdk\jre\lib\ibmcertpathfw.jar;
c:\sdk\jre\lib\ibmjgssfw.jar;
c:\sdk\jre\lib\ibmjssefw.jar;
c:\sdk\jre\lib\ibmsaslfw.jar;
c:\sdk\jre\lib\ibmjcefw.jar;
c:\sdk\jre\lib\ibmjgssprovider.jar;
c:\sdk\jre\lib\ibmjsseprovider2.jar;
c:\sdk\jre\lib\ibmcertpathprovider.jar;
c:\sdk\jre\lib\xmldsigfw.jar;
c:\sdk\jre\lib\xml.jar;
c:\sdk\jre\lib\charsets.jar;
c:\sdk\jre\lib\resources.jar;
c:\sdk\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Mar 1, 2012
H/w available Mar-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available
AOT Compilation
None
Tuning
    Operating System Tunings
    • Affinity Masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000
    • "lock pages in memory" was enabled for the user running the benchmark
  • BIOS Configuration
    • Operating mode set to "Maximum Performance"
    • HW Prefetch set to Disabled
    • Adjacent Sector Prefetch set to Disabled
    • DCU Prefetcher set to Disabled
Notes
"Notes here"

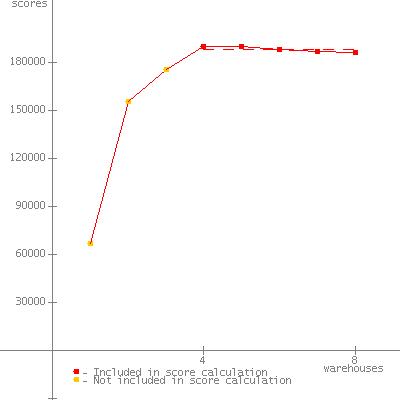

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 67280
2 154263
3 173392
4 190198 *
5 188764 *
6 188042 *
7 186706 *
8 186184 *
SPECjbb2005 (from 4 to 8) 187979 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012

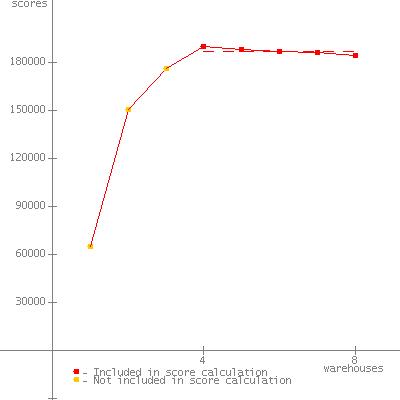

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65620
2 157881
3 175394
4 190495 *
5 188530 *
6 188316 *
7 186865 *
8 185203 *
SPECjbb2005 (from 4 to 8) 187882 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 67039
2 155215
3 175141
4 189982 *
5 189759 *
6 188154 *
7 186655 *
8 186104 *
SPECjbb2005 (from 4 to 8) 188131 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012

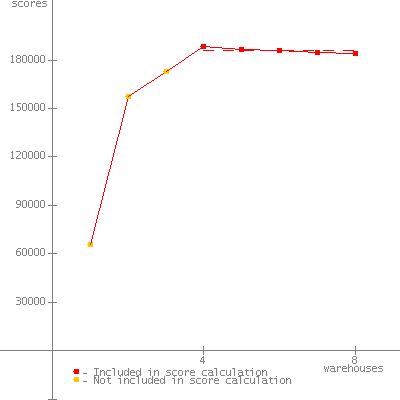

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65985
2 157504
3 173215
4 188604 *
5 186725 *
6 186203 *
7 184841 *
8 184137 *
SPECjbb2005 (from 4 to 8) 186102 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012

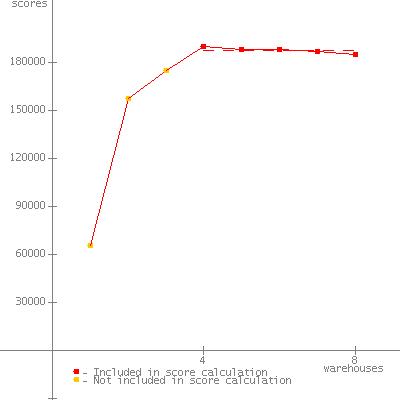

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 64929
2 150808
3 176737
4 190477 *
5 188479 *
6 186906 *
7 186632 *
8 184410 *
SPECjbb2005 (from 4 to 8) 187381 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65437
2 151790
3 175290
4 189807 *
5 188209 *
6 186709 *
7 186124 *
8 185049 *
SPECjbb2005 (from 4 to 8) 187179 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 66379
2 150863
3 174052
4 189636 *
5 188643 *
6 186342 *
7 186343 *
8 185255 *
SPECjbb2005 (from 4 to 8) 187244 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65218
2 150682
3 173346
4 189931 *
5 187772 *
6 186114 *
7 185578 *
8 184145 *
SPECjbb2005 (from 4 to 8) 186708 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 1, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 23-Mar-2012
