SPECjbb2005 SPECjbb2005 bops = 1501049, SPECjbb2005 bops/JVM = 750525
Hitachi, Ltd. Hitachi Compute Blade 2000 server blade (2.9GHz Xeon E5-2690)
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30

JVM run JVM Scores
1750284
2750765
SPECjbb2005 bops = 1501049, SPECjbb2005 bops/JVM = 750525

Hardware
Hardware Vendor Hitachi, Ltd.
Vendor URL http://www.hitachi.com
Model Hitachi Compute Blade 2000 server blade (2.9GHz Xeon E5-2690)
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology up to 3.80 GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 16 x 8 GB 2Rx4 PC3L-10600R-9, ECC
Primary cache 32KB(I) + 32KB(D) on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 20 MB(I+D) on chip per chip
Filesystem NTFS
Disks 2 x 300 GB 10000 rpm SAS RAID1 configuration
Other hardware
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command Line start /HIGH /AFFINITY [FFFF,FFFF0000] java -server -Xmx29g -Xms29g -Xmn24g -XX:ParallelGCThreads=16 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jre6\lib\alt-string.jar;
C:\Program Files\Java\jre6\lib\alt-rt.jar;
C:\Program Files\Java\jre6\lib\resources.jar;
C:\Program Files\Java\jre6\lib\rt.jar;
C:\Program Files\Java\jre6\lib\sunrsasign.jar;
C:\Program Files\Java\jre6\lib\jsse.jar;
C:\Program Files\Java\jre6\lib\jce.jar;
C:\Program Files\Java\jre6\lib\charsets.jar;
C:\Program Files\Java\jre6\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jre6\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise SP1 (64-bit)
Other software None
Test Information
Tested by Hitachi, Ltd.
SPEC license # 35
Test location Japan
Test date Mar 12, 2012
H/w available Apr-2012
JVM available Dec-2011
OS available Feb-2011
Other s/w available
AOT Compilation
None
Tuning
  • Turned off "Hardware Prefetcher" in BIOS.
  • Turned off "DCU Streamer Prefetch" in BIOS.
  • "Energy Performance" set to "Performance" in BIOS.
  • Each JVM instance had the affinity mask set to bind to 16 cores each, 2 JVMs total
Notes
  • input.expected_peak_warehouse is set to 16
  • Hitachi Compute Blade 2000 and BladeSymphony BS2000 are electronically equivalent. The result has been measured on a BladeSymphony BS2000.
  • Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

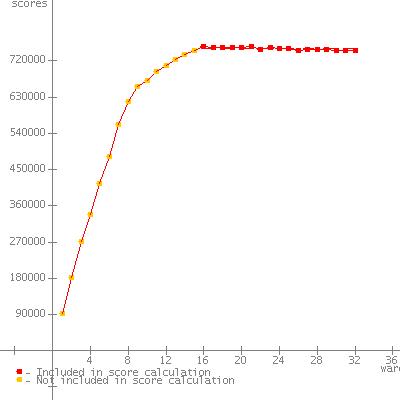

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 92344
2 181949
3 268321
4 337655
5 412589
6 478421
7 558794
8 623074
9 652202
10 667656
11 690980
12 706545
13 722638
14 732283
15 742625
16 755097 *
17 754715 *
18 750506 *
19 753834 *
20 752863 *
21 754326 *
22 749469 *
23 751782 *
24 750893 *
25 750103 *
26 747798 *
27 749832 *
28 748724 *
29 745588 *
30 747726 *
31 744780 *
32 746792 *
SPECjbb2005 (from 16 to 32) 750284 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Mar 12, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 92758
2 182931
3 271477
4 337931
5 415786
6 482534
7 561756
8 619069
9 656275
10 671377
11 693945
12 709198
13 724002
14 735265
15 745590
16 756870 *
17 753426 *
18 752621 *
19 754639 *
20 753001 *
21 755384 *
22 749655 *
23 752746 *
24 751573 *
25 750947 *
26 746834 *
27 749274 *
28 749617 *
29 748006 *
30 745722 *
31 745604 *
32 747089 *
SPECjbb2005 (from 16 to 32) 750765 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Mar 12, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 04-Apr-2012
