SPECjbb2005 SPECjbb2005 bops = 2772103, SPECjbb2005 bops/JVM = 138605
HUAWEI Inc. HUAWEI RH5885 (Intel Xeon E7-8870, 2.40 GHz)
IBM IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

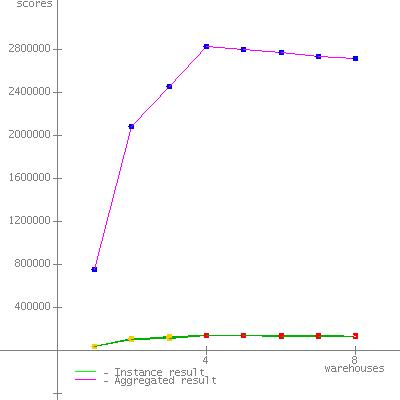

JVM run JVM Scores
1138072
2138660
3138688
4139983
5138856
6139689
7139042
8137842
9139450
10138261
11139177
12138171
13139484
14137482
15139374
16139649
17138515
18139538
19137663
20134507
SPECjbb2005 bops = 2772103, SPECjbb2005 bops/JVM = 138605

Hardware
Hardware Vendor HUAWEI Inc.
Vendor URL http://www.huawei.com
Model HUAWEI RH5885 (Intel Xeon E7-8870, 2.40 GHz)
Processor Intel Xeon E7-8870 2.40 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
MHz 2400
# of Chips 4
# of Cores 40
# of Cores/Chip 10
HW Threading Enabled? yes
Procs Avail to Java 80
Memory (MB) 1048576
Memory Details 1024 (64 x 16 GB 4Rx4 PC3-8500R-7, ECC)
Primary cache 32 KB (I) + 32 KB (D)
Secondary cache 256 KB (I+D) on chip per core
Other cache 30 MB (I+D) L3 on chip per chip
Filesystem NTFS
Disks 1 x 96GB SSD
Other hardware N/A
Software
Software Vendor IBM
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command Line start /high /node [0,1,2,3] /affinity [F,F0,F00,F000,F0000] -Xms1700m -Xmx1700m -Xmn1375m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1700
JVM Maximum Heap Memory (MB) 1700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\1.70\lib\aggressive.jar;
C:\1.70\bin\compressedrefs\jclSC170\vm.jar;
C:\1.70\lib\se-service.jar;
C:\1.70\lib\math.jar;
C:\1.70\lib\jlm.jar;
C:\1.70\lib\ibmorb.jar;
C:\1.70\lib\ibmorbapi.jar;
C:\1.70\lib\ibmcfw.jar;
C:\1.70\lib\ibmpkcs.jar;
C:\1.70\lib\ibmcertpathfw.jar;
C:\1.70\lib\ibmjgssfw.jar;
C:\1.70\lib\ibmjssefw.jar;
C:\1.70\lib\ibmsaslfw.jar;
C:\1.70\lib\ibmjcefw.jar;
C:\1.70\lib\ibmjgssprovider.jar;
C:\1.70\lib\ibmjsseprovider2.jar;
C:\1.70\lib\ibmcertpathprovider.jar;
C:\1.70\lib\xmldsigfw.jar;
C:\1.70\lib\xml.jar;
C:\1.70\lib\charsets.jar;
C:\1.70\lib\resources.jar;
C:\1.70\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise Edition SP1
Other software N/A
Test Information
Tested by Huawei
SPEC license #
Test location Hangzhou.RPC
Test date Oct 16, 2012
H/w available October-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available N/A
AOT Compilation
N/A
Tuning
Operating system tunings
  • Using the local security settings console, "Lock pages in memory" was enabled for the user running the benchmark
  • Hardware Prefetcher Disabled in BIOS.Adjacent Cache Line Prefetch Disabled in BIOS.Maximum Performance Mode selected in BIOS.Each JVM instance was affinitized to 1 chip.The parameter expected_peak_warehouse was set to 4.
Notes
  • Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36417
2 102625
3 118671
4 140257 *
5 139129 *
6 138082 *
7 136831 *
8 136063 *
SPECjbb2005 (from 4 to 8) 138072 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35917
2 104790
3 116826
4 140922 *
5 140380 *
6 138511 *
7 137477 *
8 136012 *
SPECjbb2005 (from 4 to 8) 138660 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

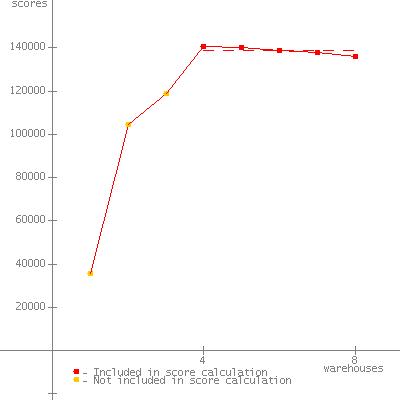

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35805
2 104462
3 118679
4 140760 *
5 140084 *
6 138744 *
7 137705 *
8 136145 *
SPECjbb2005 (from 4 to 8) 138688 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38628
2 104792
3 122065
4 143153 *
5 142004 *
6 139686 *
7 138126 *
8 136947 *
SPECjbb2005 (from 4 to 8) 139983 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35082
2 106289
3 125359
4 142561 *
5 140466 *
6 138141 *
7 137082 *
8 136031 *
SPECjbb2005 (from 4 to 8) 138856 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38652
2 106370
3 124201
4 143005 *
5 140462 *
6 140001 *
7 138003 *
8 136973 *
SPECjbb2005 (from 4 to 8) 139689 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36592
2 106065
3 123834
4 141981 *
5 141126 *
6 138651 *
7 137027 *
8 136422 *
SPECjbb2005 (from 4 to 8) 139042 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37524
2 103598
3 126596
4 141161 *
5 139371 *
6 137653 *
7 135727 *
8 135299 *
SPECjbb2005 (from 4 to 8) 137842 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

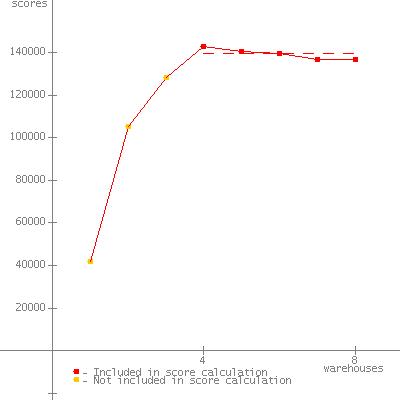

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41716
2 105128
3 128336
4 143093 *
5 140777 *
6 139719 *
7 136855 *
8 136806 *
SPECjbb2005 (from 4 to 8) 139450 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38402
2 105856
3 123609
4 141425 *
5 139670 *
6 138190 *
7 136607 *
8 135413 *
SPECjbb2005 (from 4 to 8) 138261 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

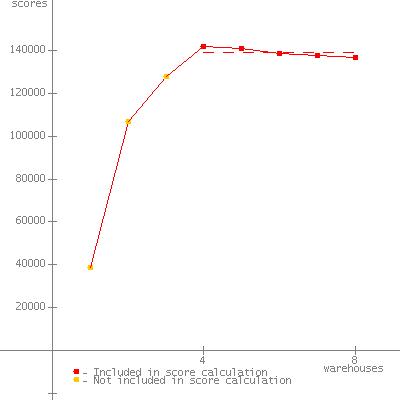

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38825
2 107053
3 127720
4 141985 *
5 140972 *
6 138766 *
7 137421 *
8 136742 *
SPECjbb2005 (from 4 to 8) 139177 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

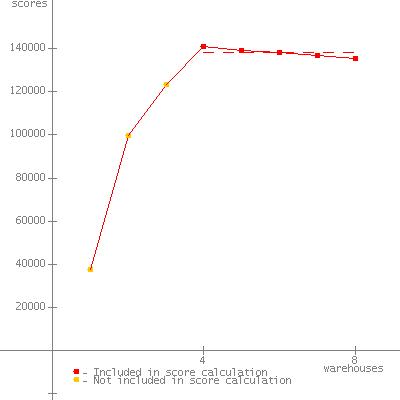

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37684
2 99681
3 123232
4 141135 *
5 139292 *
6 138354 *
7 136646 *
8 135429 *
SPECjbb2005 (from 4 to 8) 138171 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

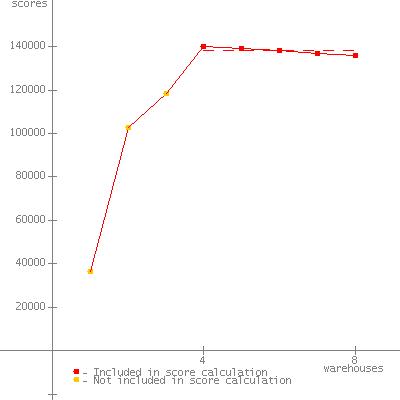

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36772
2 102724
3 126375
4 142505 *
5 141229 *
6 139728 *
7 137662 *
8 136298 *
SPECjbb2005 (from 4 to 8) 139484 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

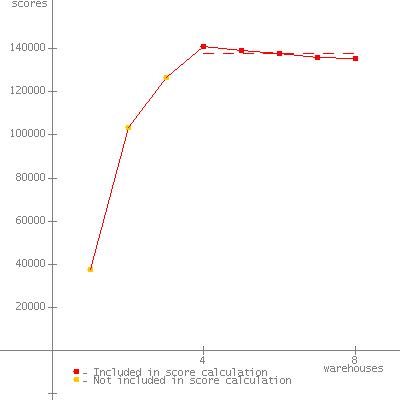

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37647
2 104935
3 121154
4 140595 *
5 139462 *
6 137496 *
7 135194 *
8 134663 *
SPECjbb2005 (from 4 to 8) 137482 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35922
2 108203
3 126073
4 142718 *
5 141267 *
6 138859 *
7 137201 *
8 136823 *
SPECjbb2005 (from 4 to 8) 139374 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38602
2 101074
3 124756
4 143075 *
5 140857 *
6 139503 *
7 138112 *
8 136697 *
SPECjbb2005 (from 4 to 8) 139649 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38451
2 102712
3 121950
4 141018 *
5 140033 *
6 138581 *
7 136904 *
8 136041 *
SPECjbb2005 (from 4 to 8) 138515 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37392
2 104281
3 119528
4 142102 *
5 140890 *
6 139555 *
7 138088 *
8 137055 *
SPECjbb2005 (from 4 to 8) 139538 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

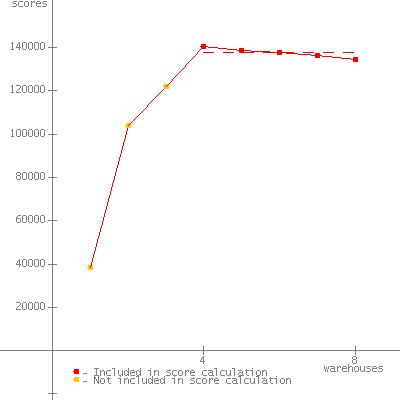

JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38376
2 104182
3 122112
4 140700 *
5 138772 *
6 137677 *
7 136435 *
8 134731 *
SPECjbb2005 (from 4 to 8) 137663 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

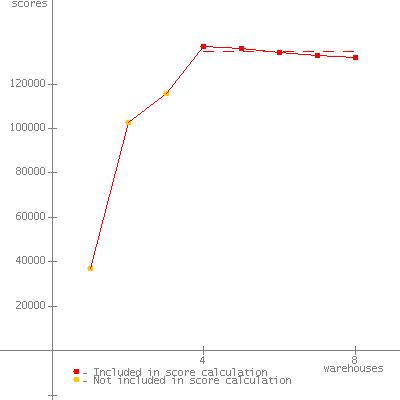

JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36990
2 102722
3 116001
4 137103 *
5 136172 *
6 134263 *
7 132918 *
8 132077 *
SPECjbb2005 (from 4 to 8) 134507 SPECjbb2005 bops
SPEC license # MISSING Tested by: Huawei Test date: Oct 16, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 15-Nov-2012
