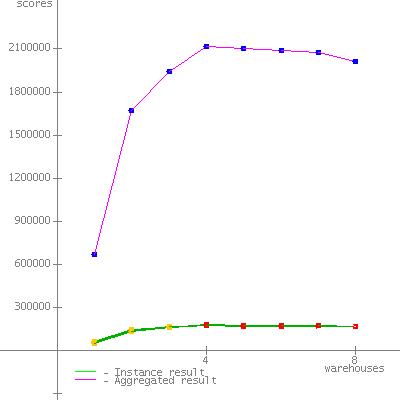

SPECjbb2005 SPECjbb2005 bops = 2080737, SPECjbb2005 bops/JVM = 173395
IBM Corporation IBM System x3650 M4 HD
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1173544
2172265
3172633
4175984
5173832
6173687
7172788
8173544
9172360
10176458
11169836
12173806
SPECjbb2005 bops = 2080737, SPECjbb2005 bops/JVM = 173395

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3650 M4 HD
Processor Intel Xeon E5-2697 v2 (Intel Turbo Boost Technology up to 3.5 GHz)
MHz 2700
# of Chips 2
# of Cores 24
# of Cores/Chip 12
HW Threading Enabled? Yes
Procs Avail to Java 48
Memory (MB) 262144
Memory Details 16 x 16384MB, 2Rx4 PC3-14900R; slots 1, 2, 4, 5, 8, 9, 11, 12, 13, 14, 16, 17, 20, 21, 23 and 24 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 30 MB per processor
Filesystem NTFS
Disks 1 x 200GB 2.5" SATA SSD
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line set JAVAOPTIONS=-Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1400
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\ibm_sdk70\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\ibm_sdk70\jre\lib\se-service.jar;
C:\IBM\ibm_sdk70\jre\lib\math.jar;
C:\IBM\ibm_sdk70\jre\lib\jlm.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorb.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmorbapi.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmpkcs.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjssefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmsaslfw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjcefw.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjgssprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmjsseprovider2.jar;
C:\IBM\ibm_sdk70\jre\lib\ibmcertpathprovider.jar;
C:\IBM\ibm_sdk70\jre\lib\xmldsigfw.jar;
C:\IBM\ibm_sdk70\jre\lib\xml.jar;
C:\IBM\ibm_sdk70\jre\lib\charsets.jar;
C:\IBM\ibm_sdk70\jre\lib\resources.jar;
C:\IBM\ibm_sdk70\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Aug 28, 2013
H/w available Dec 2013
JVM available Mar 2012
OS available July 2008
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000, 0xF00000000, 0xF000000000, 0xF0000000000, 0xF00000000000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • BIOS Settings
    • Turbo Mode: Enable
    • All Prefetcher: Disable
    • QPI Link Frequency: Max Performance
    • Memory Power Management: Disable
    • Patrol Scrub: Disable
    • Memory Data Scrambling: Disable
    • Active Energy Management: Capping Disabled
    • Power/Performance Bias: Platform Controlled
    • Platform Controlled Type: Max Performance
Notes



JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54050
2 141879
3 164966
4 177355 *
5 175470 *
6 174310 *
7 172593 *
8 167989 *
SPECjbb2005 (from 4 to 8) 173544 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55529
2 136436
3 158491
4 175715 *
5 174367 *
6 173142 *
7 172033 *
8 166066 *
SPECjbb2005 (from 4 to 8) 172265 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53380
2 133745
3 159845
4 174739 *
5 175403 *
6 172962 *
7 172796 *
8 167266 *
SPECjbb2005 (from 4 to 8) 172633 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54249
2 139898
3 162537
4 179537 *
5 177687 *
6 176779 *
7 175598 *
8 170320 *
SPECjbb2005 (from 4 to 8) 175984 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62712
2 143664
3 161940
4 177252 *
5 176136 *
6 174685 *
7 173445 *
8 167640 *
SPECjbb2005 (from 4 to 8) 173832 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54514
2 140774
3 164687
4 176482 *
5 175145 *
6 174748 *
7 174306 *
8 167754 *
SPECjbb2005 (from 4 to 8) 173687 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54422
2 140650
3 162126
4 176272 *
5 175032 *
6 173607 *
7 172238 *
8 166790 *
SPECjbb2005 (from 4 to 8) 172788 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57183
2 143752
3 162585
4 176684 *
5 175995 *
6 174233 *
7 173612 *
8 167195 *
SPECjbb2005 (from 4 to 8) 173544 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54495
2 134846
3 161329
4 175832 *
5 173751 *
6 173703 *
7 171868 *
8 166645 *
SPECjbb2005 (from 4 to 8) 172360 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57555
2 138600
3 163466
4 179757 *
5 177985 *
6 177341 *
7 176534 *
8 170673 *
SPECjbb2005 (from 4 to 8) 176458 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

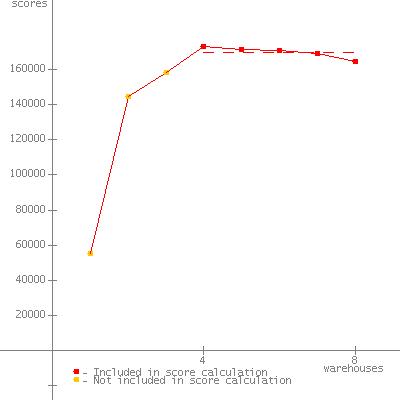

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55307
2 144818
3 158319
4 173281 *
5 171229 *
6 170804 *
7 169228 *
8 164637 *
SPECjbb2005 (from 4 to 8) 169836 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52607
2 136074
3 164945
4 176158 *
5 176088 *
6 174851 *
7 174136 *
8 167795 *
SPECjbb2005 (from 4 to 8) 173806 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 28, 2013

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 02-Oct-2013
