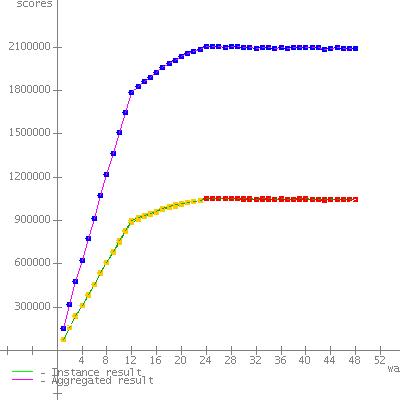

SPECjbb

SPECjbb2005		SPECjbb2005 bops = 2097188, SPECjbb2005 bops/JVM = 1048594
Hewlett-Packard Company ProLiant DL360p Gen8
Oracle Corporation Oracle Java Hotspot 64-bit Server VM on Windows (build 1.6.0_29-b11)

JVM run JVM Scores

1 1047524

2 1049664

SPECjbb2005 bops = 2097188, SPECjbb2005 bops/JVM = 1048594

Hardware

Hardware Vendor Hewlett-Packard Company

Vendor URL http://www.hp.com

Model ProLiant DL360p Gen8

Processor Intel Xeon E5-2697 v2 (Intel Turbo Boost Technology up to 3.50 GHz)

MHz 2700

# of Chips 2

# of Cores 24

# of Cores/Chip 12

HW Threading Enabled? Yes

Procs Avail to Java 48

Memory (MB) 131037

Memory Details 16 x 8 GB 2Rx4 PC3-14900R-13, ECC; slots 1, 2, 4, 5, 8, 9, 11 and 12 populated for each processor

Primary cache 32 KB I + 32 KB D on chip per core

Secondary cache 256 MB I+D on chip per core

Other cache 30 MB I+D on chip per chip

Filesystem NTFS

Disks 1 x 400 GB SAS SSD

Other hardware None

Software

Software Vendor Oracle Corporation

Vendor URL http://www.oracle.com

JVM Version Oracle Java Hotspot 64-bit Server VM on Windows (build 1.6.0_29-b11)

JVM Command Line start /NODE [0,1] /AFFINITY 0xFFFFFF \java\bin\java.exe -Xmx29g -Xms29g -Xmn27g -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=24 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy

JVM Initial Heap Memory (MB) 29696

JVM Maximum Heap Memory (MB) 29696

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\Program Files\Java\jre6\lib\alt-string.jar;
C:\Program Files\Java\jre6\lib\alt-rt.jar;
C:\Program Files\Java\jre6\lib\resources.jar;
C:\Program Files\Java\jre6\lib\rt.jar;
C:\Program Files\Java\jre6\lib\sunrsasign.jar;
C:\Program Files\Java\jre6\lib\jsse.jar;
C:\Program Files\Java\jre6\lib\jce.jar;
C:\Program Files\Java\jre6\lib\charsets.jar;
C:\Program Files\Java\jre6\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jre6\classes

OS Version Microsoft Windows Server 2008 R2 Enterprise SP1 (x64)

Other software None

Test Information

Tested by Hewlett-Packard Company

SPEC license # 3

Test location Houston, TX

Test date Oct 1, 2013

H/w available Sep-2013

JVM available Aug-2011

OS available Feb-2011

Other s/w available None

AOT Compilation

None

Tuning

"Lock pages in memory" enabled for benchmark user.
Used "start /NODE [0,1] /AFFINITY 0xFFFFFF"
Power Option set to High Performance in OS.

Notes

Parameter expected_peak_warehouse set to 24
BIOS Configuration:
HP Power Profile set to Maximum Peroformance
Collaborative Power Control set to Disabled
Dynamic Power Capping Functionality set to Disabled
Memory Power Savings Mode set to Maximum Performance
Thermal Configuration set Maxium Cooling
HW Prefetcher set to Disalbe
Adjacent Sector Prefetcher set to Disabled
DCU Streamer Prefetcher set to Disabled
Processor Power and Utlization Monitoring set to Disalbed
Memory Referesh set to 1x Refresh

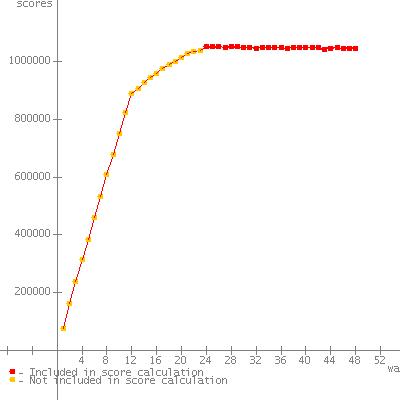

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	77929
2	162447
3	238420
4	313939
5	384099
6	459089
7	531145
8	607188
9	678670
10	750054
11	822111
12	890148
13	907205
14	927072
15	942962
16	957073
17	976274
18	990310
19	1000937
20	1014678
21	1026012
22	1034285
23	1038802
24	1050342	*
25	1051353	*
26	1052522	*
27	1049488	*
28	1050687	*
29	1051080	*
30	1047988	*
31	1049164	*
32	1044155	*
33	1048490	*
34	1049382	*
35	1046315	*
36	1048021	*
37	1044648	*
38	1046431	*
39	1047700	*
40	1048396	*
41	1046775	*
42	1046939	*
43	1042326	*
44	1044505	*
45	1046744	*
46	1046106	*
47	1044299	*
48	1044241	*
SPECjbb2005	(from 24 to 48)	1047524 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: Oct 1, 2013

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	75536
2	157161
3	240115
4	311848
5	391320
6	458382
7	541796
8	613258
9	684522
10	758736
11	828376
12	898496
13	918078
14	934727
15	948886
16	965650
17	982405
18	995101
19	1008118
20	1020349
21	1027773
22	1034774
23	1042345
24	1054669	*
25	1054879	*
26	1054644	*
27	1051458	*
28	1052822	*
29	1053480	*
30	1050247	*
31	1051257	*
32	1046331	*
33	1050243	*
34	1051085	*
35	1048258	*
36	1050134	*
37	1045277	*
38	1048296	*
39	1049931	*
40	1050019	*
41	1048661	*
42	1048237	*
43	1045173	*
44	1046646	*
45	1048902	*
46	1048387	*
47	1045739	*
48	1046833	*
SPECjbb2005	(from 24 to 48)	1049664 SPECjbb2005 bops

SPEC license # 3

Tested by: Hewlett-Packard Company

Test date: Oct 1, 2013
