Sugon Sugon I840-G25 (Intel Xeon E7-8890 v4) 211379 SPECjbb2015-MultiJVM max-jOPS
69227 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Sugon Test Sponsor: Sugon Test location: Beijing, CHN Test date: May 06, 2016
SPEC license #: 9046 Hardware Availability: May-2016 Software Availability: May-2016 Publication: Jun 06, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSugon
Vendor URLhttp://www.sugon.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSugon I840-G25
VendorSugon
Vendor URLhttp://www.sugon.com
AvailableMay-2016
ModelSugon I840-G25(Intel Xeon E7-8890 v4)
Form FactorSugon
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24-Core, 2.20GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk2x 1TB RAID 1
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)64 x 16GB
Memory Details2Rx4 PC4-2133P-R
# and type of Network Interface Cards (NICs)3x 1 Gbit NICs
Power Supply Quantity and Rating (W)3 x 550
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitnessn/a
NotesNone
Operating System os_1
NameNeoKyln Linux Advanced Server release 7Update2 (Potassium)
VendorChina Standard Software Company
Vendor URLhttp://www.cs2c.com.cn
Version3.10.0-327.el7.x86_64
AvailableMay-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u74
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 1.8.0_74
AvailableJan-2016
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning tuning
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • COD option in BIOS set as Enable
  • ulimit -s unlimited
  • SELINUX=disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g -XX:+UseParallelOldGC
Tuning numactl --cpunodebind=$(($gnum-1)) --localalloc
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:SurvivorRatio=14 -XX:TargetSurvivorRatio=95 -Xms29g -Xmx29g -Xmn27g -XX:ParallelGCThreads=24 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl --cpunodebind=$(($gnum-1)) --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g -XX:ParallelGCThreads=24 -XX:+UseParallelOldGC
Tuning numactl --cpunodebind=$(($gnum-1)) --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 209031 211379 213728 216077 218425
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 50496 57542 69285 81028 97469 69227
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2349 - / 2349 - / 2349 - / 2349 - / 2349 - / 2349
1000us 7046 / 9395 2349 / 4697 - / 2349 - / 2349 - / 2349 - / 2349
5000us 180847 / 183195 133874 / 136222 35230 / 37579 30533 / 32881 23487 / 25835 - / 2349
10000us 183195 / 185544 166755 / 169104 117433 / 119782 96295 / 98644 51671 / 49322 - / 2349
25000us 187893 / 190241 178498 / 180847 152663 / 155012 133874 / 136222 58716 / 56368 7046 / 9395
50000us 192590 / 194939 183195 / 185544 162058 / 164406 143268 / 145617 68111 / 70460 7046 / 9395
75000us 192590 / 194939 185544 / 187893 166755 / 169104 147966 / 150314 79854 / 82203 7046 / 9395
100000us 194939 / 197287 185544 / 187893 171452 / 173801 155012 / 157360 96295 / 98644 7046 / 9395
200000us 199636 / 201985 192590 / 194939 183195 / 185544 173801 / 176149 152663 / 155012 35230 / 9395
500000us 209031 / 211379 201985 / 204333 194939 / 197287 192590 / 194939 187893 / 190241 157360 / 152663
1000000us 211379 / - 209031 / 211379 204333 / 206682 201985 / 204333 201985 / 204333 190241 / 192590
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

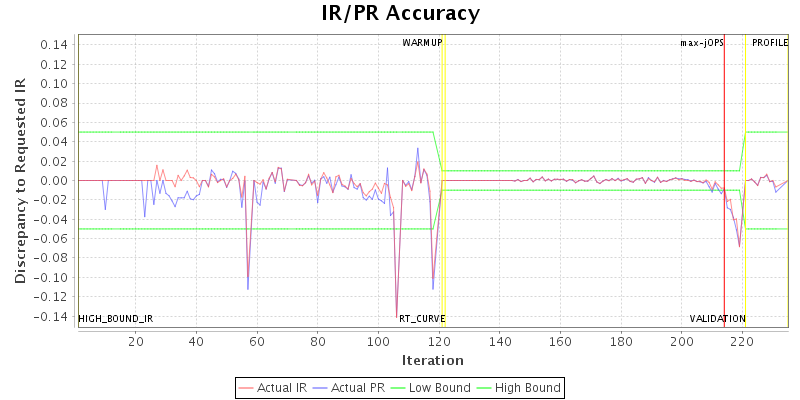

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 60000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 32
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.rtcurve.step 0.01 0.01
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.forkjoin.workers 192 {=384, Tier1=170, Tier2=60, Tier3=30}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 192 24
specjbb.run.datafile.dir . .
specjbb.time.server false false
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 234866 IR
High-bound (settled) is 227505 IR
