Hewlett Packard Enterprise ProLiant XL260a Gen9 58965 SPECjbb2015-MultiJVM max-jOPS
10961 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: November 25, 2016
SPEC license #: 3 Hardware Availability: Dec-2016 Software Availability: Nov-2016 Publication: Dec 21, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores72
Total Threads288
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant XL260a Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableDec-2016
ModelProLiant XL260a Gen9
Form FactorSingle-width slot
CPU NameIntel Xeon Phi 7290
CPU Characteristics72 Core, 1.5 GHz, 1024 KB L2 Cache (Turbo Boost Technology up to 1.7 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System72
Cores Per Chip72
Threads Per System288
Threads Per Core4
VersionU24 10/31/2016
CPU Frequency (MHz)1500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary CacheNone
Other CacheNone
Disk1 x 500 GB SSD
File SystemXFS
Memory Amount (GB)384
# and size of DIMM(s)6 x 64 GB
Memory Details64 GB 4Rx4 PC4-2400T-L
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)6 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureApollo a6000 Chassis
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.3
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-514
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u102
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_102
AvailableJul-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Hyper Threading=Enabled
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • On-Package High-Bandwidth Memory Mode=Cache
  • Cluster Model=Quadrant
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Refresh Rate=1x Refresh
  • Memory Pre-Failure Notification=Disabled
  • Memory Patrol Scrubbing=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms180g -Xmx180g -Xmn170g -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=144 -XX:MaxTenuringThreshold=15
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 58279 58965 59651 60336 61022
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 3771 12799 13427 14684 16627 10961
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 686 - / 686 - / 686 - / 686 - / 686 - / 686
1000us - / 686 - / 686 - / 686 - / 686 - / 686 - / 686
5000us 12342 / 9599 2743 / 3428 686 / 1371 - / 686 - / 686 - / 686
10000us 34282 / 34968 18512 / 19198 7542 / 8228 6171 / 6856 3428 / 4114 - / 686
25000us 38396 / 39081 34968 / 35653 28797 / 28111 23312 / 23997 17827 / 10285 - / 686
50000us 40453 / 41138 37025 / 37710 32911 / 30854 28797 / 28111 17827 / 10285 - / 686
75000us 47995 / 43881 38396 / 39081 34282 / 34968 31539 / 29483 17827 / 10285 12342 / 1371
100000us 47995 / 44567 39767 / 40453 35653 / 36339 34282 / 32225 17827 / 13027 14398 / 1371
200000us 53480 / 54166 43881 / 44567 39081 / 39767 38396 / 39081 28797 / 21255 17827 / 1371
500000us 57594 / 58279 54166 / 54851 50052 / 50737 47995 / 47309 41824 / 39767 31539 / 30854
1000000us 58279 / 58965 57594 / 58279 56222 / 56908 54851 / 55537 53480 / 54166 45252 / 43881
Probes jOPS / Total jOPS

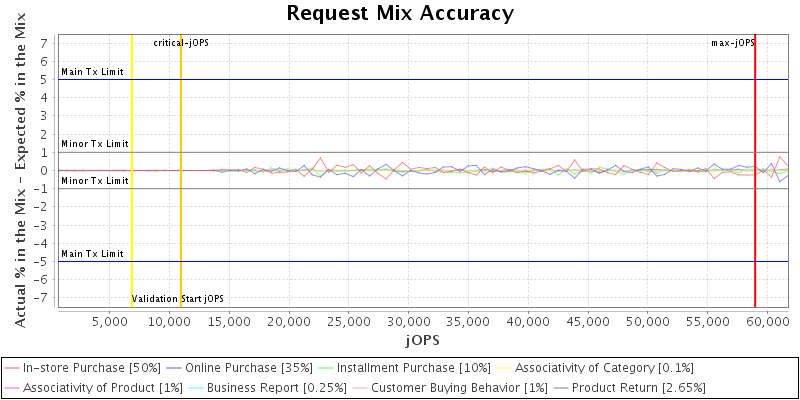

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.period 5000 50000
specjbb.forkjoin.workers 288 {Tier1=135, Tier2=67, Tier3=25}
specjbb.group.count 1 2
specjbb.heartbeat.period 10000 100000
specjbb.heartbeat.threshold 100000 1000000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 68564 IR
High-bound (settled) is 62495 IR
