Inspur Corporation Inspur NF8480M4 219406 SPECjbb2015-MultiJVM max-jOPS
37547 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Beijing, China Test date: Feb 7, 2017
SPEC license #: 3358 Hardware Availability: Jun-2016 Software Availability: Jan-2017 Publication: Mar 6, 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF8480M4
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableJun-2016
ModelInspur NF8480M4
Form Factor4U
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24-Core, 2.20GHz, 60MB L3 Cache(Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk1x 200GB SSD
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)96 x 16GB
Memory Details16 GB 2Rx4 PC4-2400T-R, running at 1600MHz
# and type of Network Interface Cards (NICs)Intel I350 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.2 (Maipo)
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u121
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_121
AvailableJan-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • Processor C1E Disabled
  • COD Enabled
  • Early Snoop Disabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • SELinux disabled
  • cpupower -c all frequency-set -g performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=24 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 216664 219406 222149 224892 227634
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 26054 31735 39310 45252 50737 37547
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2743 - / 2743 - / 2743 - / 2743 - / 2743 - / 2743
1000us 10970 / 13713 - / 2743 - / 2743 - / 2743 - / 2743 - / 2743
5000us 194723 / 191981 142614 / 145357 46624 / 49366 41139 / 43881 27426 / 2743 - / 2743
10000us 197466 / 200208 167297 / 170040 104218 / 106961 85020 / 87763 27426 / 24683 - / 2743
25000us 202951 / 205693 186495 / 189238 145357 / 148099 109703 / 112446 41139 / 24683 - / 2743
50000us 202951 / 205693 194723 / 197466 153584 / 156327 117931 / 120674 41139 / 35654 8228 / 5485
75000us 205693 / 208436 197466 / 200208 156327 / 159070 123416 / 126159 43881 / 46624 8228 / 5485
100000us 205693 / 208436 197466 / 200208 161812 / 164555 131644 / 134386 49366 / 52109 8228 / 5485
200000us 211179 / 213921 202951 / 205693 178268 / 181010 153584 / 156327 90505 / 93248 8228 / 5485
500000us 216664 / 219406 211179 / 213921 202951 / 205693 200208 / 202951 191981 / 194723 98733 / 5485
1000000us 219406 / - 216664 / 219406 211179 / 213921 211179 / 213921 208436 / 211179 186495 / 181010
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

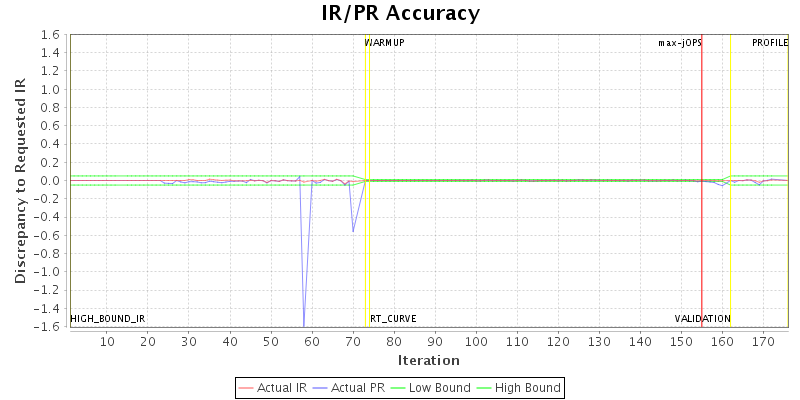

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.worker.pool.max 256 212
specjbb.forkjoin.workers 192 {Tier1=192, Tier2=64, Tier3=32}
specjbb.group.count 1 8
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 274258 IR
High-bound (settled) is 228682 IR
