Hewlett Packard Enterprise Synergy 660 Gen10 275906 SPECjbb2015-MultiJVM max-jOPS
227943 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: June 15, 2017
SPEC license #: 3 Hardware Availability: Jul-2017 Software Availability: Apr-2017 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSynergy 660 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJul-2017
ModelSynergy 660 Gen10
Form FactorFull-height Compute Module
CPU NameIntel Xeon Platinum 8180 CPU
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionI43 06/01/2017
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)3072
# and size of DIMM(s)48 x 64 GB
Memory Details64 GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)6 x 2650
Other HardwareNone
Cabinet/Housing/EnclosureSynergy 12000 Frame
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 7.3 (Maipo)
VendorRedHat
Vendor URLhttp://www.redhat.com/
Version3.10.0-514
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute (HPC)
  • Thermal Configuration=Maximum Cooling
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • tuned-adm profile=throughput performance
  • echo 15000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 1000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m

Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms735g -Xmx735g -Xmn681g -XX:SurvivorRatio=68 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+UseRTMLocking -XX:InlineSmallCode=10k

Tuning None
Notes

Used numactl to affinitize each Backend JVM to a NUMA node.

  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
  • numactl --cpunodebind=2 --membind=2
  • numactl --cpunodebind=3 --membind=3
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 269094 272500 275906 279312 282719
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 178828 232476 239410 246953 250359 227943
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3406 - / 3406 - / 3406 - / 3406 - / 3406 - / 3406
1000us 136250 / 3406 - / 3406 - / 3406 - / 3406 - / 3406 - / 3406
5000us 265687 / 269094 255469 / 258875 166906 / 170312 139656 / 143062 74937 / 68125 - / 3406
10000us 265687 / 269094 258875 / 262281 245250 / 248656 235031 / 238437 177125 / 180531 - / 3406
25000us 265687 / 269094 262281 / 265687 252062 / 255469 252062 / 255469 235031 / 224812 - / 3406
50000us 265687 / 269094 262281 / 265687 255469 / 258875 252062 / 255469 245250 / 224812 112406 / 10219
75000us 265687 / 269094 262281 / 265687 255469 / 258875 252062 / 255469 245250 / 248656 153281 / 20437
100000us 265687 / 269094 262281 / 265687 255469 / 258875 252062 / 255469 252062 / 248656 153281 / 20437
200000us 269094 / 272500 262281 / 265687 255469 / 258875 255469 / 258875 252062 / 255469 153281 / 37469
500000us 275906 / - 265687 / 269094 262281 / 265687 258875 / 262281 255469 / 258875 252062 / 255469
1000000us 275906 / - 275906 / - 265687 / 269094 265687 / 269094 262281 / 265687 255469 / 258875
Probes jOPS / Total jOPS

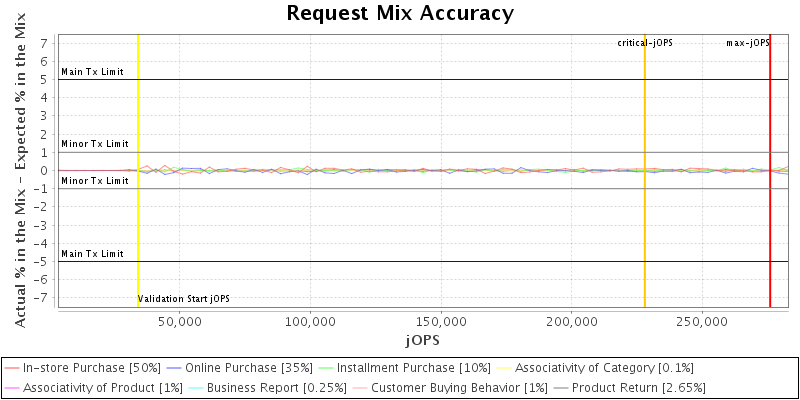

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 224 {Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 340625 IR
High-bound (settled) is 283921 IR
