Hewlett Packard Enterprise ProLiant DL380 Gen10 74086 SPECjbb2015-MultiJVM max-jOPS
62592 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: June 30, 2017
SPEC license #: 3 Hardware Availability: Jul-2017 Software Availability: Apr-2017 Publication: Fri Aug 4 11:08:36 EDT 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL380 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJul-2017
ModelProLiant DL380 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionU30 06/08/2017
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.3
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-514
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx3g -Xmn2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms725g -Xmx725g -Xmn672g -XX:SurvivorRatio=68 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300

Tuning None
Notes

Used numactl to affinitize each Backend JVM to NUMA node.

  • numactl --cpunodebind=0 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx3g -Xmn2g -XX:ParallelGCThreads=56
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 73234 74086 74937 75789 76640
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 48113 66847 66847 66847 66847 62592
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 852 - / 852 - / 852 - / 852 - / 852 - / 852
1000us 852 / 1703 - / 852 - / 852 - / 852 - / 852 - / 852
5000us 70679 / 71531 69828 / 70679 35766 / 36617 26398 / 27250 17031 / 15328 852 / 1703
10000us 70679 / 71531 69828 / 70679 66422 / 67273 60461 / 61312 48539 / 47687 2555 / 3406
25000us 70679 / 71531 69828 / 70679 68125 / 68976 68125 / 68976 66422 / 67273 7664 / 6812
50000us 70679 / 71531 69828 / 70679 69828 / 70679 68125 / 68976 66422 / 67273 34914 / 10219
75000us 70679 / 71531 69828 / 70679 69828 / 70679 68125 / 68976 66422 / 67273 34914 / 10219
100000us 70679 / 71531 69828 / 70679 69828 / 70679 68125 / 68976 66422 / 67273 34914 / 10219
200000us 71531 / 72383 70679 / 71531 69828 / 70679 68976 / 69828 68125 / 68976 52797 / 33211
500000us 74086 / - 71531 / 72383 69828 / 70679 69828 / 70679 68976 / 69828 67273 / 68125
1000000us 74086 / - 73234 / 74086 71531 / 72383 71531 / 72383 70679 / 71531 68976 / 69828

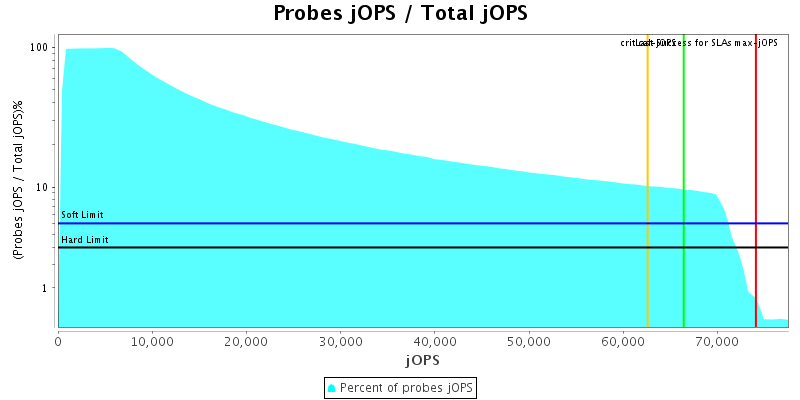

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.forkjoin.workers 56 {Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 85156 IR
High-bound (settled) is 77605 IR
