Hewlett Packard Enterprise ProLiant DL580 Gen10 343284 SPECjbb2015-MultiJVM max-jOPS
81793 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: October 06, 2017
SPEC license #: 3 Hardware Availability: Sep-2017 Software Availability: Jul-2017 Publication: Mon Nov 27 16:11:42 EST 2017
Benchmark Results Summary

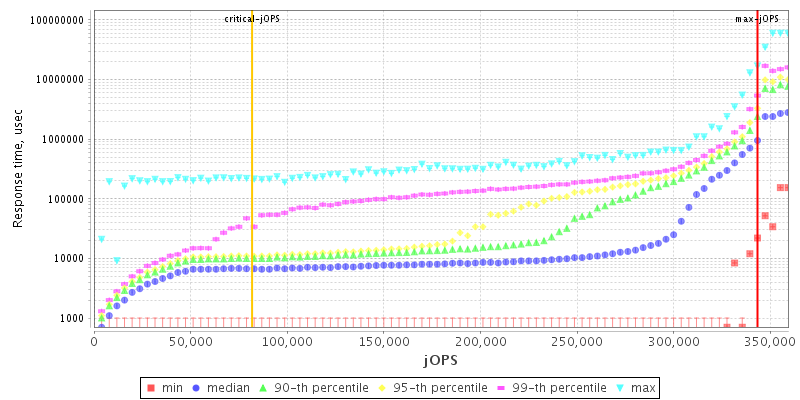

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL580 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableSep-2017
ModelProLiant DL580 Gen10
Form Factor4U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionU34 09/27/2017
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 800 GB SSD SAS
File SystemXFS
Memory Amount (GB)384
# and size of DIMM(s)48 x 8 GB
Memory Details8 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.4.73-5-default
AvailableJul-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u144
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Sub-NUMA Clustering=Enabled
  • Memory Patrol Scrubbing=Disabled
  • Process Jitter Control=Manual-tuned
  • Process Jitter Control Frequency=2900
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • systemctl stop systemd-update-utmp-runlevel.service
  • Added 'processor.max_cstate=1 intel_idle.max_cstate=0' to GRUB_CMDLINE_LINUX_DEFAULT
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms30g -Xmx30g -Xmn28g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:+UseRTMDeopt -XX:MaxGCPauseMillis=300 -XX:ThreadStackSize=1m

Tuning None
Notes

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-13,112-125 --membind=0
  • numactl --physcpubind=14-27,126-139 --membind=1
  • numactl --physcpubind=28-41,140-153 --membind=2
  • numactl --physcpubind=42-55,154-167 --membind=3
  • numactl --physcpubind=56-69,168-181 --membind=4
  • numactl --physcpubind=70-83,182-195 --membind=5
  • numactl --physcpubind=84-97,196-209 --membind=6
  • numactl --physcpubind=98-111,210-223 --membind=7
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to a physical core in a NUMA node.

  • numactl --physcpubind=0 --membind=0
  • numactl --physcpubind=14 --membind=1
  • numactl --physcpubind=28 --membind=2
  • numactl --physcpubind=42 --membind=3
  • numactl --physcpubind=56 --membind=4
  • numactl --physcpubind=70 --membind=5
  • numactl --physcpubind=84 --membind=6
  • numactl --physcpubind=98 --membind=7
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 339338 343284 347230 351175 355121
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 37485 65105 84834 116401 151913 81793
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3946 / 7892 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 11837 / 15783 3946 / 7892 3946 / 7892 - / 3946 - / 3946 - / 3946
5000us 291988 / 295934 35512 / 39458 23675 / 27621 23675 / 27621 19729 / 23675 - / 3946
10000us 303826 / 307772 244639 / 248585 90753 / 74970 47349 / 51295 35512 / 39458 11837 / 3946
25000us 315663 / 319609 299880 / 303826 236747 / 240693 193344 / 189398 63133 / 67078 11837 / 7892
50000us 315663 / 319609 303826 / 307772 248585 / 252531 201235 / 205181 82862 / 86807 11837 / 7892
75000us 319609 / 323555 307772 / 311717 260422 / 264368 220964 / 224910 114428 / 118374 11837 / 7892
100000us 327501 / 331446 307772 / 311717 272260 / 276205 232802 / 236747 149940 / 153886 11837 / 7892
200000us 331446 / 335392 315663 / 319609 299880 / 303826 284097 / 288043 256476 / 260422 98645 / 19729
500000us 343284 / - 331446 / 335392 319609 / 323555 315663 / 319609 311717 / 315663 276205 / 252531
1000000us 343284 / - 343284 / - 335392 / 339338 331446 / 335392 327501 / 331446 307772 / 311717

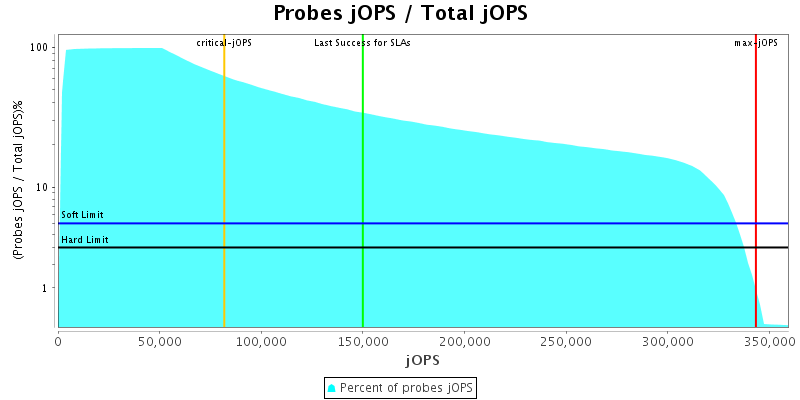

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 120
specjbb.forkjoin.workers 224 {Tier1=180, Tier2=60, Tier3=30}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 200000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 365753 IR
