Hewlett Packard Enterprise ProLiant DL385 Gen10 95016 SPECjbb2015-Composite max-jOPS
49855 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: December 30, 2017
SPEC license #: 3 Hardware Availability: Nov-2017 Software Availability: Oct-2017 Publication: Fri Feb 16 11:54:56 EST 2018
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL385 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2017
ModelProLiant DL385 Gen10
Form Factor2U Rack
CPU NameAMD EPYC 7601
CPU Characteristics32 Core, 2.20 GHz, 8MB L3 cache per 4 core (Turbo Boost Technology up to 3.2 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
VersionA40 10/06/2017
CPU Frequency (MHz)2200
Primary Cache64 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache8MB L3 cache per 4 core
Other CacheNone
Disk1 x 800 GB SSD SAS
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64G 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.4.73-5-default
AvailableSep-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u152
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_152
AvailableOct-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=General Throughput Compute
  • Thermal Configuration=Maximum Cooling
  • Processor Power and Utilization Monitoring=Disabled
  • Performance Determinism=Power Deterministic
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • systemctl stop systemd-update-utmp-runlevel.service
  • Added cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms530g -Xmx530g -Xmn500g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:CompileThreshold=1000 -XX:ParallelGCThreads=128
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 93995 95016 96038 97060 98081
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 34226 48700 52829 56745 61641 49855
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1022 - / 1022 - / 1022 - / 1022 - / 1022 - / 1022
1000us 7152 / 8173 1022 / 2043 - / 1022 - / 1022 - / 1022 - / 1022
5000us 89908 / 90930 72539 / 73561 26564 / 27585 19412 / 20434 14304 / 15325 - / 1022
10000us 92973 / 93995 78669 / 77648 49041 / 50062 42911 / 43932 33715 / 34737 2043 / 3065
25000us 92973 / 93995 90930 / 91951 79691 / 77648 72539 / 73561 54149 / 45976 21455 / 3065
50000us 93995 / 95016 92973 / 93995 85821 / 86843 79691 / 77648 69474 / 45976 25542 / 7152
75000us 93995 / 95016 92973 / 93995 89908 / 88886 82756 / 80713 69474 / 45976 25542 / 7152
100000us 93995 / 95016 92973 / 93995 89908 / 88886 85821 / 83778 69474 / 45976 25542 / 7152
200000us 95016 / - 92973 / 93995 92973 / 88886 89908 / 88886 82756 / 67431 46997 / 7152
500000us 95016 / - 95016 / - 92973 / 93995 92973 / 93995 92973 / 93995 69474 / 41889
1000000us 95016 / - 95016 / - 95016 / - 95016 / - 95016 / - 79691 / 76626

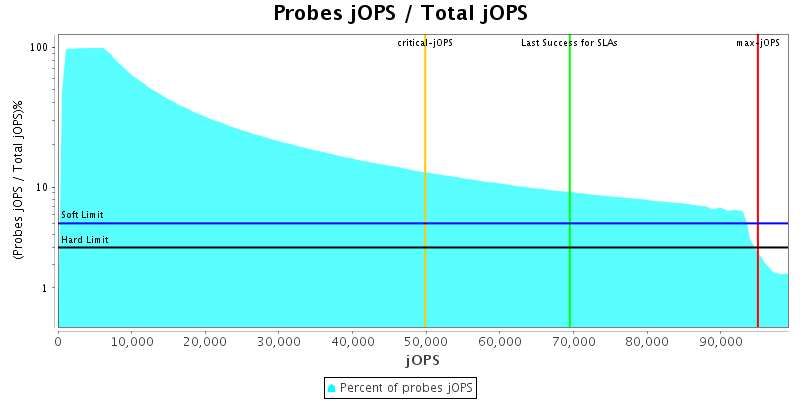

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 6000000
specjbb.comm.connect.timeouts.read 60000 6000000
specjbb.comm.connect.timeouts.write 60000 6000000
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 102168 IR
High-bound (settled) is 90677 IR
