Cisco Systems Cisco UCS C240 M5 171642 SPECjbb2015-MultiJVM max-jOPS
56027 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: March 12, 2019
SPEC license #: 9019 Hardware Availability: April-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C240 M5
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableApril-2019
ModelCisco UCS C240 M5
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28Cores, 2.70 GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionVersion 4.0.3.34
CPU Frequency (MHz)2700
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SSD SAS
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details768 GB(24 X 32GB 2Rx4 PC4-2933V)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttp://www.microsoft.com/
VersionVersion 10.0.17763 Build 17763
AvailableOctober 2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • CPU Performance set to Enterprise
  • Hyperthreading Enabled
  • IMC Interleave to one-way
  • SNC Enabled
  • Memory RAS configuration set to Maximum performance
  • Power Technology set to performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and add a new entry . Value Name: MaxUserPort Value Type: DWORD Value data: 65534
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15 -XX:AllocatePrefetchInstr=2 -XX:InlineSmallCode=10k -XX:+UseRTMLocking -XX:+UseRTMDeopt -XX:-UsePerfData
Tuning Affinitized each Backend JVM to a NUMA node
  • start /NODE [0-3]
  • Notes None
    JVM Instance jvm_TxInjector_1
    Parts of Benchmark TxInjector
    JVM Instance Description jvm_1
    Command Line -showversion -Xmn3584m -Xms4g -Xmx4g -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
    Tuning Affinitized each Tx Injector JVM to a NUMA node
  • start /NODE [0-3]
  • Notes None
    max-jOPS = jOPS passed before the First Failure
    Pass/Fail Pass Pass Fail Fail Fail
    jOPS 169669 171642 173615 175588 177561
    critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
    Response time percentile is 99-th
    SLA (us) 10000 25000 50000 75000 100000 Geomean
    jOPS 32552 44390 60173 73983 85821 56027
      Percentile
      10-th 50-th 90-th 95-th 99-th 100-th
    500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
    1000us 5919 / 7892 3946 / 5919 1973 / 3946 1973 / 3946 - / 1973 - / 1973
    5000us 126266 / 96672 45377 / 47350 21702 / 23675 19729 / 21702 15783 / 17756 - / 1973
    10000us 140076 / 138103 116401 / 88780 63133 / 55241 47350 / 49322 31566 / 33539 - / 1973
    25000us 144022 / 145995 134157 / 136130 108509 / 110482 92726 / 90753 43404 / 45377 3946 / 5919
    50000us 145995 / 147967 140076 / 142049 122320 / 124293 112455 / 114428 59187 / 61160 3946 / 5919
    75000us 147967 / 149940 142049 / 144022 128238 / 130211 116401 / 118374 72997 / 74970 3946 / 5919
    100000us 149940 / 151913 142049 / 144022 132184 / 134157 120347 / 122320 84835 / 86808 3946 / 5919
    200000us 153886 / 155859 147967 / 149940 140076 / 142049 138103 / 140076 126266 / 128238 74970 / 31566
    500000us 169669 / 171642 161778 / 163751 151913 / 153886 149940 / 151913 145995 / 147967 134157 / 128238
    1000000us 171642 / - 171642 / - 165724 / 167696 165724 / 163751 159805 / 153886 147967 / 149940
    Probes jOPS / Total jOPS

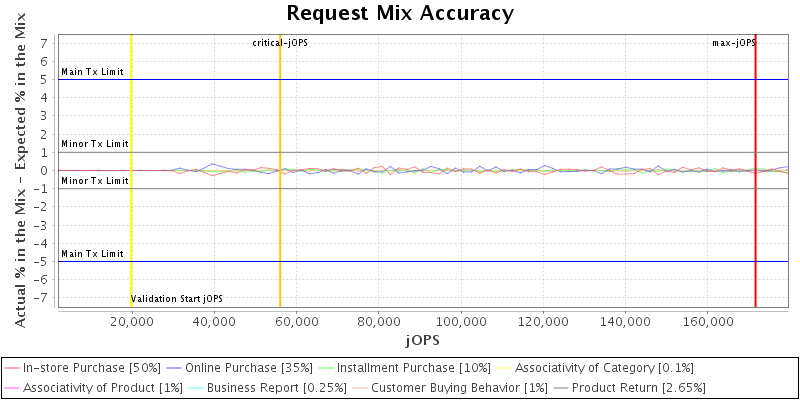

    Request Mix Accuracy
    Note
    (Actual % in the Mix - Expected % in the Mix) must be within:
    'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
    'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
    There were no non-critical failures in Response Time curve building
    Delay between status pings

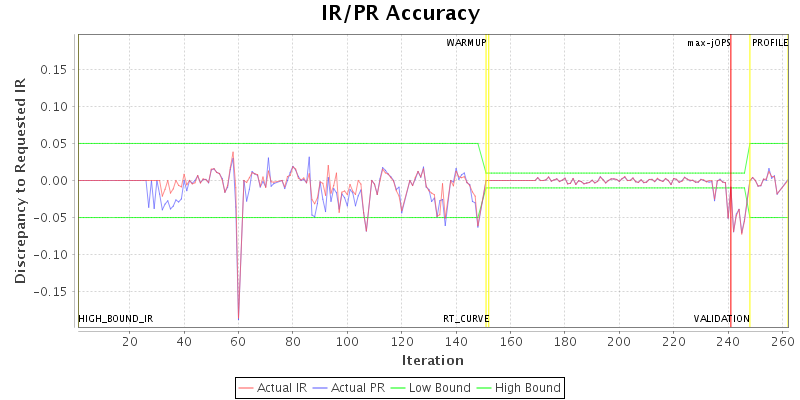

    IR/PR Accuracy
    This section lists properties only set by user
    Property Name Default Controller
    specjbb.comm.connect.client.pool.size 256 192
    specjbb.comm.connect.selector.runner.count 0 4
    specjbb.comm.connect.timeouts.connect 60000 800000
    specjbb.comm.connect.timeouts.read 60000 800000
    specjbb.comm.connect.timeouts.write 60000 800000
    specjbb.comm.connect.worker.pool.max 256 58
    specjbb.comm.connect.worker.pool.min 1 58
    specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64, service=64}
    specjbb.forkjoin.workers 56 {Tier1=160, Tier2=1, Tier3=28}
    specjbb.group.count 1 4
    specjbb.heartbeat.threshold 100000 600000
    specjbb.mapreducer.pool.size 56 4
    specjbb.txi.pergroup.count 1 1
    View table in csv format

    Level: COMPLIANCE
    Check Agent Result
    Check properties on compliance All PASSED

    Level: CORRECTNESS
    Check Agent Result
    Compare SM and HQ Inventory All PASSED
    High-bound (max attempted) is 197290 IR
    High-bound (settled) is 177734 IR
