SPECjbb2015 Report for jbb2015-20201020-00567 : 388135 max-jOPS ; 206258 critical-jOPS

SUT Description

Hardware hw_1
Name	Superdome Flex 280
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2020
Model	Superdome Flex 280
Form Factor	5U Rack
CPU Name	Intel Xeon Platinum 8380H CPU
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	1.0.140
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 1 TB 7200 RPM SATA
File System	XFS
Memory Amount (GB)	3072
# and size of DIMM(s)	24 x 128 GB
Memory Details	128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	4 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	April-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 15
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 15
Available	Sep-2020
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL:http://bugs.openjdk.java.net/secure/Dashboard.jspa/
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Sub-NUMA Clustering=Enabled Memory Patrol Scrubbing=Disabled Snoop Throttle Configuration=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	SELinux=disabled tuned-adm profile=throughput-performance ulimit -n 655350 echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms30g -Xmx30g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:+UseRTMDeopt -XX:UseAVX=0 -XX:LoopUnrollLimit=100 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2
Tuning	Used numactl to affinitize each Backend JVM to each NUMA node numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1 numactl --cpunodebind=2 --membind=2 numactl --cpunodebind=3 --membind=3 numactl --cpunodebind=4 --membind=4 numactl --cpunodebind=5 --membind=5 numactl --cpunodebind=6 --membind=6 numactl --cpunodebind=7 --membind=7
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	Used numactl to affinitize each Transaction Injector JVM to each NUMA node numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1 numactl --cpunodebind=2 --membind=2 numactl --cpunodebind=3 --membind=3 numactl --cpunodebind=4 --membind=4 numactl --cpunodebind=5 --membind=5 numactl --cpunodebind=6 --membind=6 numactl --cpunodebind=7 --membind=7
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	383401	388135	392868	397601	402335

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	139633	168034	215367	257967	286367	206258

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 4733	- / 4733	- / 4733	- / 4733	- / 4733	- / 4733
1000us	28400 / 33133	4733 / 9467	- / 4733	- / 4733	- / 4733	- / 4733
5000us	355001 / 359735	317134 / 321868	227201 / 231934	123067 / 127800	66267 / 71000	4733 / 9467
10000us	355001 / 359735	326601 / 331334	269801 / 274534	227201 / 231934	137267 / 142000	4733 / 9467
25000us	359735 / 364468	340801 / 345535	307668 / 312401	284001 / 288734	165667 / 170401	4733 / 9467
50000us	364468 / 369201	345535 / 350268	317134 / 321868	298201 / 302934	213001 / 217734	4733 / 9467
75000us	364468 / 369201	350268 / 355001	321868 / 326601	307668 / 312401	255601 / 260334	4733 / 9467
100000us	364468 / 369201	355001 / 359735	326601 / 331334	317134 / 321868	284001 / 288734	123067 / 9467
200000us	373935 / 378668	359735 / 364468	345535 / 350268	336068 / 340801	317134 / 321868	250868 / 170401
500000us	388135 / -	373935 / 378668	364468 / 369201	359735 / 364468	355001 / 359735	326601 / 312401
1000000us	388135 / -	388135 / -	378668 / 383401	378668 / 383401	373935 / 378668	359735 / 364468

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

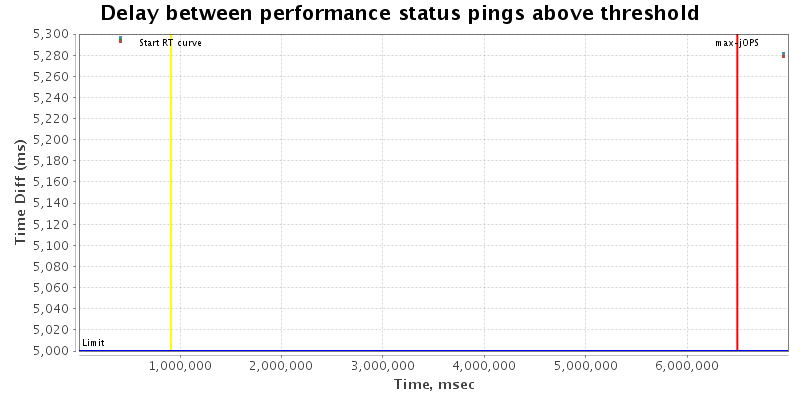

Delay between performance status pings during RT Curve (Response-Throughput Curve)

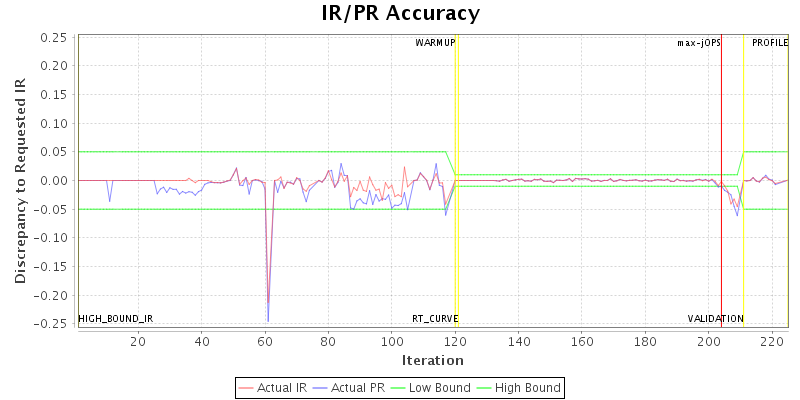

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	80
specjbb.customerDriver.threads	64	{probe=64, saturate=64}
specjbb.forkjoin.workers	224	{Tier1=210, Tier2=70, Tier3=28}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	224	28
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 473335 IR

High-bound (settled) is 409370 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise Superdome Flex 280	388135 SPECjbb2015-MultiJVM max-jOPS 206258 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Fort Collins, Colorado	Test date: October 16, 2020
SPEC license #: 3	Hardware Availability: Nov-2020	Software Availability: Sep-2020	Publication: Fri Nov 6 14:33:41 EST 2020
